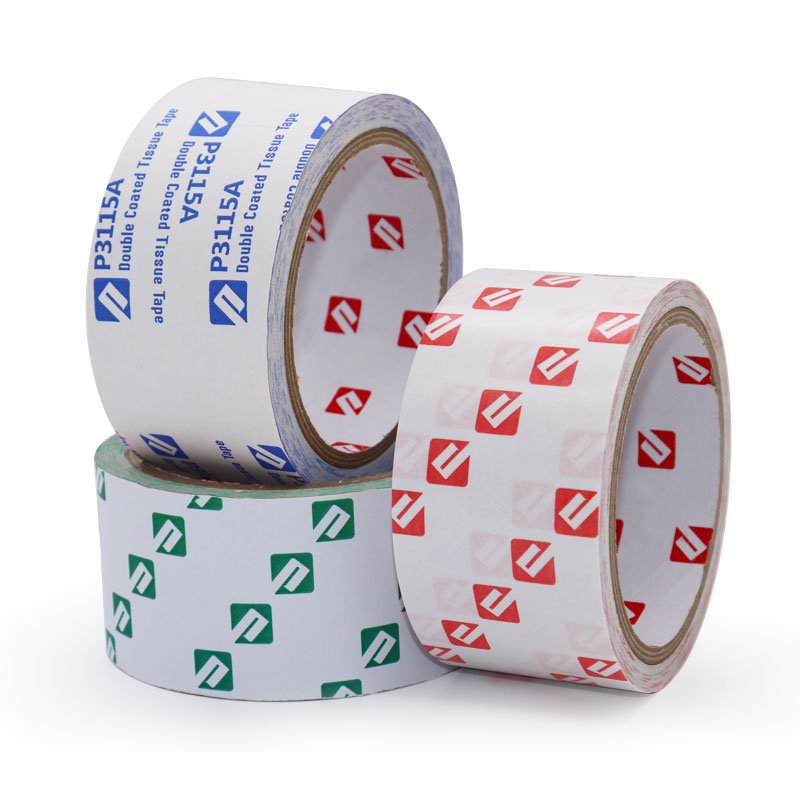

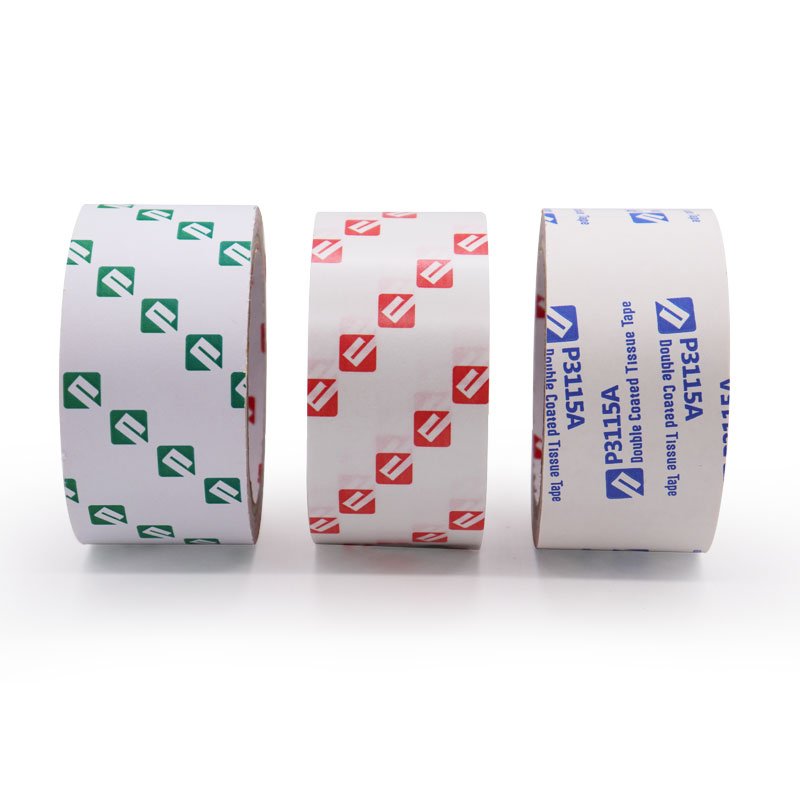

High Strength Tissue Double Sided Tape

Double Sided Tissue Tape is an industrial adhesive tape made of cotton paper as the base material, evenly coated with high-performance acrylic pressure-sensitive adhesive on both sides, and then compounded with release paper. It has anti-rebound (better than other Double-Sided Tapes, especially suitable for sticking on curved surfaces), anti-warping, high temperature resistance, strong stickiness, and strong adhesion to various material surfaces.

Request A Quote

application

1. Bonding of rubber strips and plastics in the rubber and plastic industry.

2. It is suitable for bonding nameplates, buttons, foot pads, refrigerator evaporators and control panels.

3. Bonding of low surface energy PP and PE plastic home appliance display boards.

4. Stamping metal signage.

5. Bonding and fixing the heating wire of the smart rice cooker.

6. Bonding and fixing of speaker nets of TV and computer speakers.

7. Foam sealing and pasting of EPDM and PU foam.

8. Paste the cotton blanket on the top of the car.

9. Paste the back panel of the upper cover of the printer.

10. In the paper industry, manual splicing process, super rolling process, resin coating process and roll changing joint.

11. Temporary fixation for computerized embroidery.

12. Paper box pasting for general ornaments, temporarily fixing handicrafts.

Property

Product Code

Color Total Thickness [um] Backing Adhesive Initial Tack[mm] 180°Peel Strength [N/inch] Retentivity
[hour]
Long-Term Temperature Resistance
[℃]
Short-Term Temperature Resistance
[℃]
P3105H Translucent 50 Tissue Acrylic ≤100 ≥9 24 80 120
P3110H Translucent 100 Tissue Acrylic ≤100 ≥11 24 80 120
P3112H Translucent 120 Tissue Acrylic ≤100 ≥13 24 80 120
P3114H Translucent 140 Tissue Acrylic ≤100 ≥15 24 80 120
P3116H Translucent 160 Tissue Acrylic ≤100 ≥16 24 80 120
P3110B Black 100 Tissue Acrylic ≤100 ≥11 24 80 120
P3112B Black 120 Tissue Acrylic ≤100 ≥13 24 80 120
P3114B Black 140 Tissue Acrylic ≤100 ≥15 24 80 120
P3116B Black 160 Tissue Acrylic ≤100 ≥16 24 80 120
P3112N Translucent 120 Tissue Acrylic ≤100 ≥12 24 120 150
P3114N Translucent 140 Tissue Acrylic ≤100 ≥14 24 120 150
P3116N Translucent 160 Tissue Acrylic ≤100 ≥15 24 120 150
P3110 Translucent 100 Tissue Acrylic ≤100 ≥11 24 40 60
P3112 Translucent 120 Tissue Acrylic ≤100 ≥13 24 40 60
P3114 Translucent 140 Tissue Acrylic ≤100 ≥14 24 40 60
P3116 Translucent 160 Tissue Acrylic ≤100 ≥15 24 40 60
