Release Date: 2023-11-21

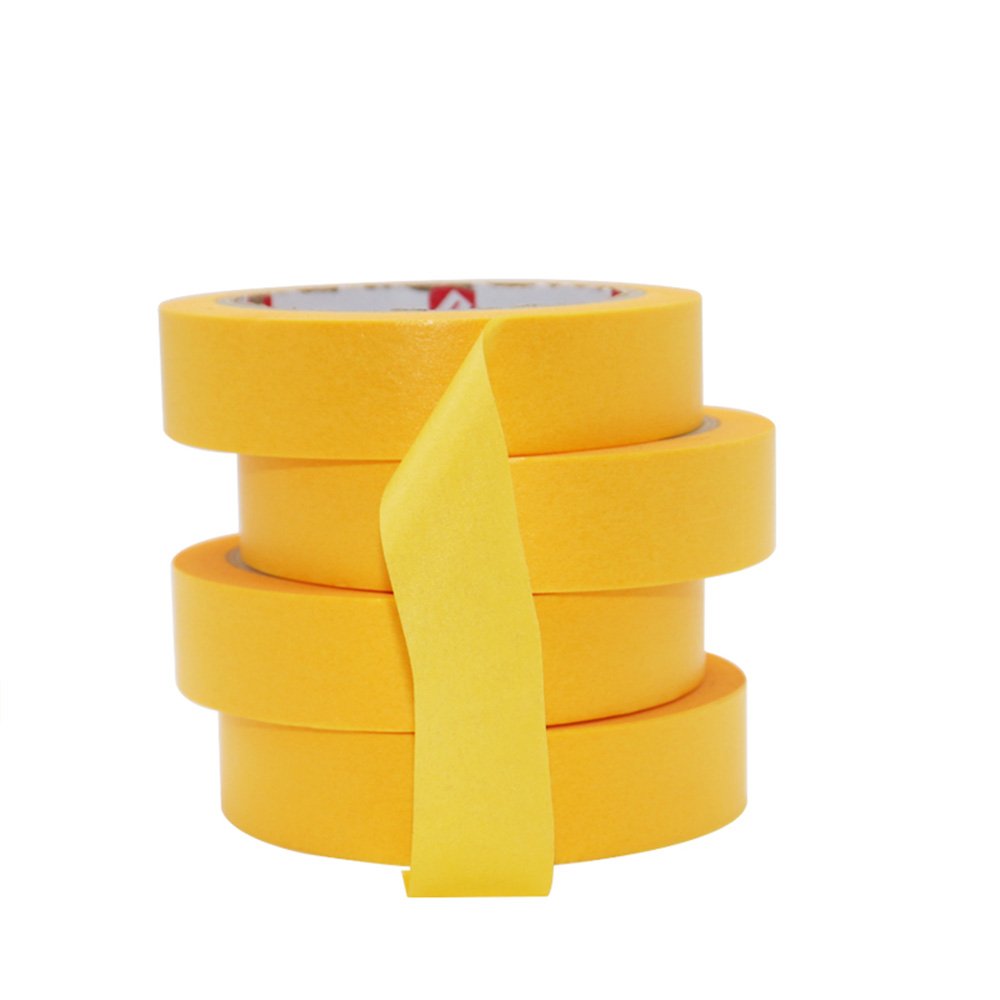

Automotive painting solution: Masking Tape Series

Product Description

In the field of car detailing and restoration, the continuous evolution of technology is not only changing the design concept of vehicle appearance, but also shaping the method of maintenance and restoration. In this cutting-edge technology wave, an eye-catching tool is quickly emerging - automotive spray masking tape. This is not only a simple masking tool, but also an innovation that combines technology and practicality. Its temperature-resistant and waterproof properties make it play an important role in the spray painting process, and in the field of car repair and beauty, this technology is gradually becoming an industry benchmark.

In this article, we’ll take a closer look at the technical makeup and application areas of this automotive paint masking tape. From its temperature resistance to waterproof properties to its application in different scenarios for spray paint masking, we will comprehensively analyze how this technology can provide more sophisticated and efficient solutions for automotive exterior design and repair work. Follow us into the wonderful world of technology and discover how it is changing the face of car detailing and restoration.

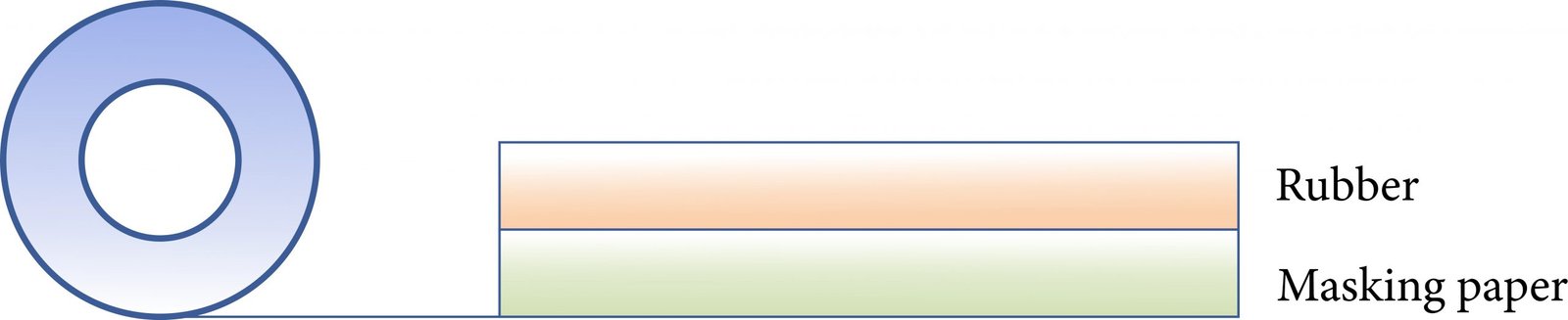

Product structure

masking tape

Main Use

  1. Car spray paint masking (local repair, medium range repair, large range repair)
  2. Car spray paint masking (entry level)
  3. Automotive spray paint masking (water grinding, water-soluble spray painting operations)

masking tape

Product Features



  1. Tear off without leaving any glue residue
  2. Excellent fit
  3. Hand tear is easy to break
  4. Excellent waterproof masking use
  5. Suitable for solvent-based paints
  6. Good adhesion to steel, rubber and glass



masking tape



Typical performance

Test items P1770 P1772 P1775 P1771 P1780
color White/Yellow White/Yellow White/Yellow White/Yellow White/Yellow
Type of glue Rubber Rubber Rubber Rubber Rubber
Base material Masking paper Masking paper Masking paper Masking paper Masking paper
Total thickness 0.128mm 0.13mm 0.137mm 0.14mm 0.145mm
Peel strength180°) 6.8N/25MM 7 N/25MM 7.7N/25MM 8N/25MM 8.3N/25MM
Tensile strength 80N/25MM 80N/25MM 80N/25MM 80N/25MM 80N/25MM
elongation 9% 9% 9% 10% 10%
Temperature resistance 80℃/30min 80℃/30min 80℃/30min 95℃/30min 95℃/30min



Test items P1731 P1730 P1723 P1728
color Dark yellow Dark yellow Yellow Yellow
Type of glue Rubber Rubber Rubber Rubber
Base material Masking paper  Masking paper  Masking paper Masking paper
Total thickness 0.16mm 0.16mm 0.145mm 0.15mm
Peel strength180°) 7.5N/25MM 7.5N/25MM 7.5N/25MM 8.5N/25MM
Tensile strength 65N/25MM 65N/25MM 75N/25MM 85N/25MM
elongation 7% 7% 8-10% 8-10%
Temperature resistance 80℃/30min 80℃/30min 90℃/30min 100℃/30min



high temperature Series

Test items P1709 P1709G P1716 P1717N P1717F
color Yellow Green Yellow Yellow light yellow
Type of glue Rubber Rubber Rubber Rubber Rubber
Base material Masking paper Masking paper Masking paper Masking paper Masking paper
Total thickness 0.155mm 0.16mm 0.16mm 0.17mm 0.17mm
Peel strength180°) 9N/25MM 9N/25MM 7.5N/25MM 8.5N/25MM 9N/25MM
Tensile strength 80N/25MM 90N/25MM 75N/25MM 75N/25MM 85N/25MM
elongation 10% 10-12% 7% 9-13% 8%
Temperature resistance 120℃/30min 130℃/30min 150℃/30min 150℃/30min 170℃/40min



Waterproof series

Test items P1713AY P1713A P1713AL
color Sun yellow Orange Light orange
Type of glue Rubber Rubber Rubber
Base material Plain paper  Plain paper  Plain paper
Total thickness 0.13mm 0.13mm 0.13mm
Peel strength180°) 7N/25MM 7N/25MM 7N/25MM
Tensile strength 80N/25MM 80N/25MM 80N/25MM
elongation 9% 9% 9%
Temperature resistance 100℃/30min 100℃/30min 100℃/30min
Features water proof water proof water proof
