Thermally Conductive Transfer Tape

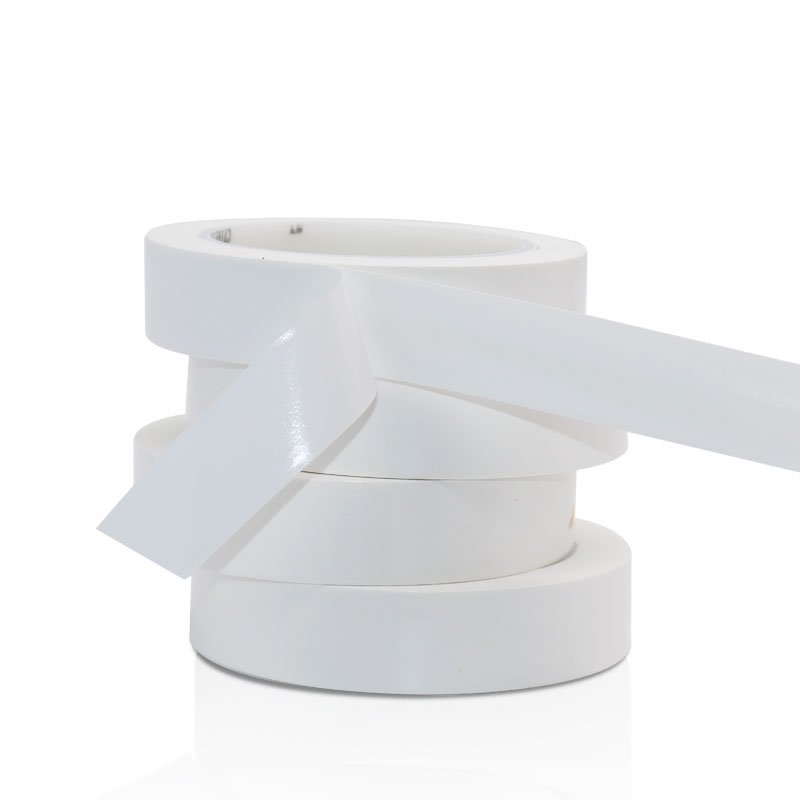

Thermally Conductive Transfer Tape is a white adhesive film made of special high-performance acrylic pressure-sensitive adhesive, and then covered with a release film. It has the characteristics of high thermal conductivity, high insulation, excellent flexibility, conformability, and good initial adhesion.

Request A Quote

The Latest products

PEVA anti-slip tape for bathroom

Washi Masking Tape for painting

Ethylene-propylene self-adhesive tape Replacement 3m23

Night light PVC Grip Tape Anti Slip Stairs Outdoor

PEVA Non Slip Tape Bathtub Stickers Flower

Customizable (die-cut graphics) white PEVA rubber anti-slip tape

application

1. Fix the CPU and heat sink or heat sink.
2. Fix the LED strip, substrate and frame.
3. Fix the electronic components and heat sink.

Property

Property
Product Code Technical Parameters	P8105	P8110	P8115	P8120	P8125	P8130	P8138	P8140	P8150
Color	White	White	White	White	White	White	White	White	White
Total Thickness[mm]	0.05	0.1	0.15	0.2	0.25	0.3	0.38	0.4	0.5
Adhesive	Acrylic
180°Peel Strength[N/inch]	12	12	12	15	15	18	18	18	18
Initial Adhesion[#]	2	3	4	4	4	4	4	4	4
Retentivity [hour]	48
Thermal Conductivity[W/mk]	0.3～0.8
Long-Term Temperature Resistance[℃]	80
Short-Term Temperature Resistance[℃]	120
