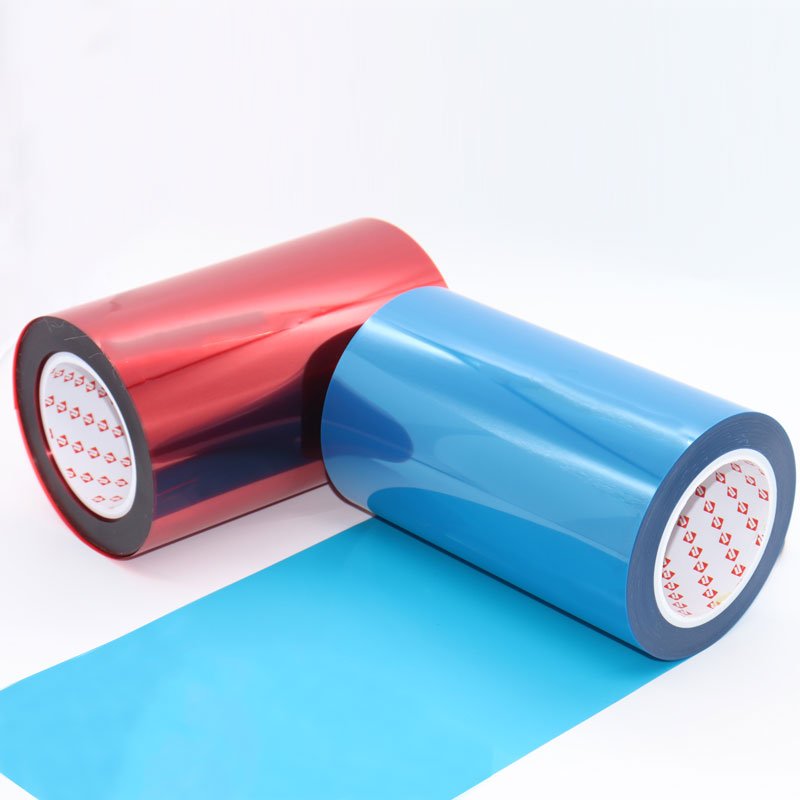

Single Side Acrylic PET Protective Film

Single Side Acrylic PET Protective Film uses PET as carrier and coated with a high-performance acrylic pressure-sensitive adhesive. It has good weather resistance, good heat resistance, acid and alkali resistance and can be adhered to a variety of material surfaces.

Request A Quote

application

1. Surface protection during product transportation.
2. Protection of all kinds of lenses and screen engineering.
3. Protection of plastic parts such as plastic cases and keyboards.
4. Die-cutting carrier and transfer of various films and tapes and waste discharge.
5. Different viscosity of protective film, can be used as a support carrier for different thickness of foam die-cutting.
6.Temporary transfer and fixing of electronic products.

Property

Property
 Product Code
Technical Parameters
P4000A1 P4000A3 P4000A5 P4000A8 P4000A12 P4000A18 P4000A30 P4000A45
Color Transparent/White/Blue/Black/Red/Green/Matte(Customization)
 Total Thickness[mm] 0.028~0.110 0.028~0.110 0.028~0.110 0.028~0.110 0.028~0.110 0.028~0.110 0.028~0.110 0.028~0.110
Backing Thickness[mm] 0.025/0.038/0.05/0.075
Backing[mm] PET PET PET PET PET PET PET PET
Adhesive Acrylic Acrylic Acrylic Acrylic Acrylic Acrylic Acrylic Acrylic
180°Peel Strength[g/inch] 1~3 3~5 5~8 8~12 12~18 18~30 30~45 45~65
Tensile Strength[N/inch] ≥120 ≥120 ≥120 ≥120 ≥120 ≥120 ≥120 ≥120
Elongation At Break[%] ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70
Long-Term Temperature  Resistance[℃] 120 120 120 120 120 120 120 120
Short-Term Temperature  Resistance[℃] 150 150 150 150 150 150 150 150
