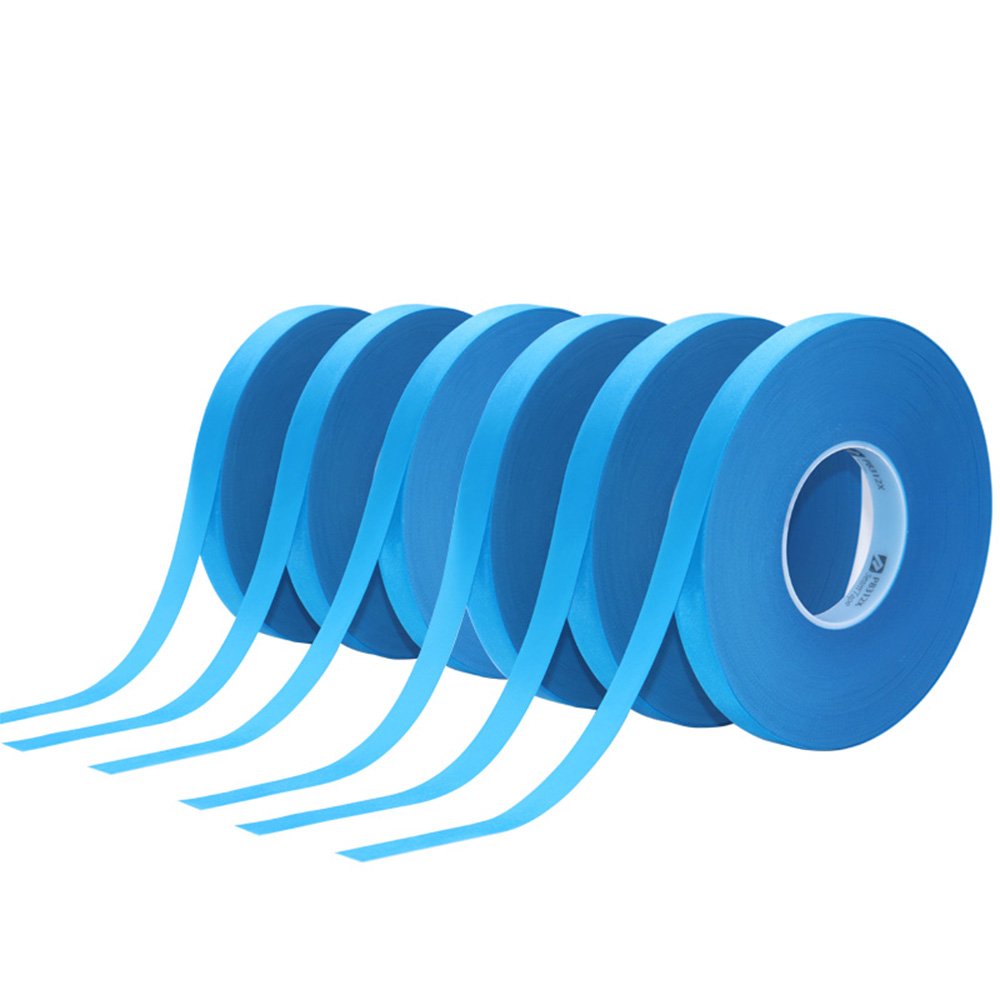

Protective Clothing Tape

The P8300 series is a protective adhesive strip based on a combination of fabric fabric/EVA film and coated with high performance hot melt adhesive. It has the softness and comfort required for garments, low temperature hot melt sealing, waterproof and leak-proof, excellent weather resistance, strong adhesive sealing, effective waterproof, dustproof, anti-bacterial, fast lamination and high temperature resistance.

Request A Quote


Non-woven PP+PE/TPU coated fabrics with needle seam sealing; various medical protection and general isolation clothing such as anti-bacterial infection series


Product Code
Technical Parameters
P8316E P8312Z P8312X
Color Blue Blue Blue
 Total Thickness[mm] 0.16 0.12 0.12
Backing PEVA Straight Grain Fabric Twill Fabric
Adhesive Hot Melt Hot Melt Hot Melt
Tensile Strength[N/inch] 18/7.2 170/68 190/76
Elongation At Break[%] 225 30 40
Process Parameters Heaters Temperature[℃] 240~280 250~320 250~320
Speed[m/min] 10 10 10
Pressure[kg/c㎡] 1.0~1.2 1.0~1.2 1.0~1.2
