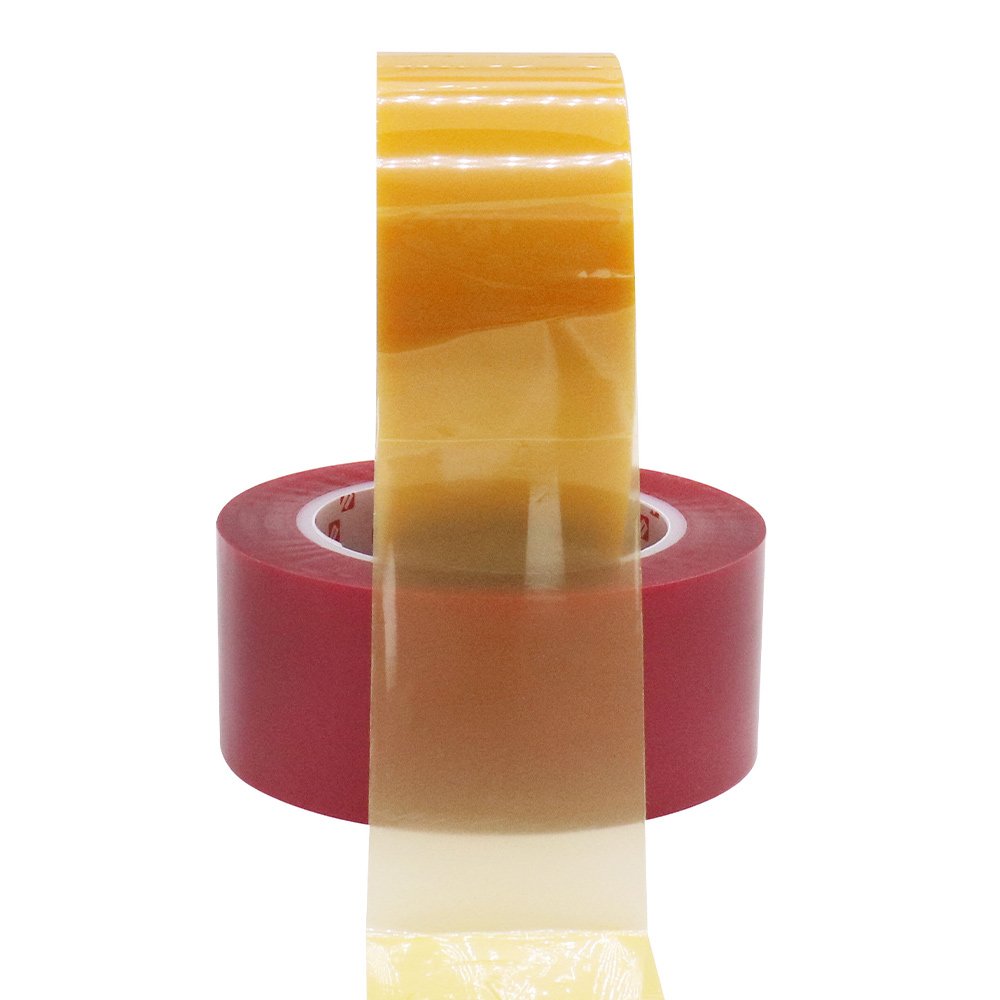

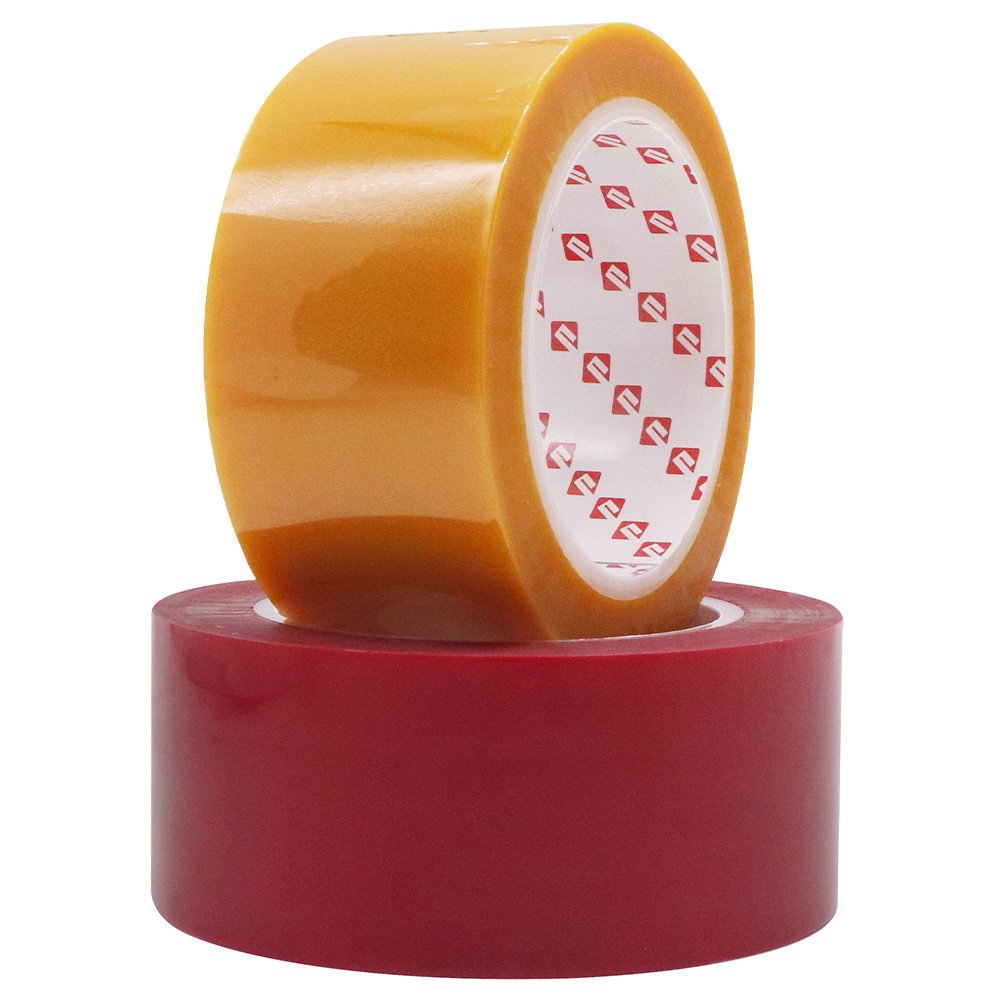

PET splicing tape

PET splicing tape is made of special transparent PET as the base material. The surface of the base material has been specially treated, and one side is coated with a high-temperature-resistant special splicing adhesive. It has the characteristics of high temperature resistance, good resistance to chemical solvents, high adhesion, softness and conformability. It can be connected under high temperature and high speed operation and is not easy to break. It can withstand high temperatures of 200 degrees, has good viscosity, high tensile strength, strong shear resistance and chemical resistance. Solvent.

Request A Quote

application

1.Electronics and electrical industry: used to insulate and protect wires, cables and other electronic components

2.Packaging industry: PET splicing tape is used to seal and secure packaging materials to ensure safety during product transportation.

3.LED encapsulation protection

4.Automotive industry: used to bundle and protect automotive wiring harnesses and other components to ensure their stability under high temperatures and harsh environments

5.Construction and Decoration: In some construction applications, PET splicing tape is used to secure and protect materials from moisture and dust intrusion

Property

Test items Test method P0308S P0308BA P0309RA
Color Visual inspection Red/Yellow Blue Red
Type of glue - Silicone adhesive Silicone adhesive Silicone adhesive
Base material - 36um 36um 25um
Base material ASTM D-3652 44um 44um 65um
Total thickness ASTM D-3652 80±5um 80um 90um
Peel strength180°) GB/T 2792 8-10N 8-10N 8-10N
Sticky Displacement GB/T 4851 ≤0.1 ≤0.1 ≤0.1
Tackiness GB/T 4852 ≥20 ≥20 ≥20
Temperature resistance GB∕T 32368-2015 220 220 220
width - 1050mm 500mm 500mm
length - 66m 66m 66m

description

Product Features

1.High temperature resistance, aging resistance, chemical resistance

2.Good electrical insulation

3.Remove glue without residue

Specification data

  • Data name
    Relese date Click to download
