Nomex Paper Tape

Nomex paper tape is made of aramid paper as the base material and coated with flame retardant acrylic adhesive. It is fire resistant, flame retardant, high temperature resistant, has high Tensile Strength and good insulation properties.

Request A Quote

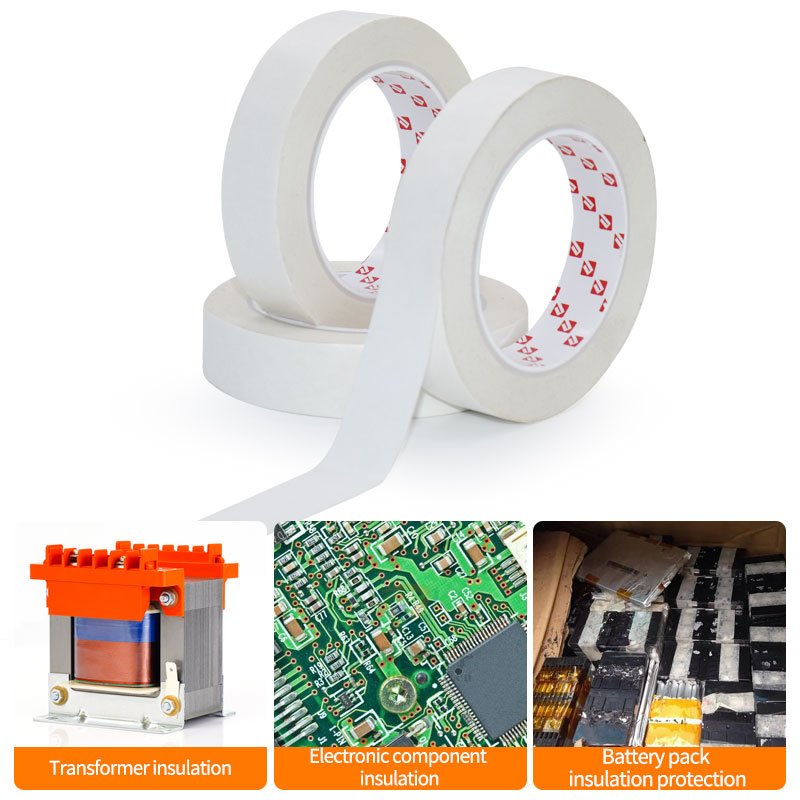

1. Insulation of transformers, motors and other electronic components in the sandwich.
2.Mobile phone accessories insulation and fire retardant and lithium manganese battery insulation wrapping protection between power battery pack cells.


 Product Code
Technical Parameters
P9809 P9813
Color White White
Total Thickness [mm] 0.09 0.13
Backing Thickness[mm] 0.05 0.08
Backing Aramid Paper Aramid Paper
Adhesive Acrylic Acrylic
180°Peel Strength[N/inch] ≥10 ≥10
Tensile Strength[N/10mm] MD≥39
Elongation At Break[%] MD≥9
Breakdown Voltage[V] ≥850 ≥1650
Long-Term Temperature Resistance[℃] 150 150
Short-Term Temperature Resistance[℃] 180 180


Introduction to Nomex Paper Tape
Nomex Paper Tape is a high-performance insulation material made of aramid polymer fibers. It has unique physical and chemical properties that make it excellent in electrical insulation, heat resistance, chemical corrosion resistance, etc. Nomex Paper Tape is widely used in the electrical and electronic industries, becoming a key component of many electrical equipment and electronic products.

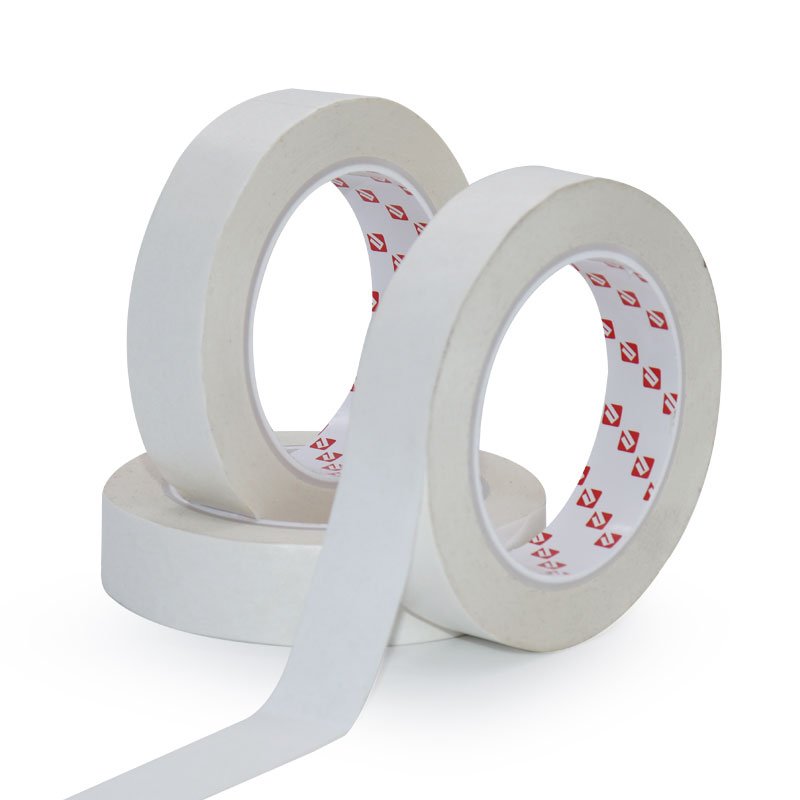

Nomex Paper Tape

Nomex Paper Tape Features:
1. Excellent electrical properties: Nomex Paper Tape has extremely high dielectric strength and can withstand high voltage without being prone to breakdown, ensuring the stable operation of electrical equipment.

2. Excellent thermal stability: The paper tape can maintain its stable performance in high temperature environments. Even when continuously exposed to high temperatures, it will not melt, flow or ignite, providing good heat resistance for electrical equipment. Protect.

3. Good mechanical properties: Nomex Paper Tape has high mechanical strength and toughness, and can resist tearing and wear, ensuring its reliability in complex working environments.

4. Excellent chemical stability: The paper tape has good resistance to most solvents and is not easily corroded by chemicals such as acids and alkalis, extending its service life.

5. Comply with flame-resistance requirements: Nomex Paper Tape complies with specific flame-resistance standards and can maintain a certain stability in fires, providing additional safety protection for electrical equipment.

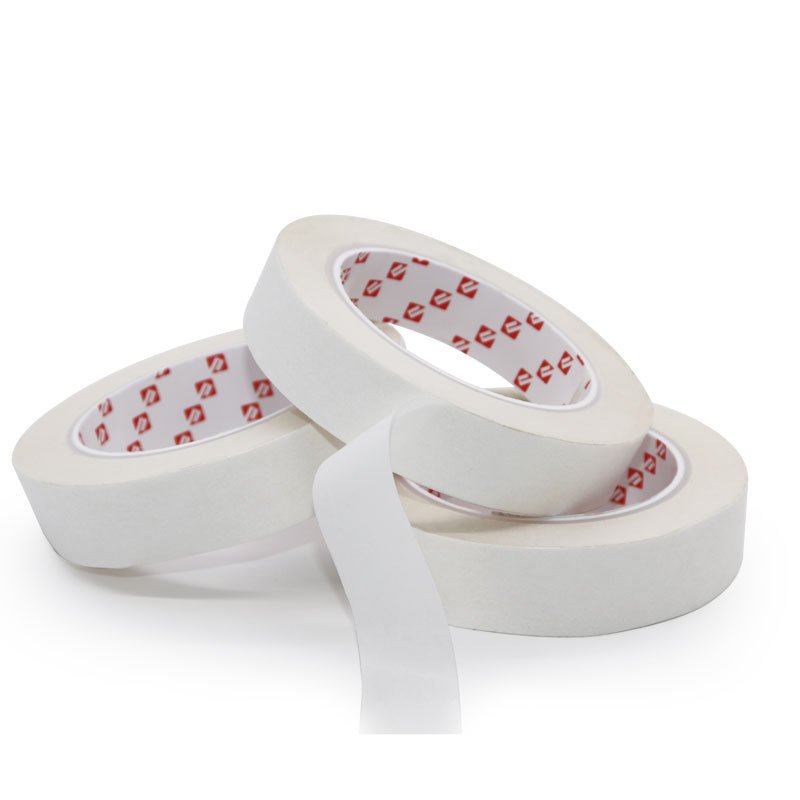

Nomex Paper Tape

Nomex Paper Tape is widely used in many fields due to its excellent performance:
1. Motors and transformers: In motors and transformers, Nomex Paper Tape is used as an insulating material to ensure electrical isolation between electrical components, prevent current leakage and short circuits, and ensure the normal operation of the equipment.

2. Automotive and aerospace: In the automotive and aerospace fields, Nomex Paper Tape is used for battery insulation, engine electrical systems and electrical wiring of aerospace vehicles to provide excellent electrical and thermal protection.

3. Household appliances and electronic products: In household appliances and electronic products, Nomex Paper Tape is used for insulation of circuit boards, lines and other parts to prevent electrical faults and improve product safety and reliability.

4. Communications and computers: In the field of communications equipment and computers, Nomex Paper Tape is used for electrical connections of cable insulation, interface equipment, printers and other components to ensure the stability of data transmission and the safety of equipment.
2. Energy and industrial equipment: In the energy field and industrial equipment, Nomex Paper Tape is used for the insulation of power transmission lines, cable joints and distribution equipment to improve energy transmission efficiency and the reliability of industrial equipment.

Nomex Paper Tape

Nomex Paper Tape Regular Sizes:
2.Other customization

Nomex Paper Tape regular colors:
Nomex Paper Tape is usually in natural, white color, which is the natural color of the paper tape. This color not only meets the general requirements of electrical insulation materials, but also has good visual recognition.
