Mylar Tape

Mylar Tape is made of polyester film coated with a high-performance acrylic pressure-sensitive adhesive. It has excellent insulating properties, flame retardant, solvent resistant and high temperature resistant.

Request A Quote

application

1.Wrapping and wrapping of capacitors and electric coils.
2.Transformer, motor motor insulation wrapping.
3.Electrical and electronic insulation, high-temperature resistant adhesion.
4.High voltage isolation of main board circuit of switching power supply.
5. Wrapping between the protection plate and the core in soft pack lithium batteries.

Property

Property
 Product Code
Technical Parameters
P1603 P1605 P16055 P1606 P1608 P1611

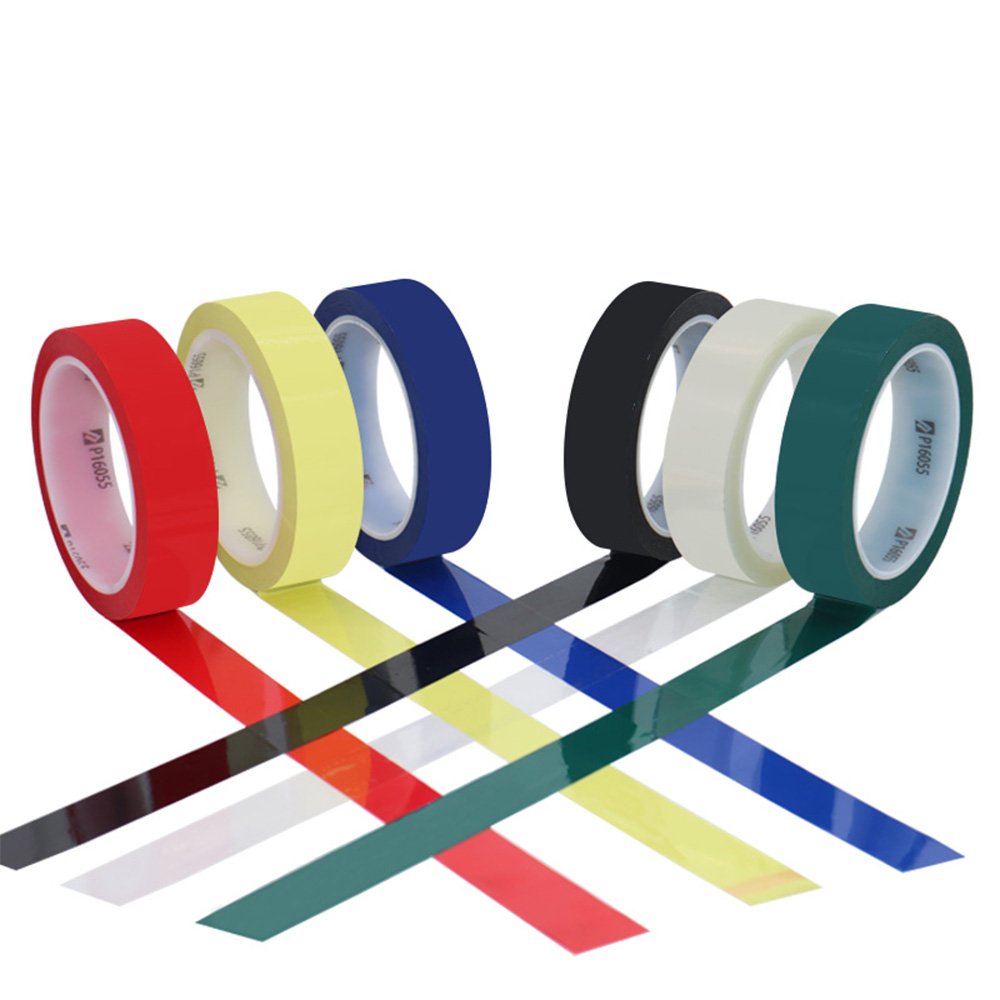

Color Transparent, Green, Red, Blue, Black, White, Light Yellow, Dark Yellow
 Total Thickness[mm] 0.03 0.052 0.055 0.06 0.08 0.11
Backing Thickness[mm] 0.02 0.025 0.025 0.025 0.05 0.025
Backing PET PET PET PET PET PET
Initial Adhesion[#] ≥3 ≥3 ≥3 ≥3 ≥3 ≥3
180°Peel Strength[N/inch] 4-6 6-8 6-8 6-8 6-8 6-8
Breakdown Voltage[KV] ≤3 ≥3 ≥3 ≥3 ≥3 ≥3
Tensile Strength[N/inch] 60 87.5 90 90 225 60
Elongation At Break[%] 70 70 70 70 70 70
Long-Term Temperature Resistance[℃] 120 120 120 120 120 120
Short-Term Temperature Resistance[℃] 150 150 150 150 150 150
Flame Retardant Grade UL510 UL510 UL510 UL510 UL510 UL510

description

Mylar Tape insulation tape, as a powerful assistant in the electronic and electrical industry, provides all-round protection for your cables with its excellent electrical properties and strong insulation capabilities. Whether it is simple fixing, bundling, or complex insulation protection, Mylar Tape can easily handle it and ensure the stable operation of electronic equipment.

Features of Mylar tape
1. Excellent temperature resistance: It can maintain stable performance in a wide temperature range and maintain excellent insulation effect regardless of high temperature or low temperature environment.
2. Strong aging resistance: After special treatment, the tape has excellent anti-aging properties and is not easy to deform or crack after long-term use, ensuring long-term reliability.
3. The material is soft and easy to wrap: The tape material is soft and easy to wrap, and can easily handle various complex wire harness structures to achieve fast and precise fixing and insulation.
4. High strength and good electrical characteristics: It has high strength and good electrical characteristics, which can effectively prevent the risk of electrical short circuit and electric shock, and provide safety guarantee for your equipment.

Mylar Tape insulation tape is widely used in the following fields:
Automobile circuit: used for fixing, bundling and insulation protection of automobile internal wiring harness to ensure the stability and safety of automobile circuits.
Communication equipment: Used at the cable connections of communication equipment to provide strong insulation protection to prevent signal interference and electrical faults.
Home appliances: Used to fix and insulate the internal circuits of home appliances to ensure the normal operation of home appliances and extend their service life.
Electronic product manufacturing: In the production process of electronic products, it is used to fix and insulate circuit boards to improve product reliability and safety.
Aerospace: In the aerospace field, cables are fixed and insulated with high precision to ensure stable operation of the aircraft's electrical system.
Medical equipment: Used to fix and insulate internal circuits of medical equipment to ensure the electrical safety of medical equipment and prevent electrical faults from causing harm to patients.

Mylar Tape
Teach you how to use mylar tape
1. Clean the surface of the wire harness to ensure there is no oil, water stains and other impurities.
2. Tear off one end of the tape and cut it to the required length.
3. Place the tape tightly on the surface of the wire harness and press gently to ensure that the tape and wire harness are fully attached.
4. As needed, it can be wound or stacked in multiple layers to enhance the insulation effect.

Precautions when using mylar tape
1. Do not use on wet or greasy surfaces to avoid affecting the adhesiveness of the tape.
2. Avoid exposing the tape to high temperature or direct sunlight for a long time to avoid affecting its performance.
3. During use, please pay attention to safety and avoid dangerous situations such as electric shock.

Discover our versatile Mylar Tape, available in a range of sizes and colors to meet your exact needs. Choose from widths spanning from a narrow 1/4 inch (6.35 mm) to a generous 4 inches (101.6 mm) or more, ensuring precise coverage for any application. Our rolls come in varying lengths, providing flexibility for projects of any scale.

Opt for the classic reflective silver option, ideal for sealing, insulating, and repairing tasks where light and heat reflection are paramount. For a transparent solution that seamlessly blends with surfaces while offering protective qualities, our clear Mylar tape is the perfect choice, commonly used in laminating, sealing, and crafting endeavors.

Additionally, our Mylar tape is available in an array of vibrant colors, including gold, black, red, blue, and green, among others. Whether you require a specific aesthetic or need color-coded identification, we have you covered.



Specification data

  • Data name
    Relese date Click to download
