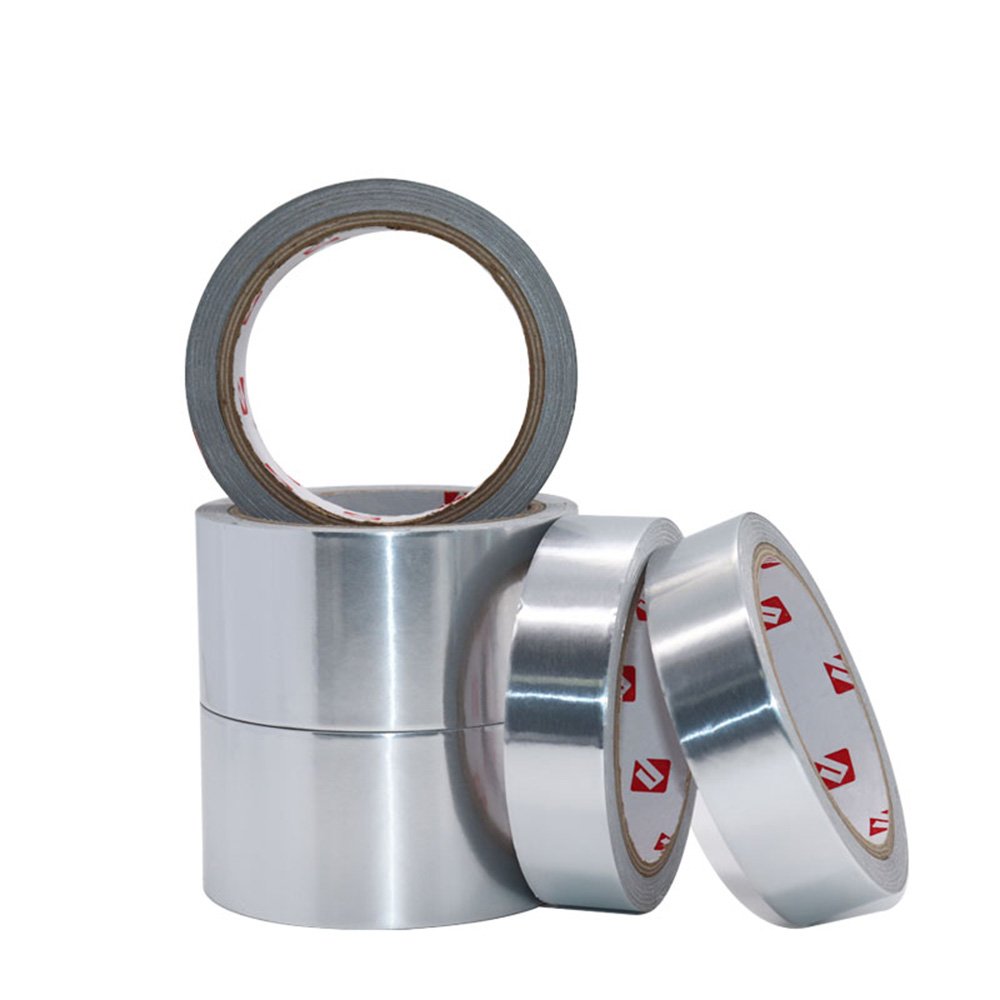

Mylar Aluminium Foil Tape

P0900Series is based on high performance mylar aluminium foil,Mylar aluminium foil tape coated with conductive Acrylic,It has a high Tensile Strength, non-creaseable, high peel strength, good conductivity, temperature resistance, shading, shielding, dimensional stability

Request A Quote


Packaging for the Wiring cable industry, the Thermal insulation material industry, the automotive insulation industry, the pharmaceutical industry, the air-conditioning hose equipment industry, the electronic battery industry.


Product Code
Technical Parameters
P0905 P09055 P0907 P0908 P0909 P0912
Color Silver White/Black
 Total Thickness[mm] 0.05 0.055 0.07 0.08 0.09 0.12
Backing Thickness[mm] 0.02 0.025 0.038 0.05 0.05 0.075
Backing Mylar Aluminium Foil
Adhesive Acrylic
180°Peel Strength[N/inch] 10(4) 12(4.8) 12(4.8) 12(4.8) 12(4.8) 15(6)
Retentivity[hour] 12 12 12 12 12 24
Surface Resistance[mΩ] 50
Long-Term Temperature Resistance[℃] 80
Short-Term Temperature Resistance[℃] 120


Specification data
