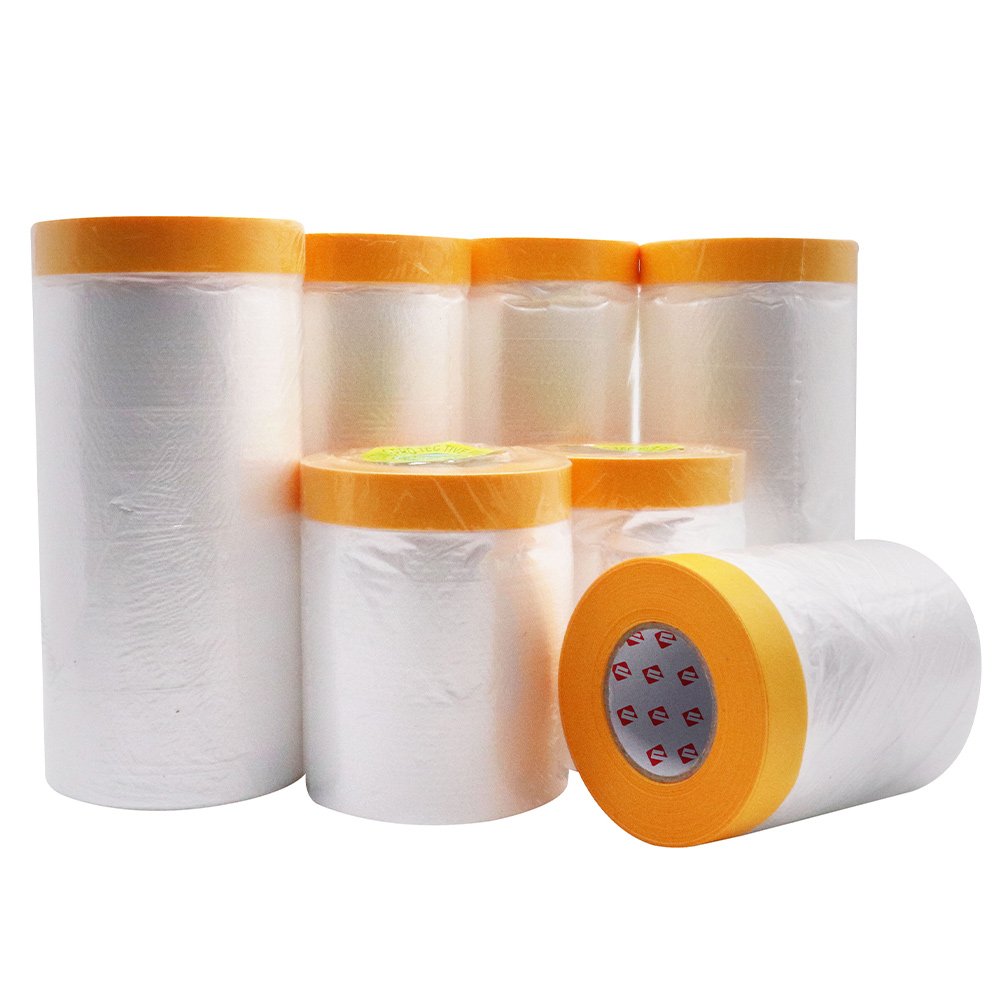

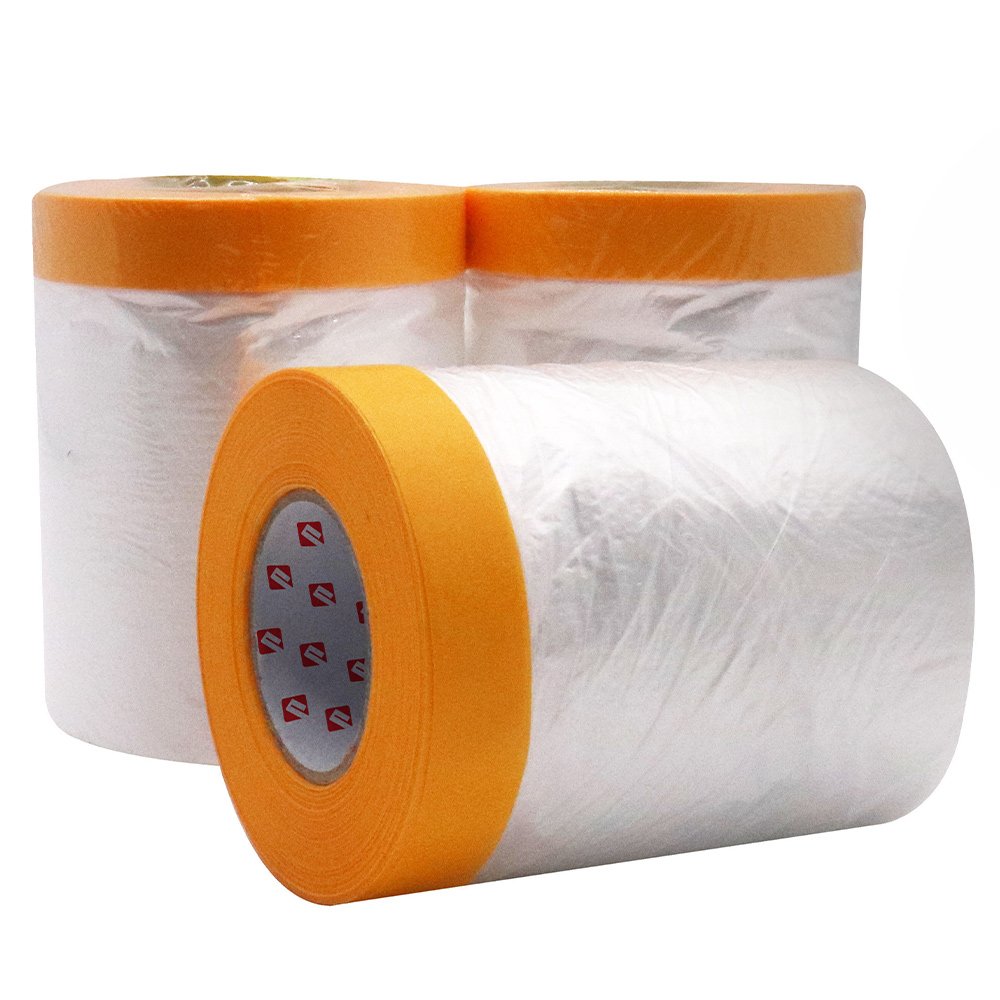

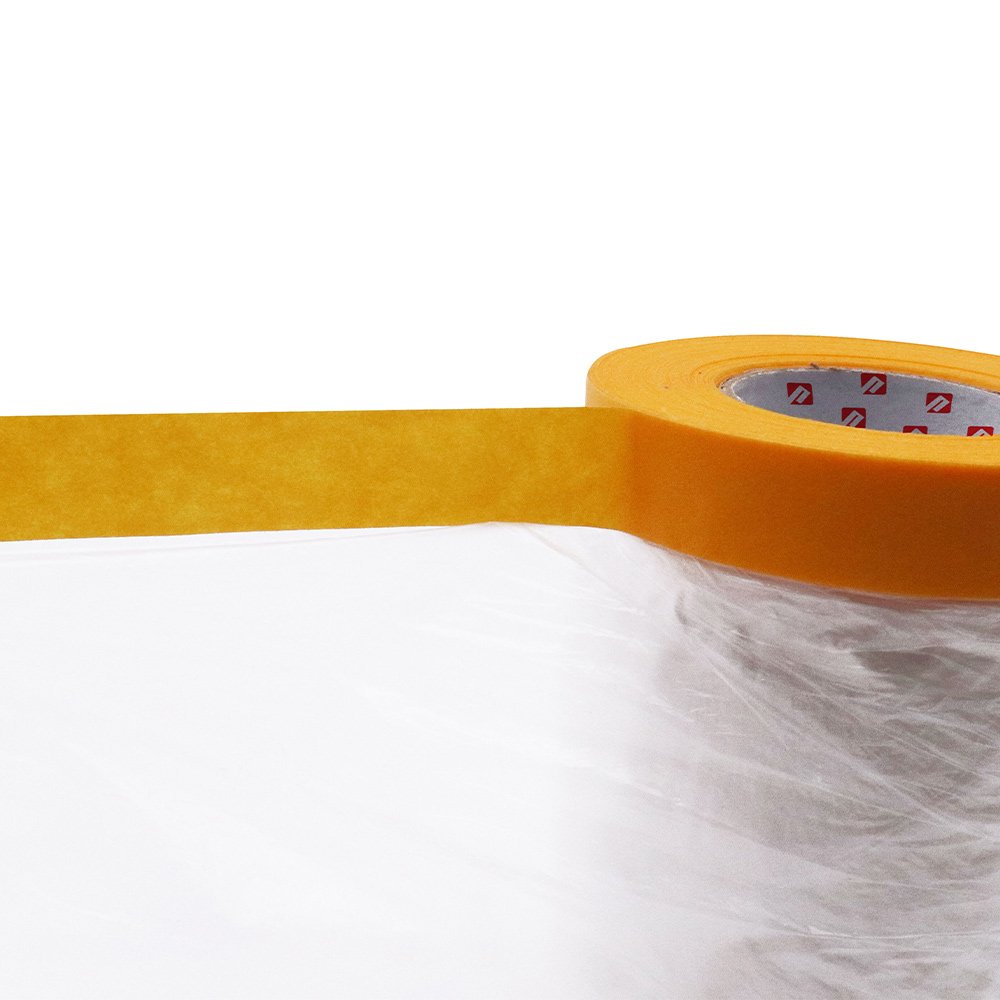

Masking tape protective film

Masking protective film is made of PE film/washiashi paper as the substrate, compounded with pressure-sensitive adhesive on the top. Mainly used for automobiles, ships, trains, cabs, furniture, and other products, such as paint spraying masking blocking paint, masking paint and upholstery, the product is divided into two kinds of high-temperature and room temperature (according to the product manufacturing process after spraying paint baking temperature environment is different). Effectively improve the efficiency of production, saving labor to improve the previous use of waste newspaper blocking paint will seep paint phenomenon.

Request A Quote

application

1.Spray paint protection against paint bleed through.

2.Interior fit-outs to ensure the quality and aesthetics of the renovations.

3.Efficient Production and Cost Savings.

4.Has temperature resistance.

Property

Test items Typical value Unit Test method
PE film thickness  60 um GB/T 7125-2014
Total Tape Thickness 100 um GB/T 7125-2014
Tensile Strengths 60 N/25mm GB/T 30776-2014
Elongation at break 6 % GB/T 30776-2014
Iitial tack 8↑ Seel ball number GB/T 4852-2002
Tckiness 5↑ H GB/T 4851-2014
Ahesive force Bginning period 4.5↑ N/25mm GB/T2792-2014
      Pst-stabilization 3.5↑ N/25mm GB/T2792-2014
Hat resistance 120 °C/H --
Glue Type Acrylic Pressure Sensitive Water Adhesive

description

Product Features

Good seal against solvent penetration and peeling.

ESD & Dust Resistant, High Temperature Resistant , high adhesion.

Increased efficiency and cost savings, environmental safety.

Easy to peel without residual adhesive, enhanced marking and aesthetics.



Product specifications

1.55cm*25m

2.110cm*25m

3.150cm*25m

4.Other customization

Specification data

  • Data name
    Relese date Click to download
