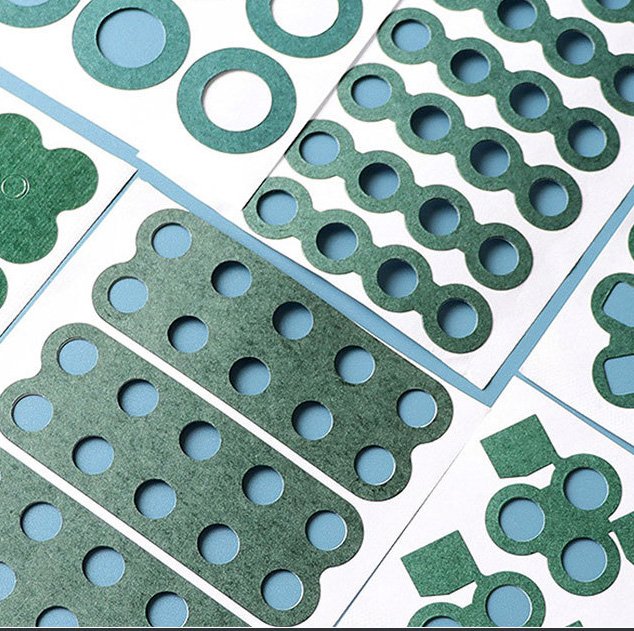

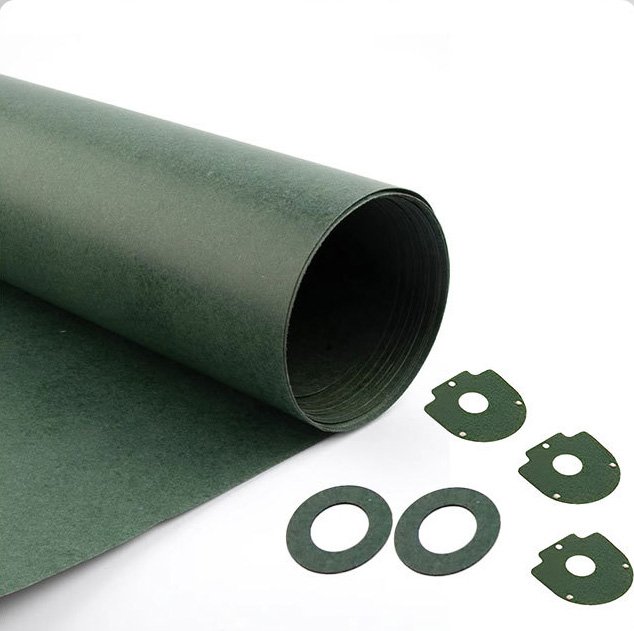

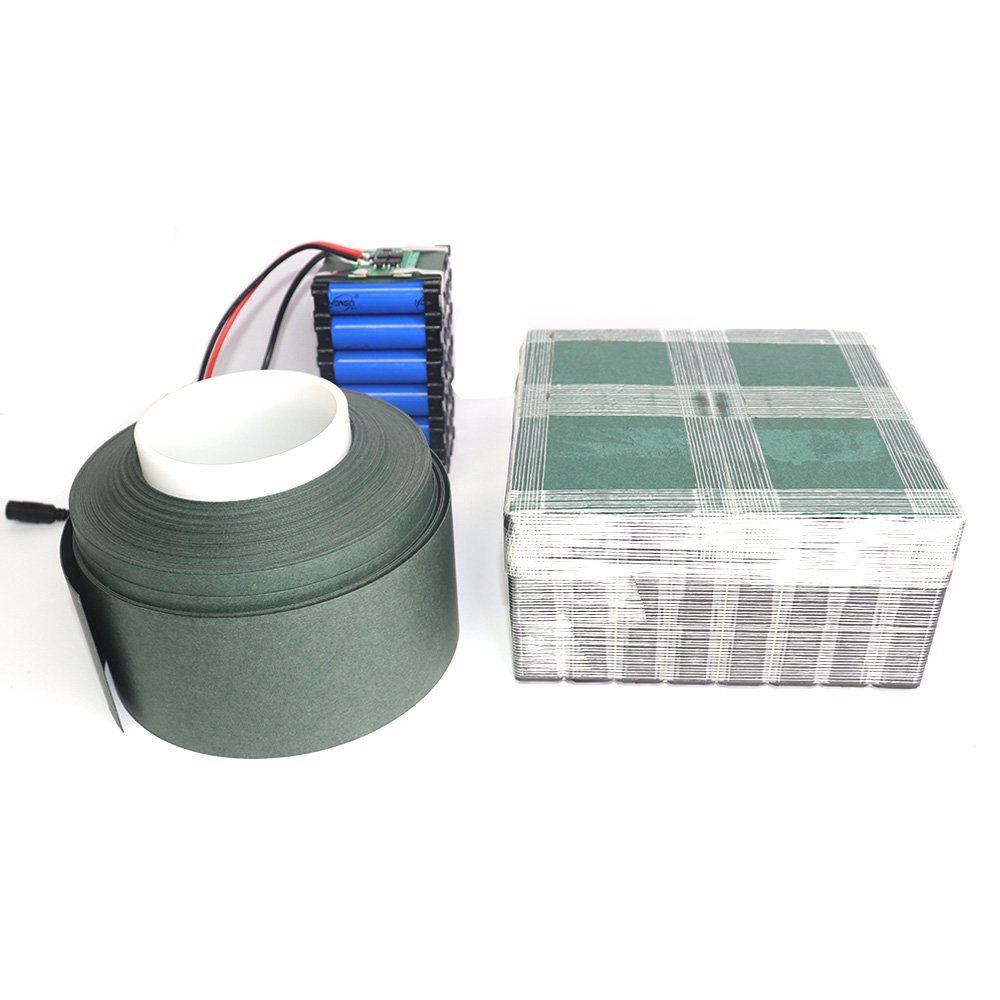

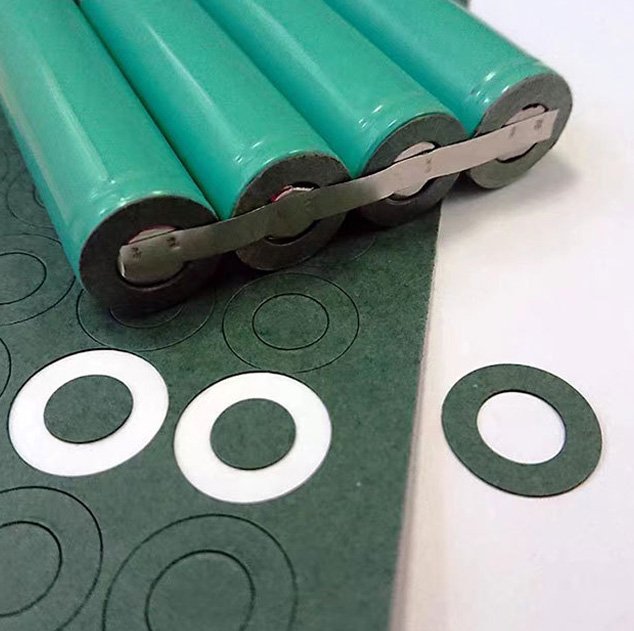

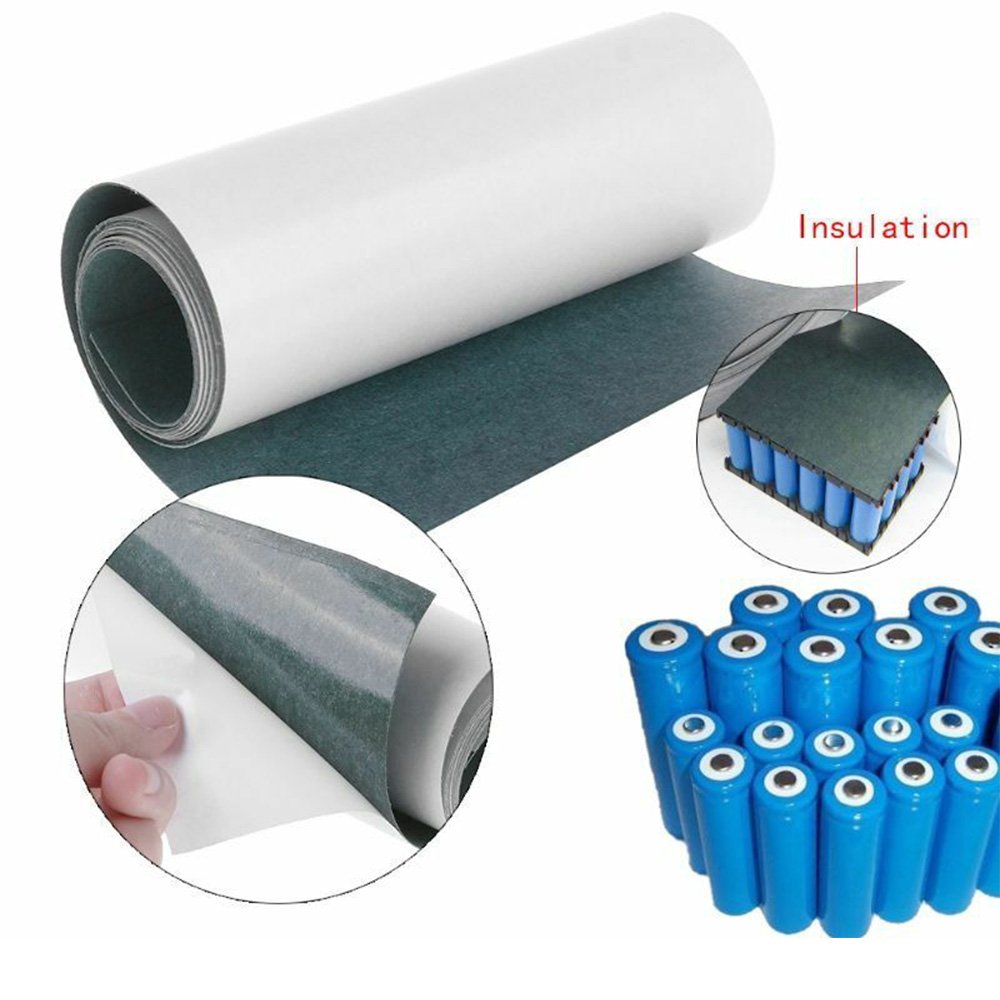

Highland Barley Paper

Highland Barley Paper is a soft composite material, by polyester film coated with adhesive, one side of the bonded wood pulp insulating paper and become a two-layer insulating paper.

Request A Quote

application

Widely used in electrical equipment, suitable for slot-to-slot insulation, turn-to-turn insulation and liner insulation of class B motors.

Property

Product model

Technicl Parameters

P7015 P7017 P7020 P7025 P7030 P7050 P7015F P7020F P7025F
Total thickness(mm) 0.15 0.17 0.2 0.25 0.3 0.5 0.15 0.2 0.25
Nominal grammage(g/m2) 155 180 210 255 300 600 155 210 255
Film nominal thickness(um) 25 25 25 25 25 25 25 25 25
Tensile strength(MD)(N/10mm) ≥100 ≥110 ≥120 ≥120 ≥150 ≥150 ≥100 ≥120 ≥120
Tensile strength(XD)(N/10mm) ≥70 ≥75 ≥80 ≥95 ≥105 ≥105 ≥70 ≥80 ≥95
Elongation(MD)(%) ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2
Elongation(XD)(%) ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8 ≥8
(KV)
Electric breakdown voltage
≥2 ≥3 ≥4 ≥5 ≥5.5 ≥6 ≥2 ≥4 ≥5
120 ± 2 ℃ 10Min
Bond strength at 120± 2℃
No delamination,no blister,no adhesive flow
