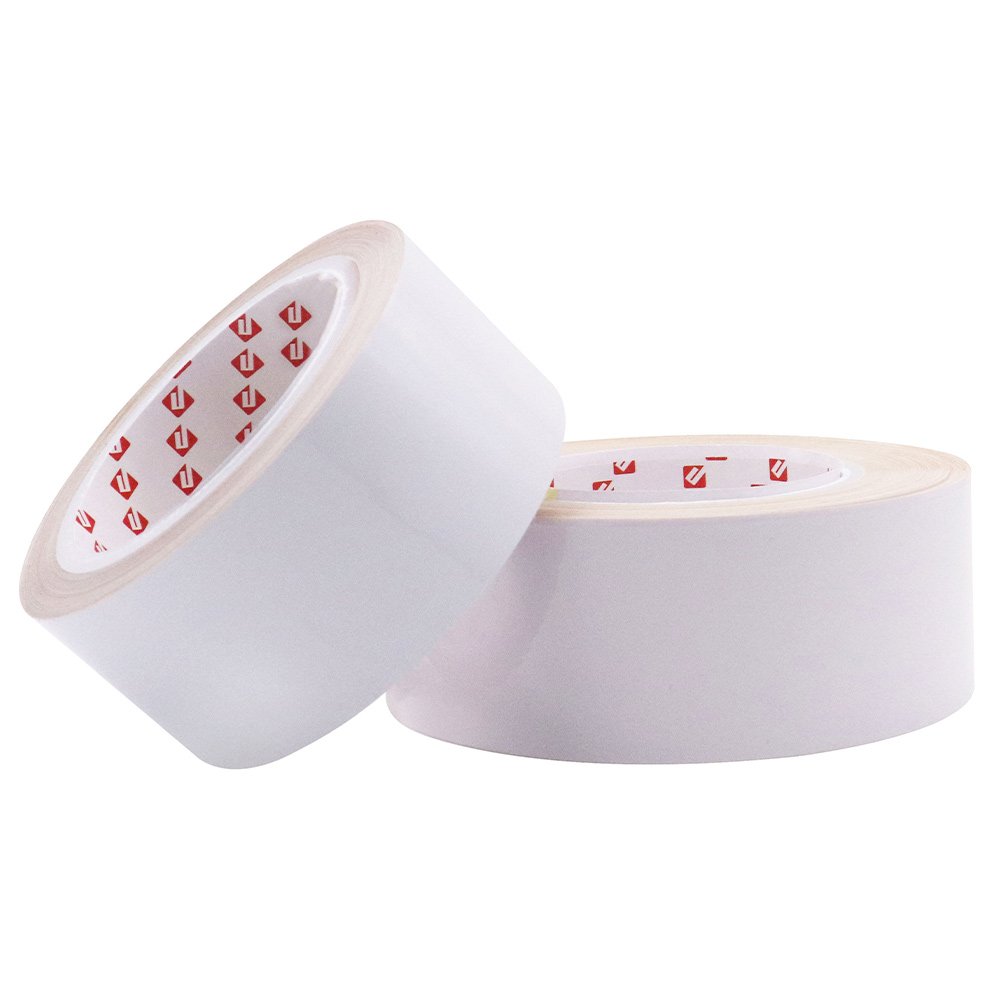

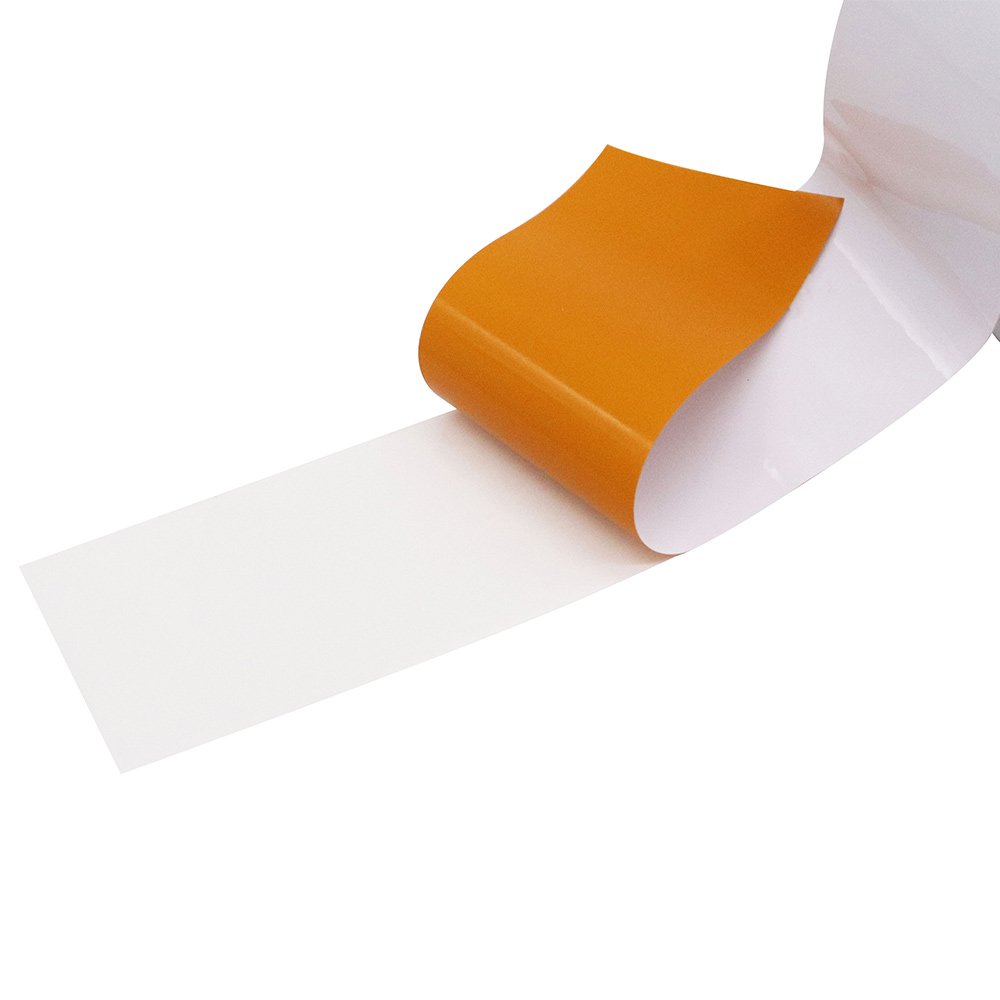

P0100L are made of polyimide film coated with a special pressure-sensitive adhesive that is chemically and abrasion resistant up to 320°C. They are resistant to a wide range of chemicals such as fluxes, melts and cleaners, as well as to high temperatures and abrasion in extremely harsh environments, ensuring that they will maintain their excellent performance in a wide range of harsh and demanding applications. At room temperature, the labels are pressure-sensitive, and above 200°C, the labels show better chemical and abrasion resistance. It is designed for character or barcode labeling for printed circuit boards. Because it can withstand the erosion of solder, melt, etc. faced during the production of printed circuit boards.
1.Labeling for cell phone and lithium battery production.
2.For labeling/quality control and product traceability in surface mount reflow processes for PCBs.
3.For high temperature marking of steel, casting, aluminum, etc.
4.Quality traceability of metal parts for the automotive and steel industries.
5.For use in aerospace, aviation and other environments with high temperature requirements for materials.
6.For SMT and wave soldering processes.
| Product Number | P0107L/P0109L | Pseudolaric acid | 25/50# PI High Temperature Label | ||
| Enterprise | Test Methods | Digital | Unit | ||
| Protective layer | Thicknesses | ISO534 | 17±2 | μm | |
| Color | – | Bright white/matte | – | ||
| Substrates | Designation | – | (PI film) | – | |
| Thicknesses | ISO534 | 25±1 /50±1 | μm | ||
| Backing paper | Grammage | ISO534 | 90 | g/㎡ | |
| Release force | FTM10 | 5-10 | g | ||
| Glue | Typology | – | Acrylic | – | |
| Thicknesses | ISO536 | 25±2 | μm | ||
| Tackiness | Adhesion to steel plate | GB/T2792-1998 | 1000±200 | g | |
| Initial tack | ASTM D3759 | ≥3 | #Steel Ball# | ||
| Temperature | Applied temperature | – | -40~300 | ℃ | |
| Reference time for high temperature applications | – | 260℃*10minute 300℃*1minute |
– | ||
| Limit temperature | – | 320℃*20Second | – | ||
| Coil loading | Minimum width | – | 25 | mm | |
| Maximum width | – | 505 | mm | ||
| Terminal | 400M/roll | – | ≦1 | – | |
| Printing method | Suitable for letterpress, flexographic and screen printing. | ||||
| Printing method | Suitable for TTR printing mode, resin ribbons recommended. | ||||
Product Features
High-temperature resistant, able to withstand temperatures of 300°C and higher.
Wear-resistant, scratch-resistant, water-resistant, oil-resistant, stain-resistant.
Anti-static, good peeling effect, no adhesive residue.
Prints well and scans with high legibility.
