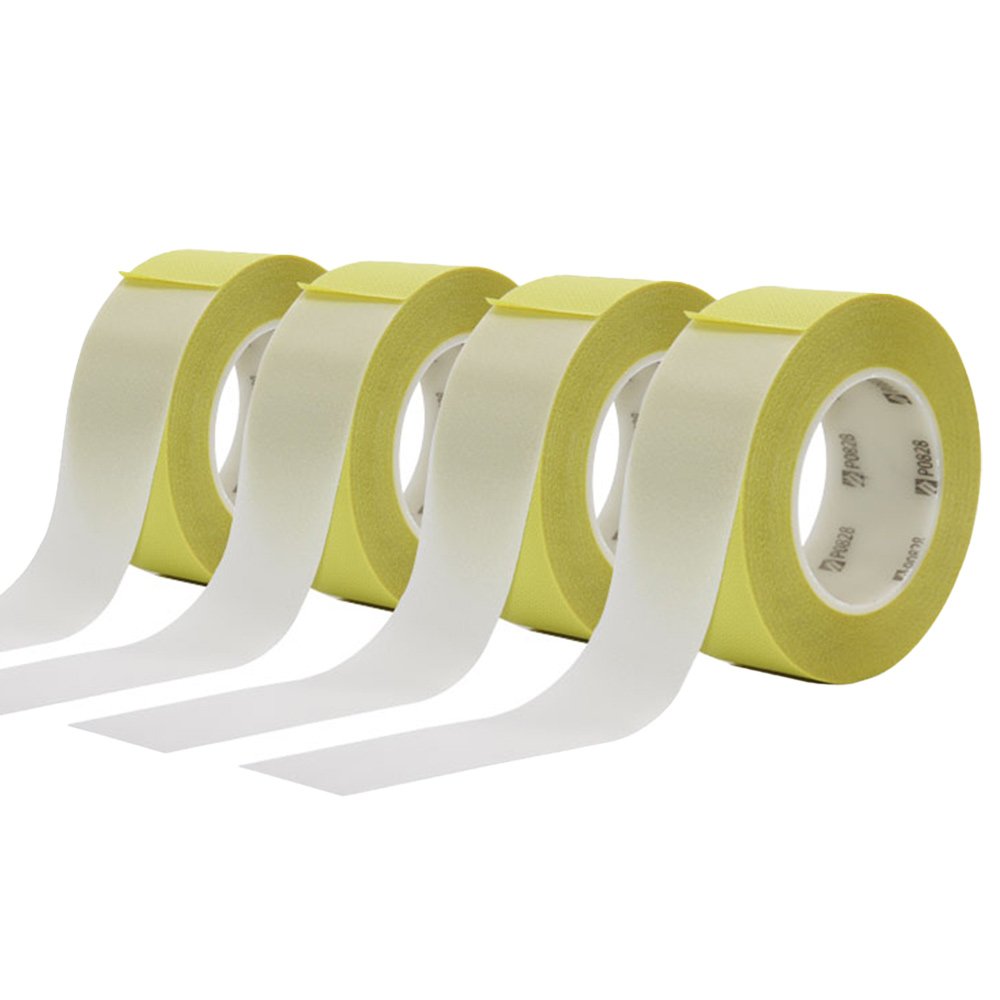

Thermal Spray tape Double Sided Glass Cloth Tape

P0828 is a double-sided adhesive tape with glass cloth as the base material and silicone system as the coating. It has high temperature resistance, high tensile strength, excellent chemical resistance and better flexibility.

Request A Quote

application

1.Sand blasting protection

2.Insulation, binding and permanent protection coil, motor motor and transformer

Property

Test items  Typical value Unit Test method
Color white -  Visual inspection
Type of glue Silicone pressure-sensitive
adhesive
- -
Base material Glass cloth - -
Base material 0.13 mm ASTM D-3652
 Total thickness 0.3 mm ASTM D-3652
Peel strength
Side A(180 ° )
11(4.4) N/inch(N/cm) ASTM D-1000
Peel strength
Side B(180 ° )
3(1.2) N/inch(N/cm) ASTM D-1000
Tensile strength 340(136) N/inch(N/cm) ASTM D-1000
Elongation 4 % ASTM D-1000
Breakdown voltage 3 KV ASTM D-1000
Insulation resistance >1×1012 Ω ASTM D-1000
Long term
service temperature
200 GB∕T 32368-2015
Short term
service temperature
290 GB∕T 32368-2015

description

Product Features

1.Excellent insulation performance and breakdown voltage resistance

2.High tensile strength, chemical resistance and high temperature resistance

3.Tear off the adhesive without residue after long-term bonding

Specification data

  • Data name
    Relese date Click to download
