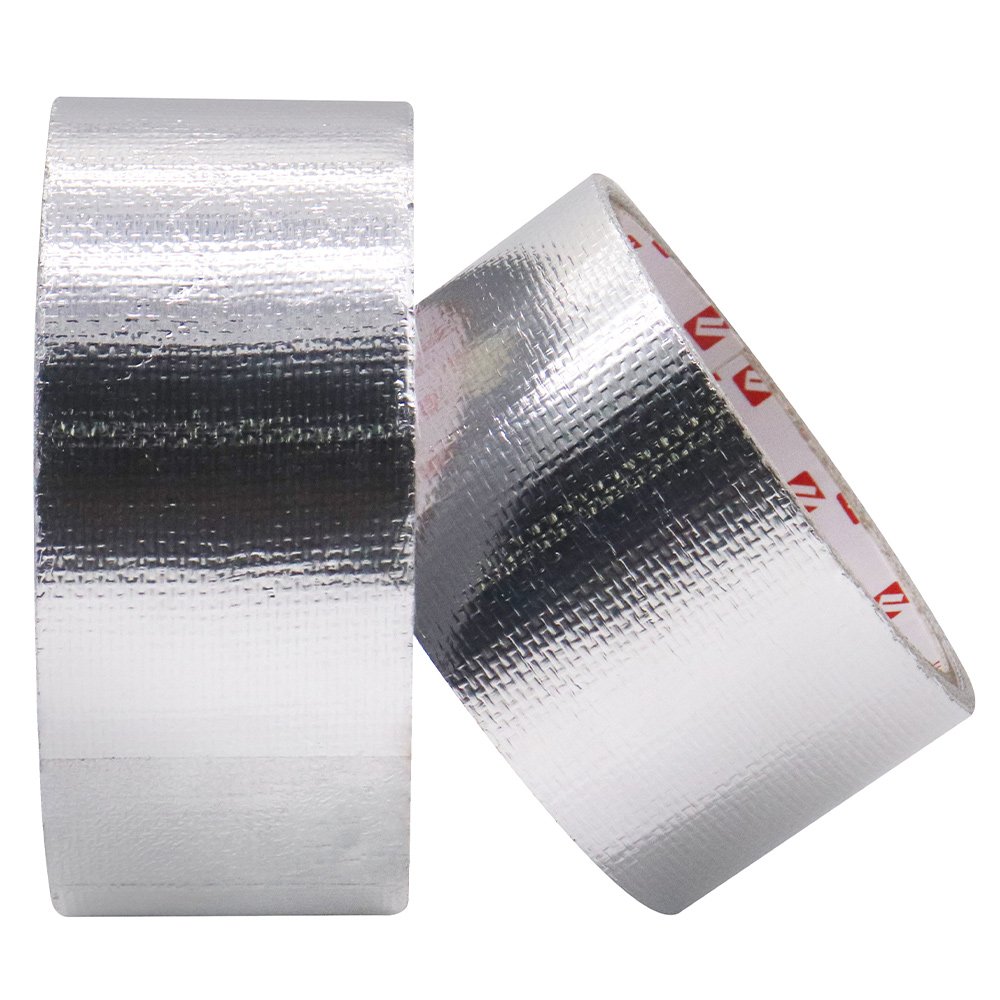

Aluminum foil fiberglass tape

Aluminum foil fiberglass tape is a composite material composed of fiberglass cloth, aluminum foil, and adhesive. It has advantages of high strength, abrasion resistance, flame retardancy, durability, and heat resistance. It is commonly used in special fields such as high temperature, fire resistance, corrosion resistance, and insulation. Aluminum foil fiberglass tape has wide applications in aerospace, aviation, power, construction, etc. For example, it is used in aircraft engine compartments, rocket engine casings, cable insulation, pipeline corrosion protection, wall insulation, roof waterproofing, etc.

Request A Quote

application

1.Pipe Sealing and Insulation.

2.Shielding and Protection of Electronic Equipment.

3.Waterproofing and insulation in the building sector.

4.Sound and thermal insulation for the automotive industry.

5.Protection and immobilization in industrial areas.

6.For sealing and breakage repair in appliance manufacturing.

Property

Test items Test Methods Unit P0615AF P0618AF
Base material Thickness Gauge Um 120 150
Basis weight Electronic Grammage gf/㎡ 110 140
Adhesive thickness Thickness Gauge Um 30 30
Ingredient - - Acrylic adhesive Acrylic adhesive
Thickness of white silicon release paper Electronic Grammage Gf 85 85
 Total thickness Thickness Gauge um 150 180
Initial adhesion (steel ball) GB4852 # ≥13 ≥13
 Holding power (room temperature)  GB4851 hrs ≥24 ≥24
Holding power (50)  GB4851 hrs ≥24 ≥24
180° peeling force GB2792 N/25mm 9N ≥9N
Tensile strength GB7753 Mpa ≥80 ≥80
Fire performance Combustion test - Flame retardant Flame retardant
Temperature resistance GB∕T 32368-2015 - ≥120℃ ≥120℃

description

Product Features

1.High strength and heat resistance, oxidation and corrosion resistance.

2.Excellent water vapor barrier, high cohesiveness.

3.Good electrical conductivity, flame retardant.

4.Waterproof sealing, easy application, long-lasting flexibility.
