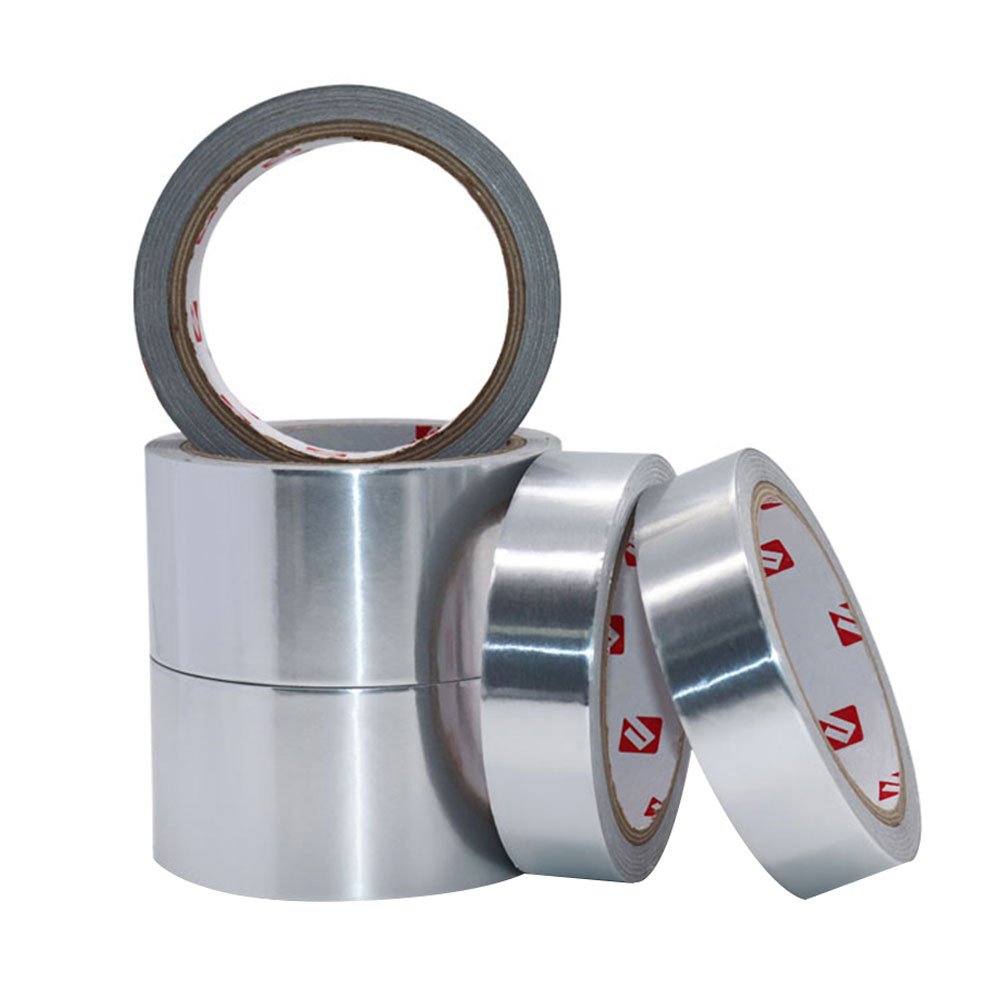

Aluminum foil tape is based on high-performance aluminum foil, coated with acrylic pressure-sensitive adhesive, and combined with an easy-release liner. According to the different conductivity of the glue, it can be divided into single conductive aluminum foil tape and double conductive aluminum foil tape. It has the characteristics of good electrical conductivity, shielding, heat resistance and high adhesion.
1. Widely used in refrigerators, air conditioners, automobiles, petrochemicals, bridges, hotels, electronics and other industries.
2. It can be used in places where electromagnetic shielding is required for various electronic products such as PDAs, PDPs, LCD monitors, notebook computers, and copiers.
3. It is used to wrap the steam pipe to prevent the temperature from escaping outward.
| Property | ||||||||
| Product Code Technical Parameters |
P0605 | P0606 | P0607 | P0608 | P0610 | P0612 | P0614 | P0615 |
| Color | Silver White | |||||||
| Total Thickness[mm] | 0.05 | 0.06 | 0.07 | 0.08 | 0.1 | 0.12 | 0.14 | 0.15 |
| Backing Thickness[mm] | 0.018 | 0.025 | 0.035 | 0.05 | 0.05 | 0.05 | 0.1 | 0.1 |
| Backing | Aluminum foil | |||||||
| Adhesive | Acrylic | |||||||
| 180°Peel Strength[N/inch] | 12 | 12 | 12 | 12 | 12 | 12 | 13 | 15 |
| Retentivity [hour] |
12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Surface Resistance[mΩ] | 50 | |||||||
| Long-Term Temperature Resistance[℃] | 80 | |||||||
| Short-Term Temperature Resistance[℃] | 120 | |||||||
Specification data
