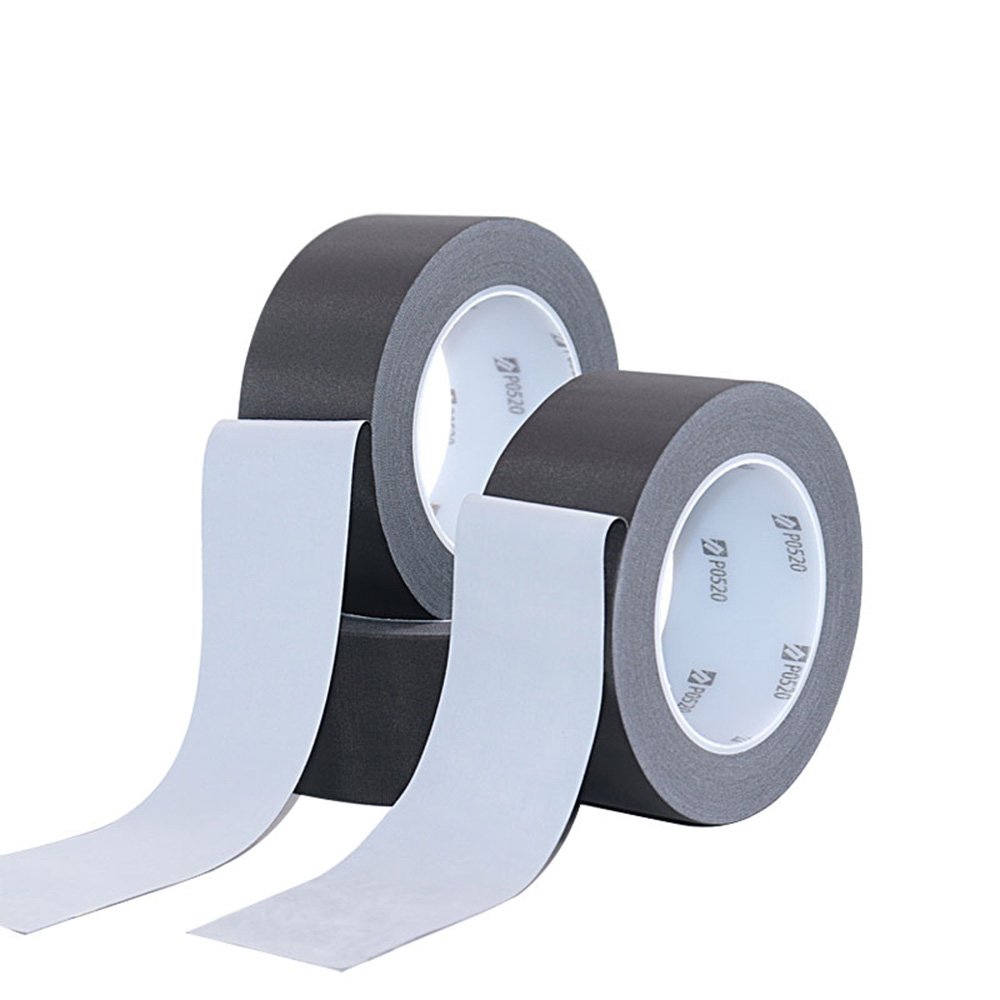

Acetate Cloth Tape

Acetate cloth tape is made from high quality acetate fabric and coated with high performance acrylic adhesive. It is resistant to high temperatures, solvents, ageing, insulation, peeling and flame retardant.

Request A Quote

application

1.For insulation of electronic products
2.Insulation protection for automobile and equipment harnesses
3. Winding and fixing of ceramic heaters and quartz tubes
4.Transformer and battery insulation

Property

Property
 Product Code
Technical Parameters
P0508 P0512 P0522 P0522F
Color Black/White Black/White Black/White Black/White
 Total Thickness[mm] 0.08 0.12 0.22 0.22
Backing Thickness[mm] 0.06 0.1 0.18 0.18
Backing Acetate Cloth Acetate Cloth Acetate Cloth Acetate Cloth
Adhesive Acrylic Acrylic Acrylic Acrylic
Initial Adhesion[#] 4 4 4 4
180°Peel Strength[N/inch] 8 10 17 7
Retentivity[hour] 24 48 48 48
Tensile Strength[Kgf/inch] 5.5 5.5 5.5 5.5
Long-Term Temperature Resistance[℃] 80 80 80 80
Short-Term Temperature Resistance[℃] 130 130 130 130
Flame Resistance - - Non-Flame Retardant Flame Retardant

description

Specification data

  • Data name
    Relese date Click to download
