High-Temperature Kapton Tape:What is Kapton tape used for?

Kapton tape, also known as Polyimide (PI) tape, refers to a polymer with imide groups (-CO-NR-CO-) in its main chain. Due to the presence of imide groups, thermally cured polyimide exhibits excellent heat resistance. By coating it with high-temperature pressure-sensitive adhesives such as silicone or acrylic, it can be made into a tape with outstanding high-temperature performance. It possesses excellent properties such as high and low temperature resistance, acid and alkali resistance, and solvent resistance, and maintains good performance even under extreme temperatures and vibrations, making it the optimal choice for designers. It can preserve the operational performance of machines under harsh conditions.

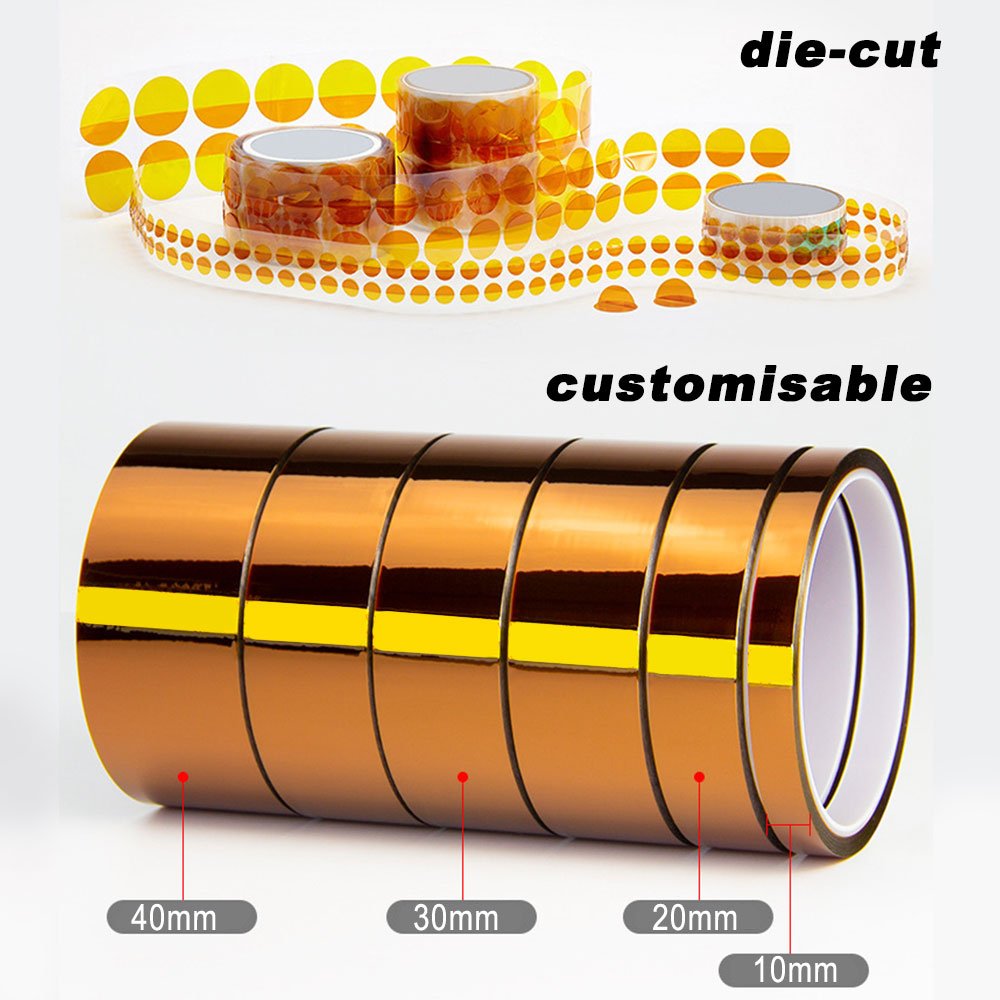

Kapton tape customisable die-cut Kapton tape



You-san Technology's Kapton tape can withstand long-term temperatures of up to 260℃, and short-term temperatures of up to 280℃. Thanks to the high-temperature resistance of both the substrate (polyimide) and adhesive system (silicone, acrylic, etc.), Kapton tape finds wide applications in high-temperature fields. It is suitable for wave soldering tin shielding of electronic circuit boards, protection and insulation of gold fingers and high-end electrical appliances, insulation of motors, fixing of positive and negative terminals of lithium batteries, transformers, printed circuit boards (PCBs), and more.



Kapton tape



The Structure Diagram of You-san Kapton tape series is as follows:

Kapton tape



The main applications are as follows:

High-temperature insulation wrapping for transformers, motors, coils, capacitors, and variable-frequency power supplies in the electronics industry. Application of Kapton tape
Application of Kapton tape Suitable for shielding and protecting Kapton during PCB (printed circuit board) assembly, SMT (surface mount technology) reflow soldering, and wave soldering processes.
Welding protection. Application of Kapton tape
Application of Kapton tape Insulation and protection for high-end electrical appliances and fixation of positive and negative terminals in lithium batteries.

Bundling in the manufacturing of mobile phone lithium batteries.

The appearance, thickness, high-temperature resistance, peel strength, and tensile strength of the P0106A Kapton tape model are as follows:

Product code: P0106A

Test items Typical value Unit Test method
color dark brown - Visual inspection
Type of glue Acrylate adhesive - -
base material thickness 0.025 mm ASTM D-3652
Total thickness 0.05 mm ASTM D-3652
Peel strength(180°) 7(2.8) N/inch(N/cm) ASTM D-3330
Tensile strength 100(40) N/inch(N/cm) ASTM D-3759
elongation 45 % ASTM D-3759
Short term temperature 150 GB∕T 32368-2015
Long term temperature 100 GB∕T 32368-2015





Kapton tape

Property
Product Code

Technical Parameters

P0103 P0104 P0106 P01065 P0107 P0108 P0110 P0112 P0115 P0106A P0106E
Color Gold,Black, Red, Green, Transparent
Total Thickness [mm] 0.03 0.04 0.06 0.065 0.07 0.08 0.1 0.12 0.15 0.06 0.06
Backing Thickness[mm] 0.0125 0.025 0.025 0.025 0.025 0.05 0.05 0.075 0.1 0.025 0.025
Backing PI PI PI PI PI PI PI PI PI PI PI
Adhesive Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Silicone Acrylic Silicone
180°Peel Strength[N/inch] 4 4 5 6 6 5 6 6 7 7 5
Tensile Strength[kg/25mm] 10 10 10 10 10 20 20 28 36 10 10
Elongation At Break[%] 30 45 45 45 45 55 55 60 70 45 45
Breakdown Voltage[KV] 2.5 5 5 5 5 7 7 9 10.5 5 5
Long-Term Temperature Resistance[℃] 260 260 260 260 260 260 260 260 260 100 260
Short-Term Temperature Resistance[℃] 280 280 280 280 280 280 280 280 280 150 280
