High Temperature Tape Manufacturer

parters

high temperature tape products

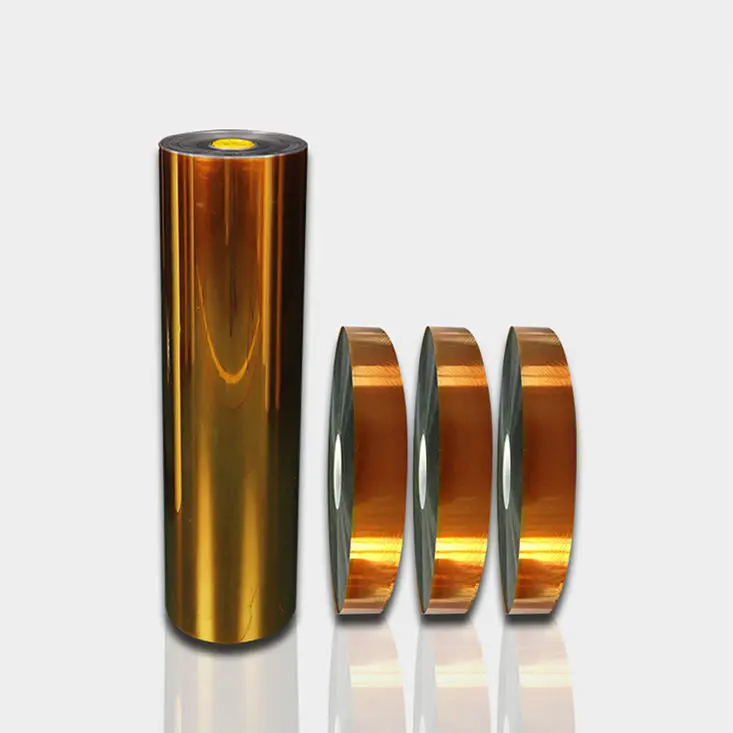

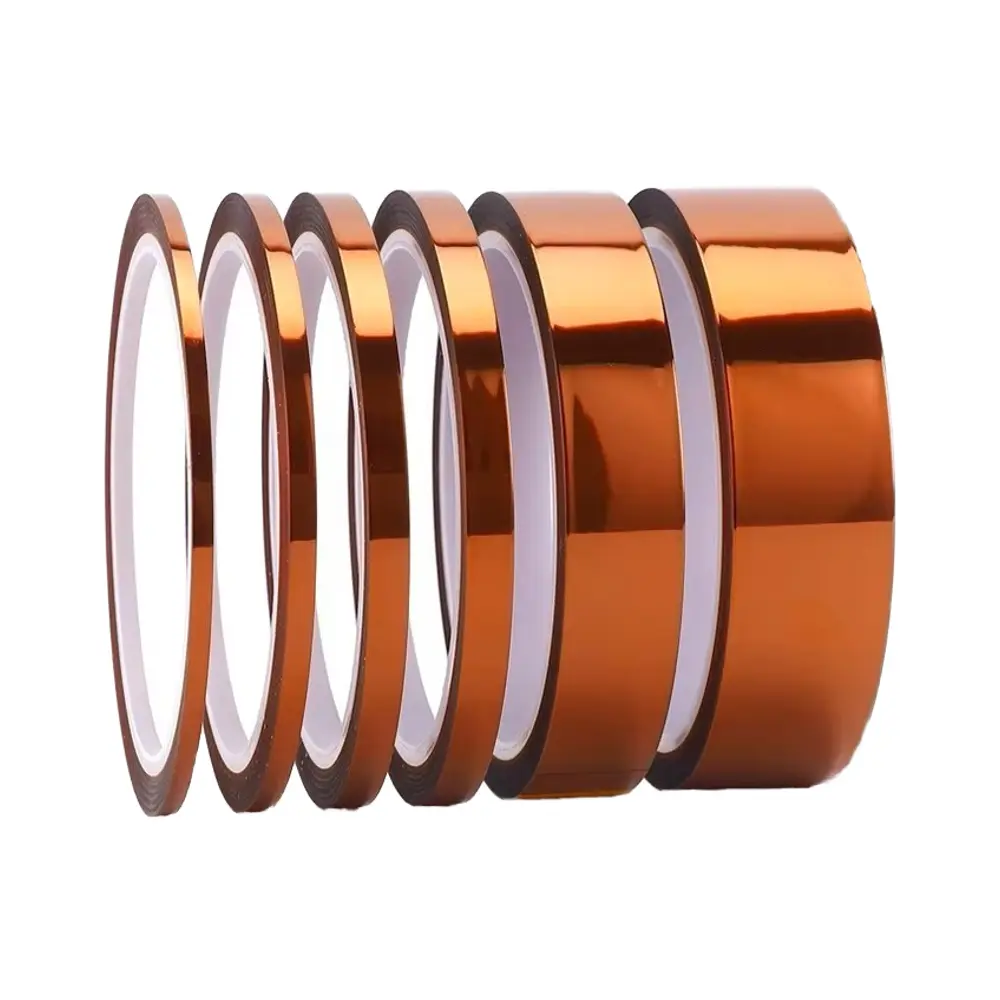

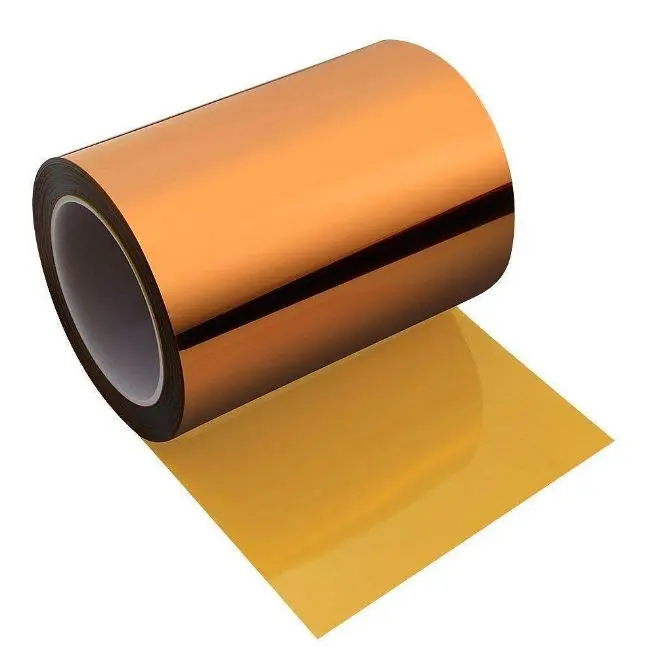

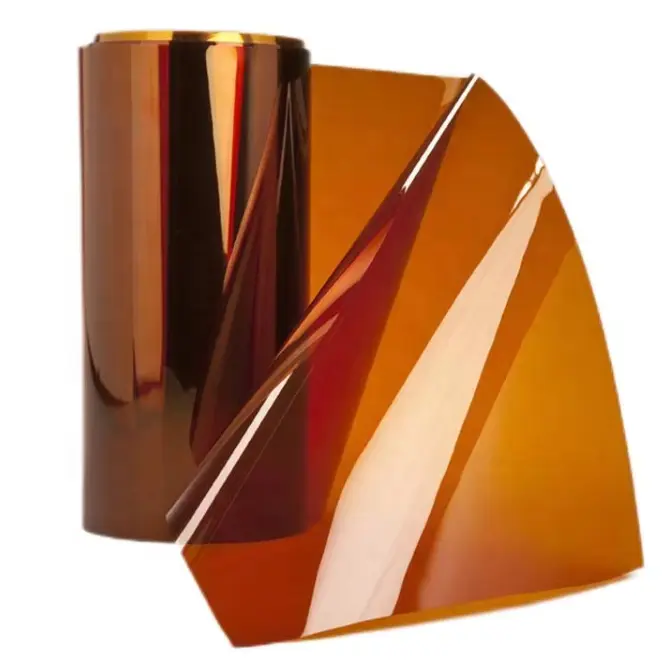

Single-sided Kapton tape uses polyimide film the base material,One side coated with silicone adhesive. Thicknesses range from 0.03 mm to 0.15 mm, with different thicknesses available to meet various needs.

Color: Amber
Thickness: From 0.03mm to 0.15mm
Temperature resistance(℃): 3From -73 to 280
Width: 500mm or customized
Length: 33m or customized
Core: 3in or 1.5in
Cutting: Any width
Samples: Free
Notice: Not for retail sale

Free sampling

Single-sided Kapton tape Data Sheet

Technical Parameters	P0103	P0104	P0105	P0105A	P0105AH	P01055	P0106	P0106E ESD	P01065	P0107	P0108	P0110	P0112	P0115
Color	Gold, Black, Red, Green, Transparent
Total Thickness [mm]	0.03	0.04	0.05	0.05	0.05	0.55	0.06	0.06	0.065	0.07	0.08	0.1	0.12	0.15
Total Thickness (μm)	30	40	50	60	60	55	60	60	65	70	80	100	120	150
Backing Thickness [mm]	0.0125	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.05	0.05	0.075	0.1
Backing	PI	PI	PI	PI	PI	PI	PI	PI	PI	PI	PI	PI	PI	PI
Adhesive	Silicone	Silicone	Silicone	Acrylic	Acrylic	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
180° Peel Strength [N/inch]	4	4	5	5	10	5	5.5	5.5	6.5	6.5	5.5	6.5	6.5	6.5
Tensile Strength [kg/25mm]	10	10	10	10	10	10	10	10	10	10	20	20	28	36
Elongation at Break [%]	30	45	45	45	45	45	45	45	45	45	55	55	60	70
Breakdown Voltage [KV]	2.5	5	5	5	5	5	5	5	5	5	7	7	9	10.5
Long-Term Temperature Resistance [°C]	260	260	260	100	100	260	260	260	260	260	260	260	260	260
Short-Term Temperature Resistance [°C]	280	280	280	150	150	280	280	280	280	280	280	280	280	280
Temperature resistance[°C]	-73/260	-73/260	-73/260	-73/100	-73/100	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260

Silicone Adhesive Polyimide Film

Kapton polyimide tape Features

Excellent electrical insulation
Outstanding dimensional stability
High thermal resistance
Long and great durability
Clean removal
High temperature resist 260℃
H-class insulation
Strong tensile strength
Heat-resistant silicone adhesive polyimide tape
High-Temperature Resist, solvent-resistant, stable and reliable

Kapton polyimide tape Applications

Used for protection in wave soldering and reflow soldering gold finger.
Used for electrical and electronic industry under the working temperature bonding insulation, Metal material at high-temperature paint, sand coating covered surface protection.
Used for electrical switches, motors, transformers, relays, cable, coil, capacitor, and lithium batteries in the insulation box bonded H level.
Used for circuit board manufacturing industry in various needs high-temperature and moisture protection of electronic components.

Kapton Tape TDS

Download

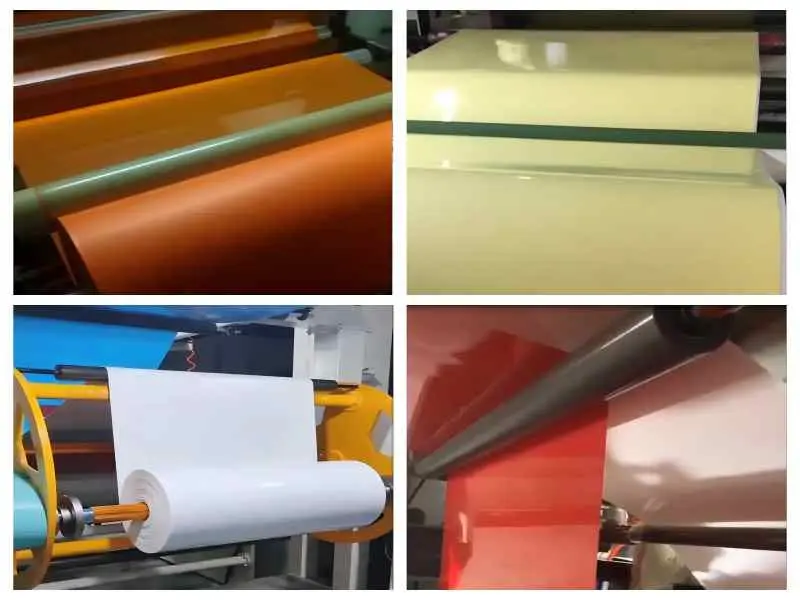

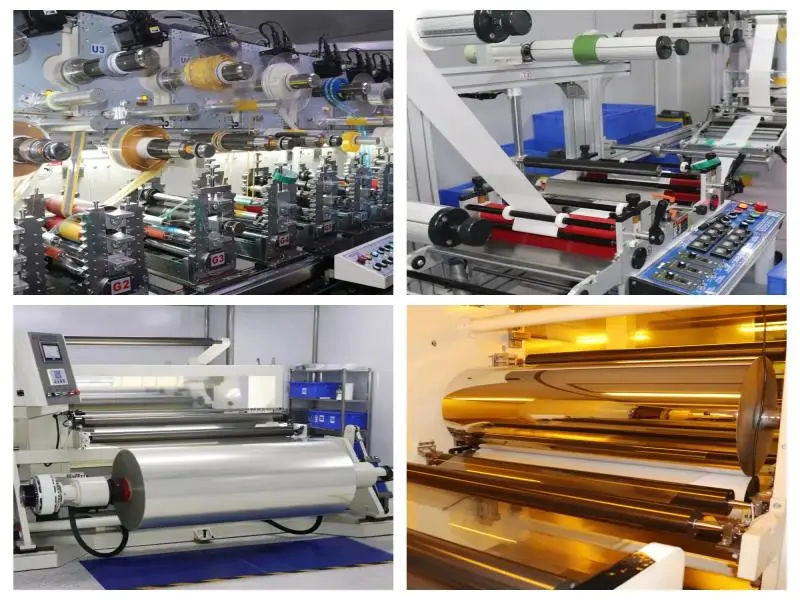

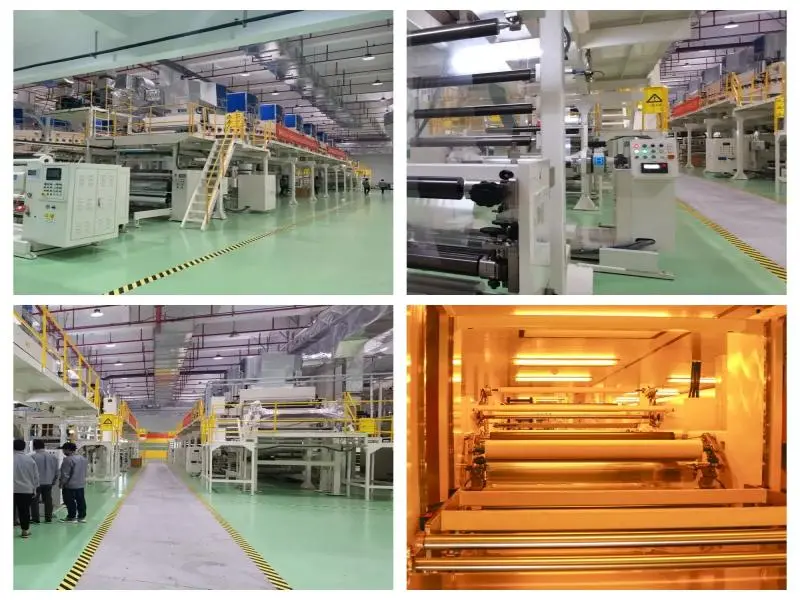

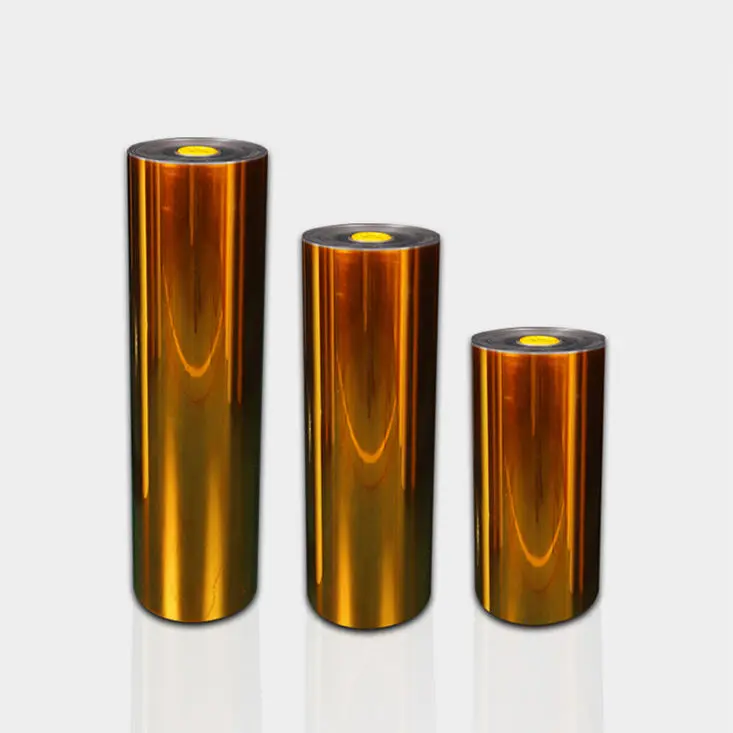

Coating jumbo rolls

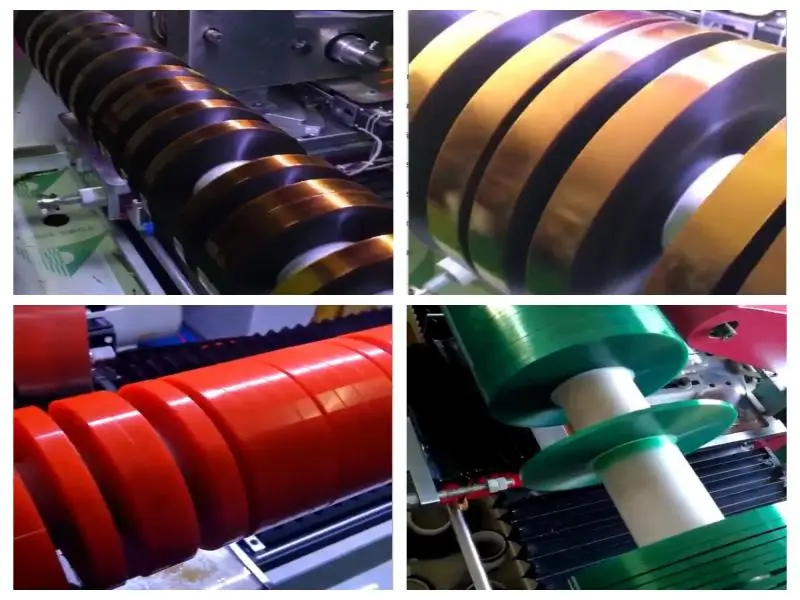

Slitting or cutting to small rolls
Rewinding liner
Cutting width required by the customers

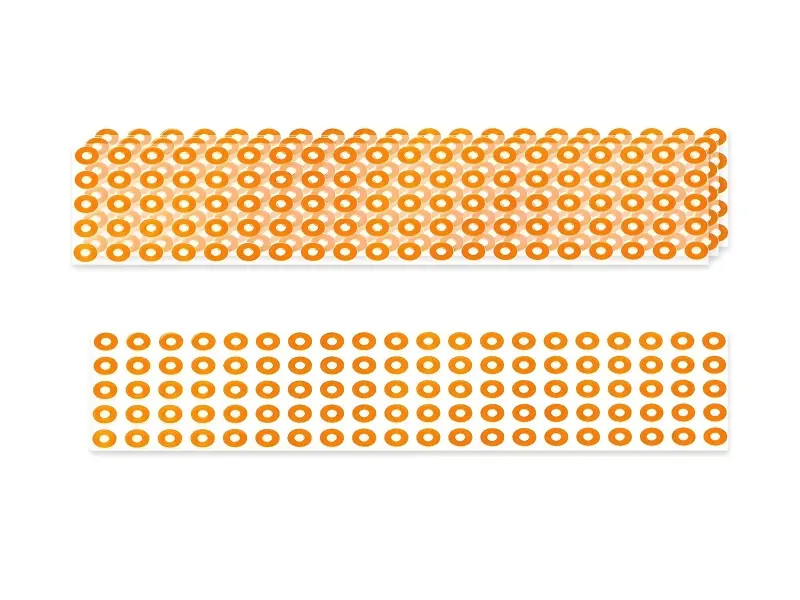

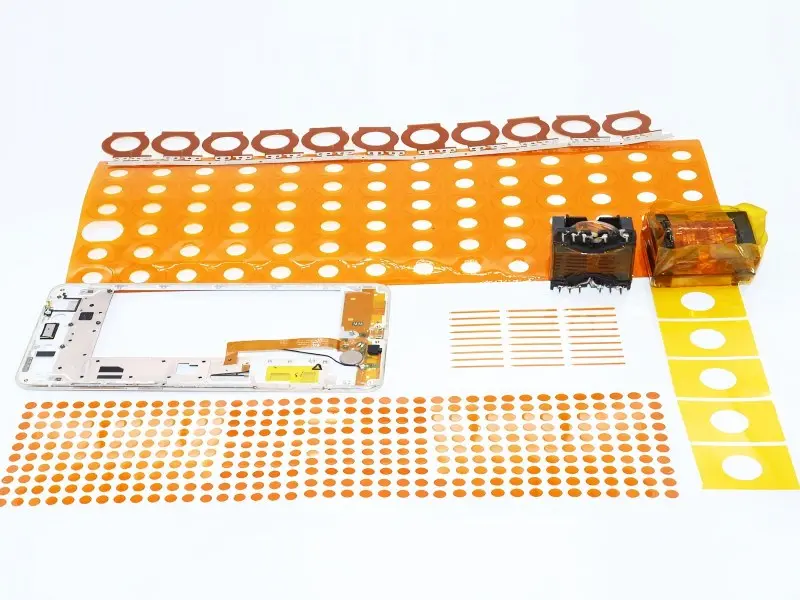

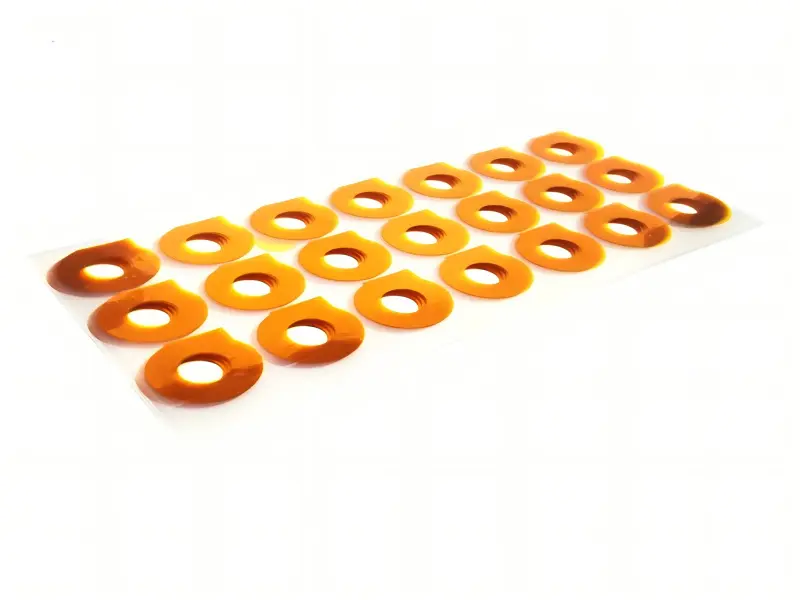

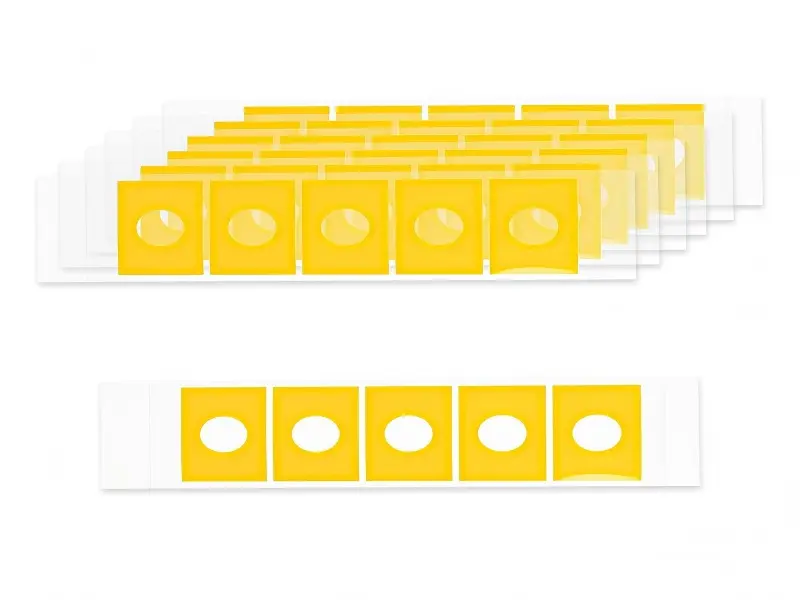

Die-cutting to the drawings of the customers
Laminate other materials
Free samples based on freight collect

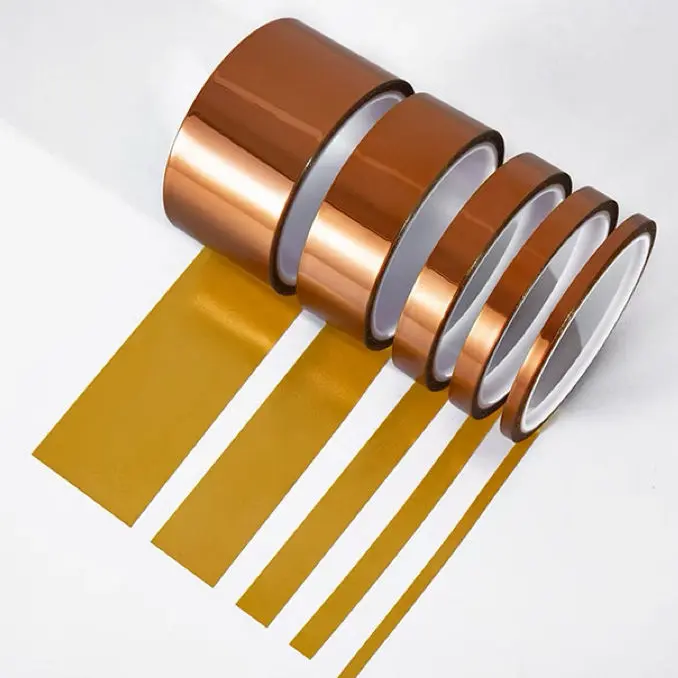

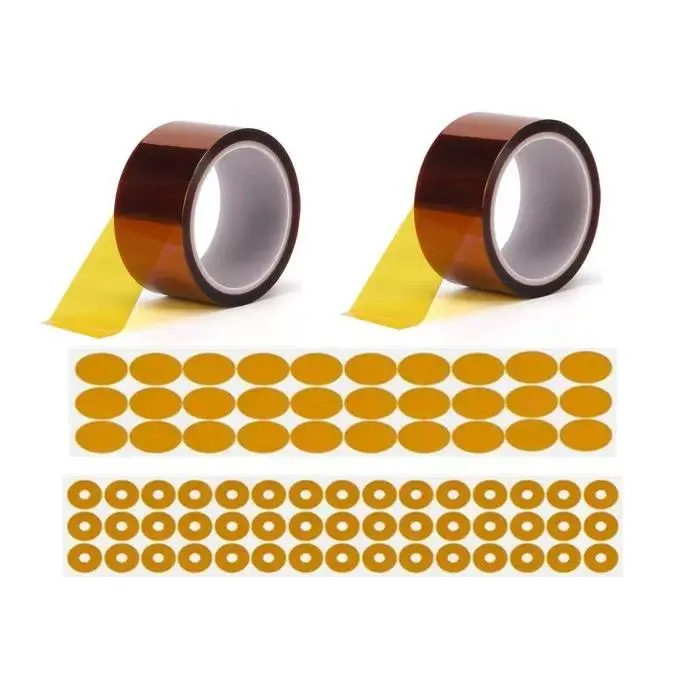

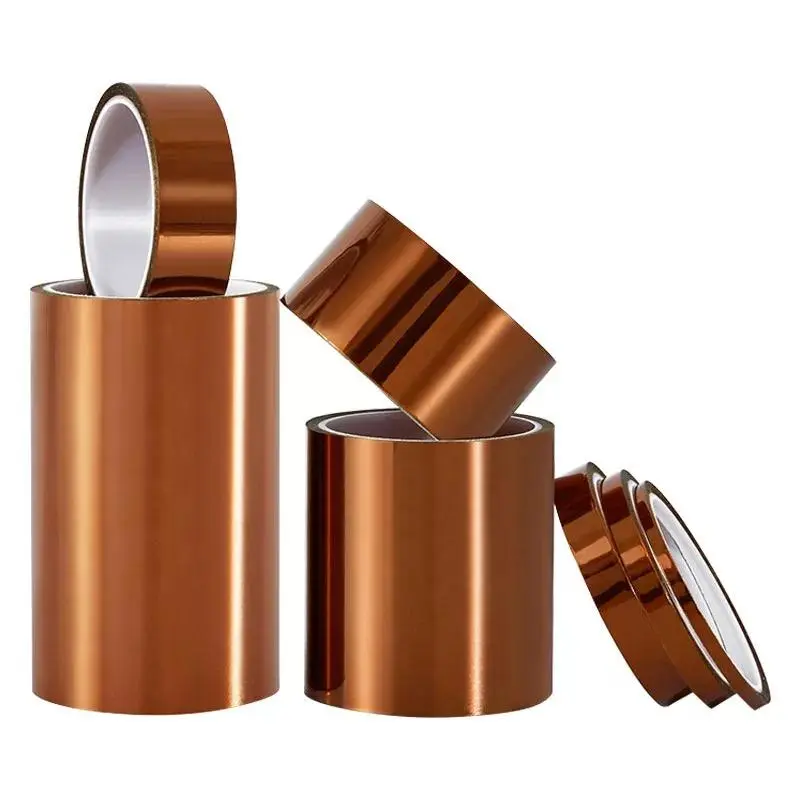

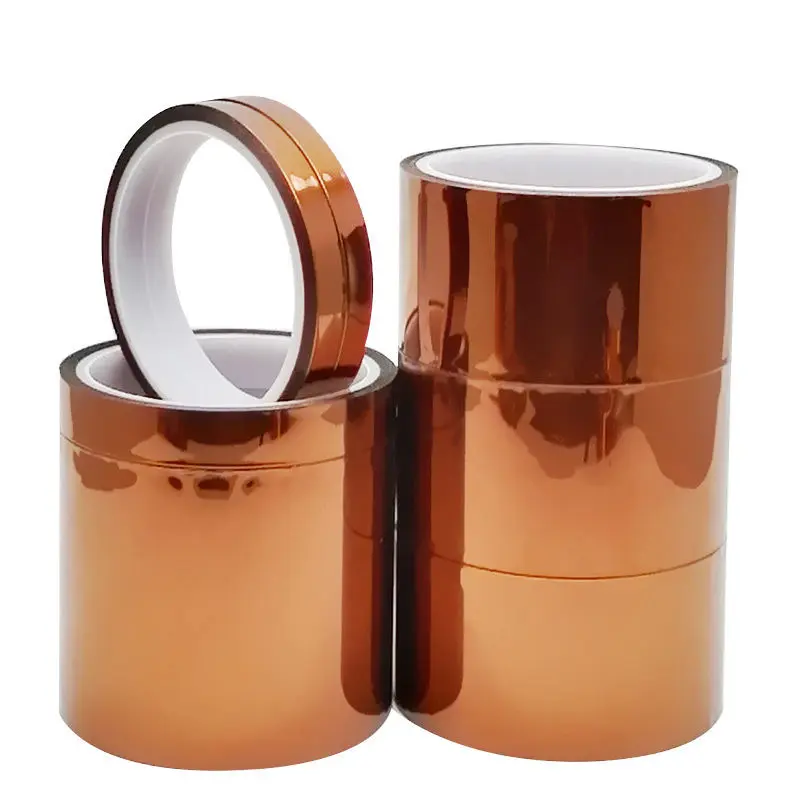

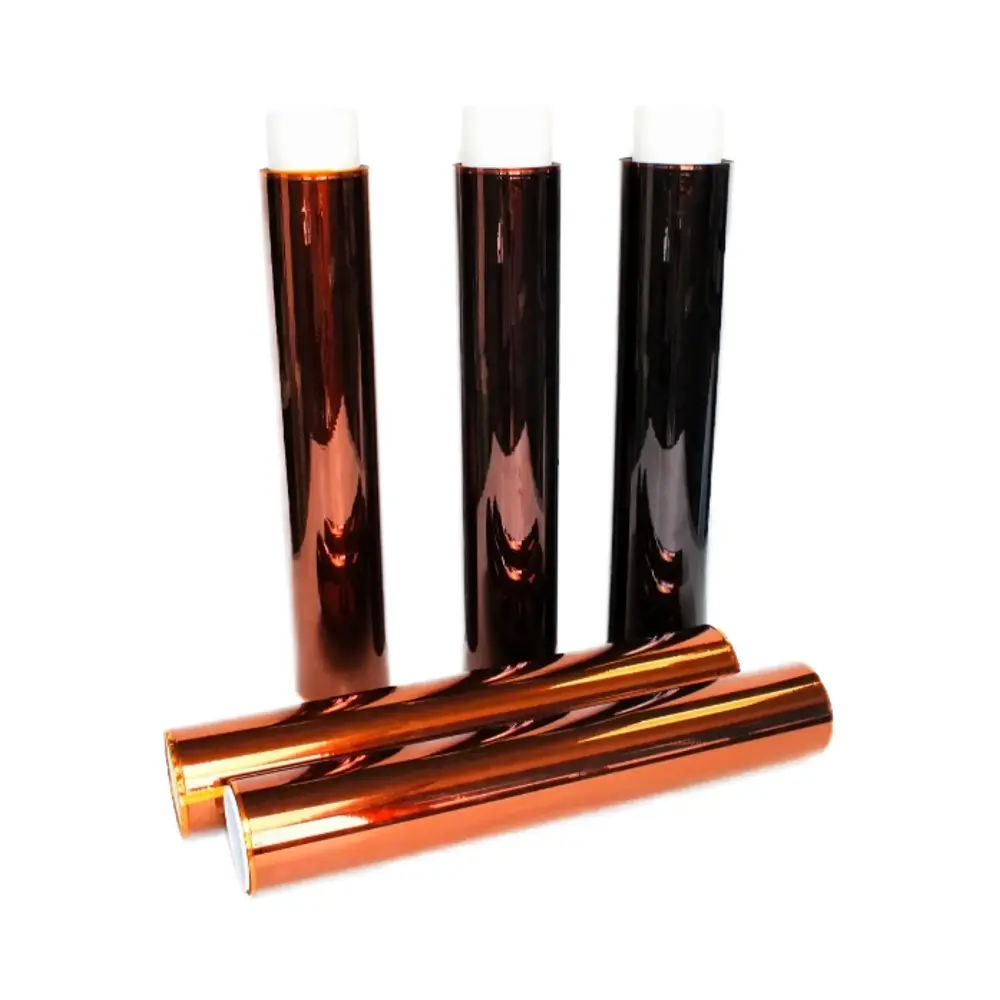

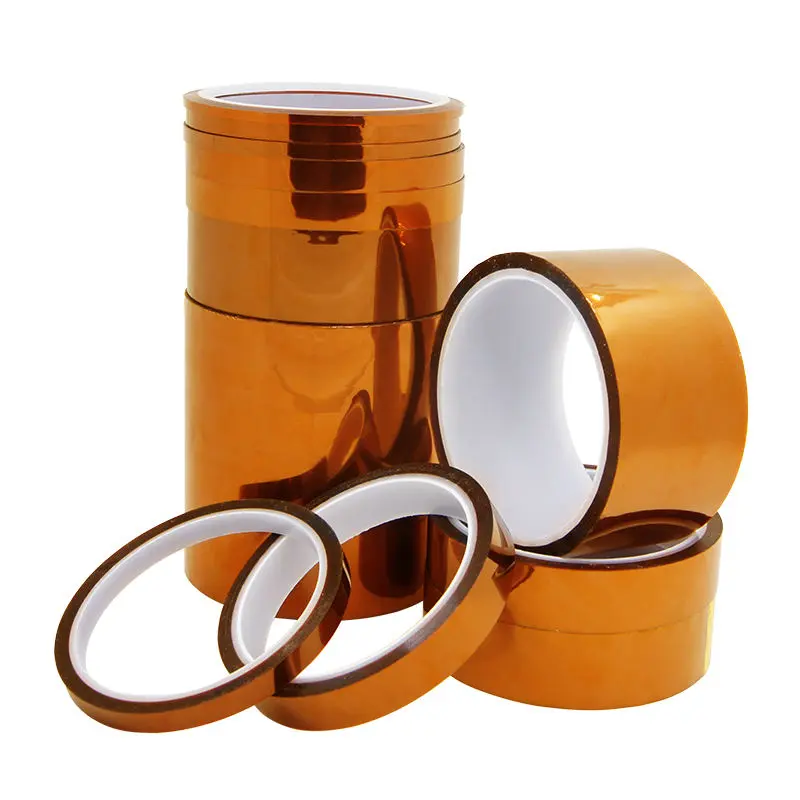

Kapton Tape

Kapton Tape is a polyimide-based adhesive tape designed for high-temperature and electrical insulation applications, operating reliably from -50°C to 260°C. It provides excellent thermal stability, chemical resistance, and insulation performance, widely used in electronics manufacturing and high-heat processes.

Free sampling

Polyimide Tape

Polyimide Tape features a polyimide film backing with heat-resistant adhesive, offering stable performance at temperatures up to 260°C. It is used for masking, insulation, and protection in electronics, PCB assembly, and industrial applications.

Free sampling

PI Tape

PI Tape is a high-temperature polyimide adhesive tape capable of withstanding continuous exposure up to 260°C. It provides reliable electrical insulation, flame resistance, and dimensional stability for electronic and electrical components.

Free sampling

Polyimide Film Tape

Polyimide Film Tape combines a thin polyimide film with pressure-sensitive adhesive, delivering excellent heat resistance up to 260°C and strong dielectric properties. It is commonly used for electrical insulation, masking, and component protection.

Free sampling

Single Sided Polyimide Tape

Single Sided Polyimide Tape is coated with adhesive on one side and maintains stable adhesion under temperatures up to 260°C. It is suitable for electrical insulation, high-temperature masking, and surface protection.

Free sampling

Single Sided Kapton Tape

Single Sided Kapton Tape offers excellent heat resistance from -50°C to 260°C with reliable adhesion and electrical insulation. It is widely applied in electronics assembly, soldering processes, and high-temperature environments.

Free sampling

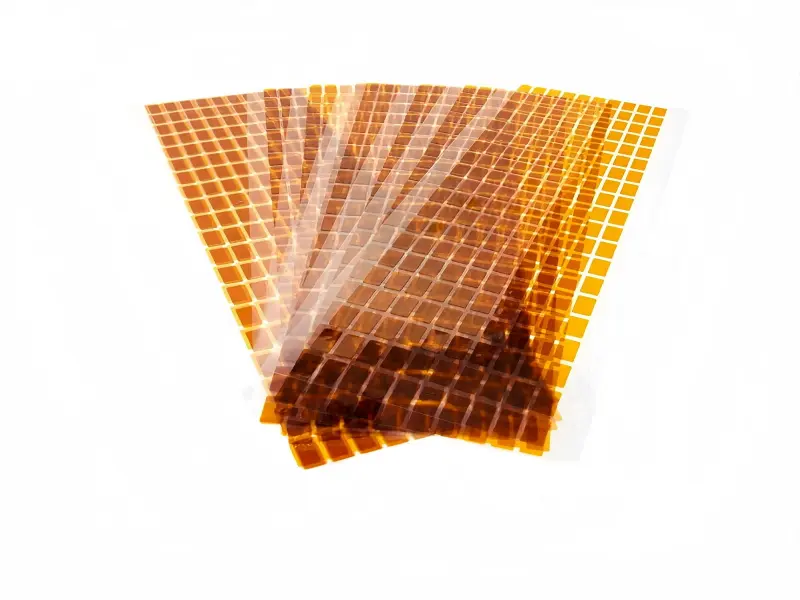

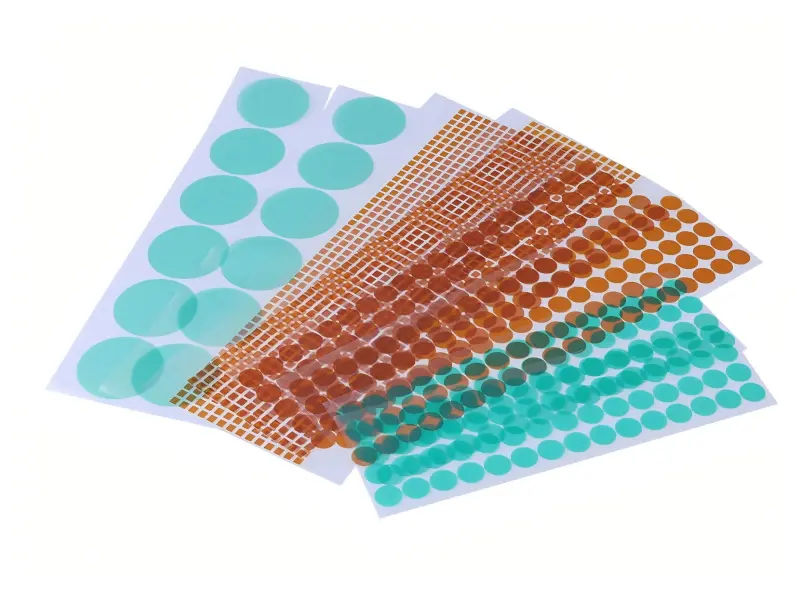

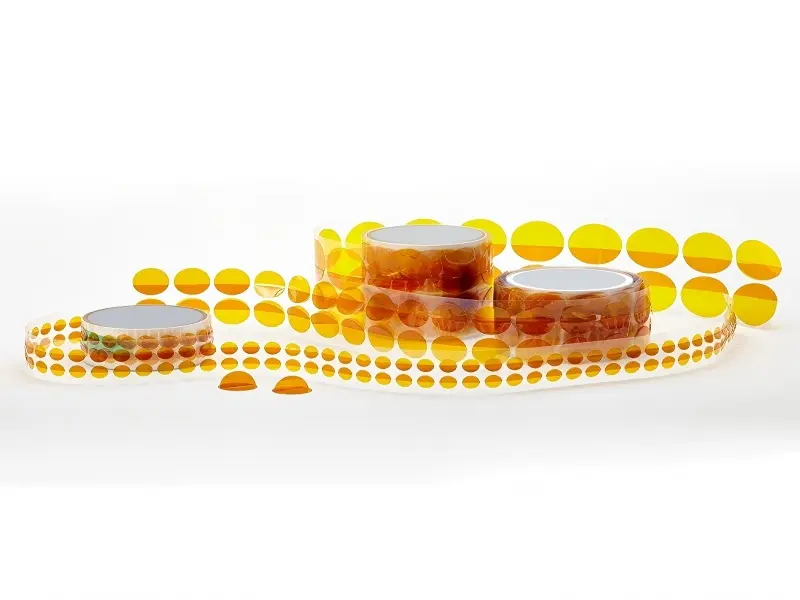

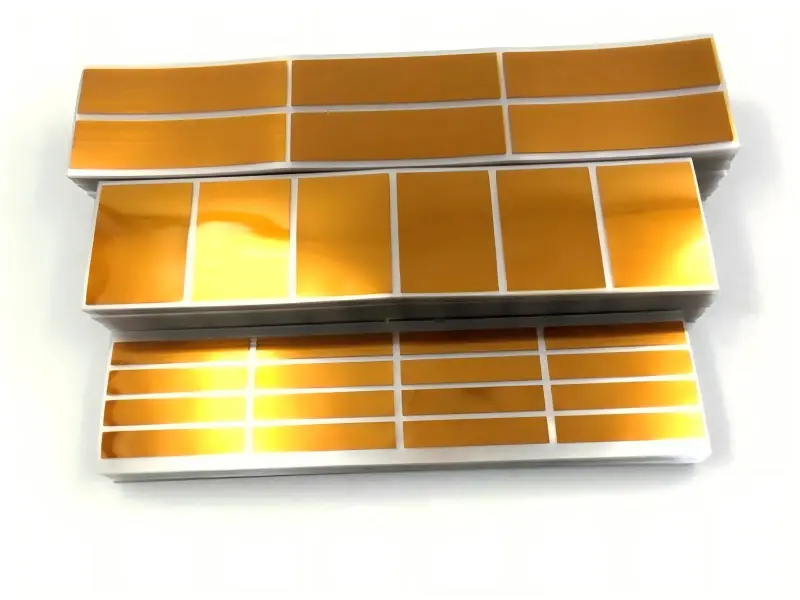

Gold Finger Tape

Gold Finger Tape is a polyimide tape designed for PCB edge masking, protecting gold fingers during soldering and plating processes. It withstands temperatures up to 260°C and leaves minimal residue after removal.

Free sampling

PCB Polyimide Tape

PCB Polyimide Tape is used for masking and insulation during PCB manufacturing and assembly, offering high heat resistance up to 260°C. It protects sensitive areas during soldering, reflow, and wave soldering processes.

Free sampling

SMT Polyimide Tape

SMT Polyimide Tape is designed for surface mount technology applications, maintaining adhesion and dimensional stability during reflow soldering at temperatures up to 260°C. It is used for component masking and PCB protection.

Free sampling

Wave Soldering Kapton Tape

Wave Soldering Kapton Tape provides reliable masking and insulation during wave soldering processes, withstanding direct exposure to temperatures up to 260°C. It prevents solder bridging and protects heat-sensitive components.

Free sampling

Reflow Soldering Polyimide Tape

Reflow Soldering Polyimide Tape maintains adhesion and structural integrity during reflow soldering cycles up to 260°C. It is used for high-temperature masking and protection in PCB assembly.

Free sampling

High Temp Kapton Tape

High Temp Kapton Tape is engineered for extreme heat resistance, operating continuously up to 260°C. It offers excellent thermal stability, insulation performance, and chemical resistance for high-temperature applications.

Free sampling

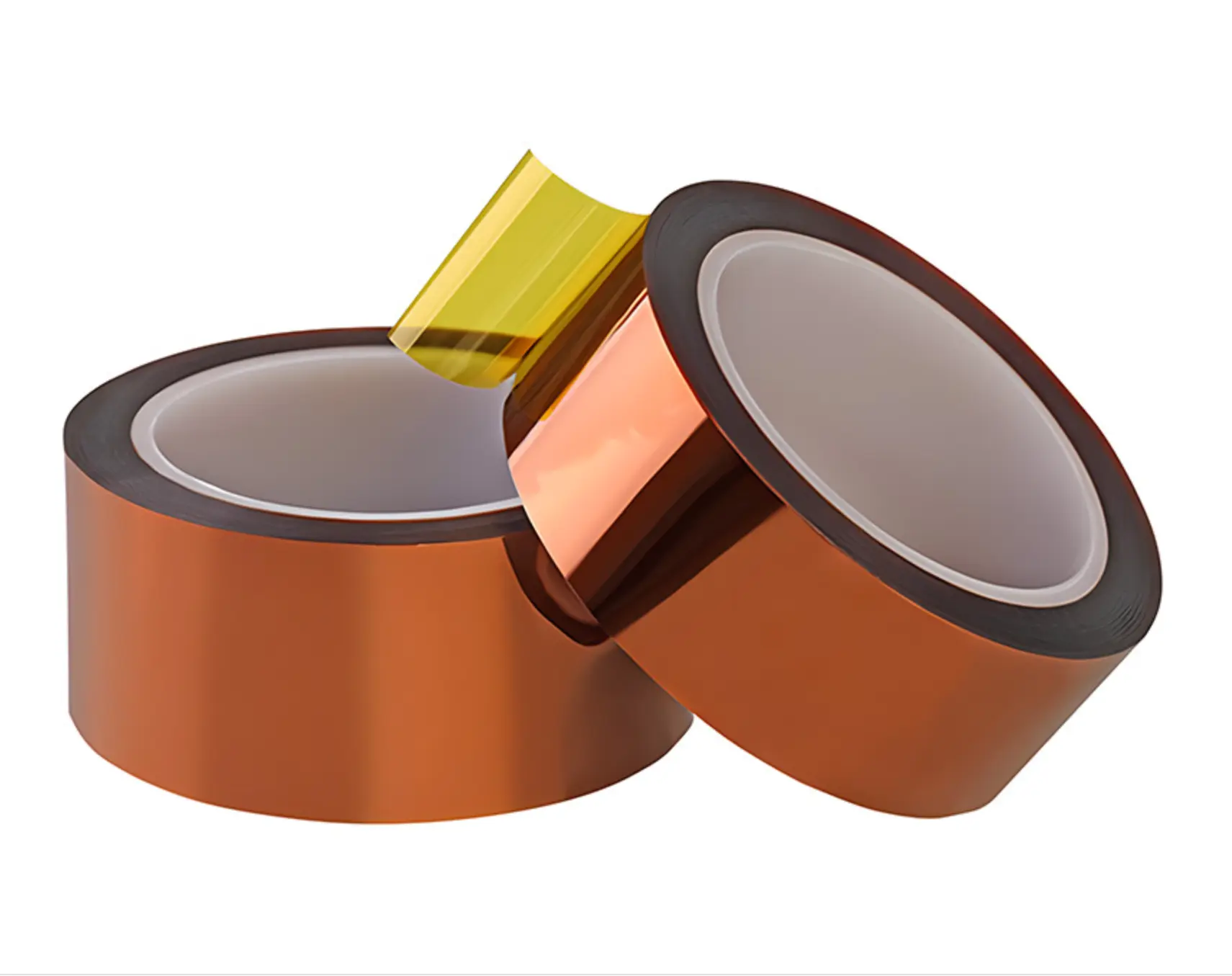

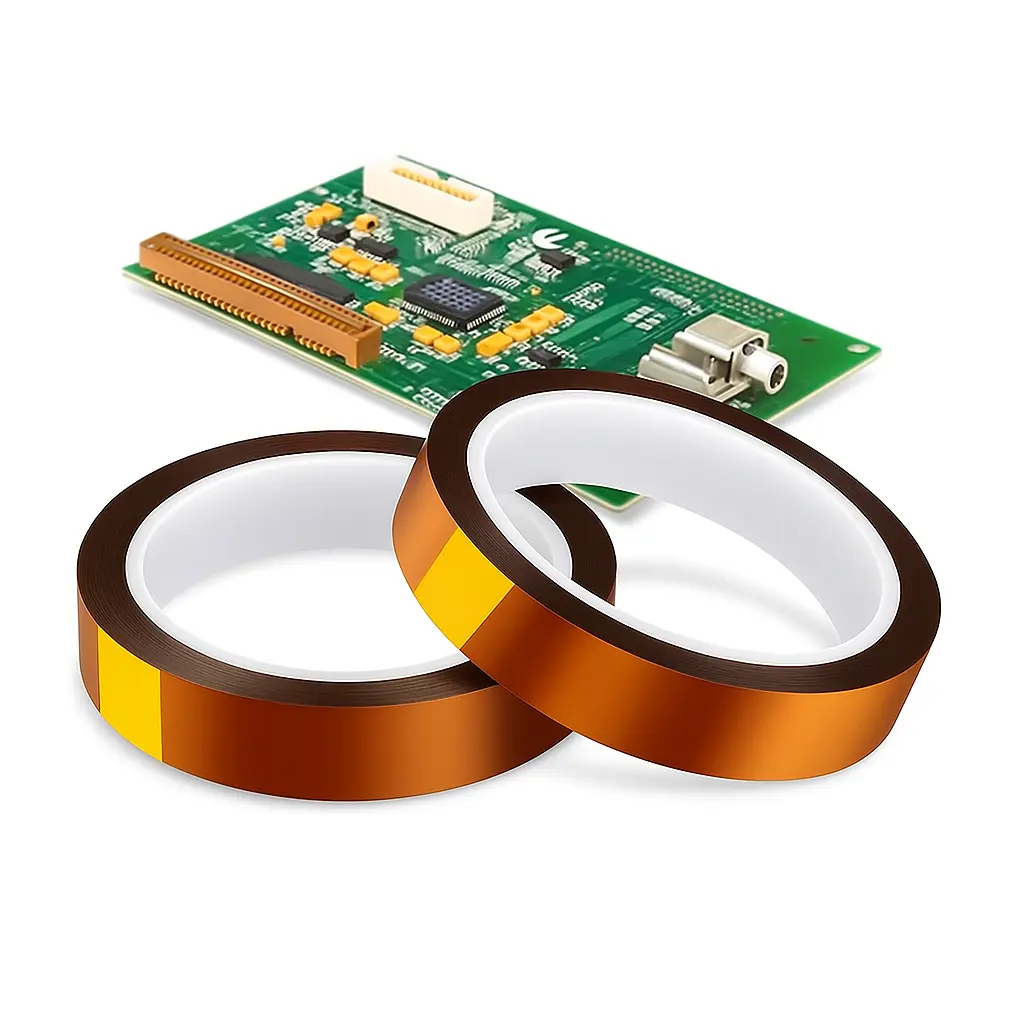

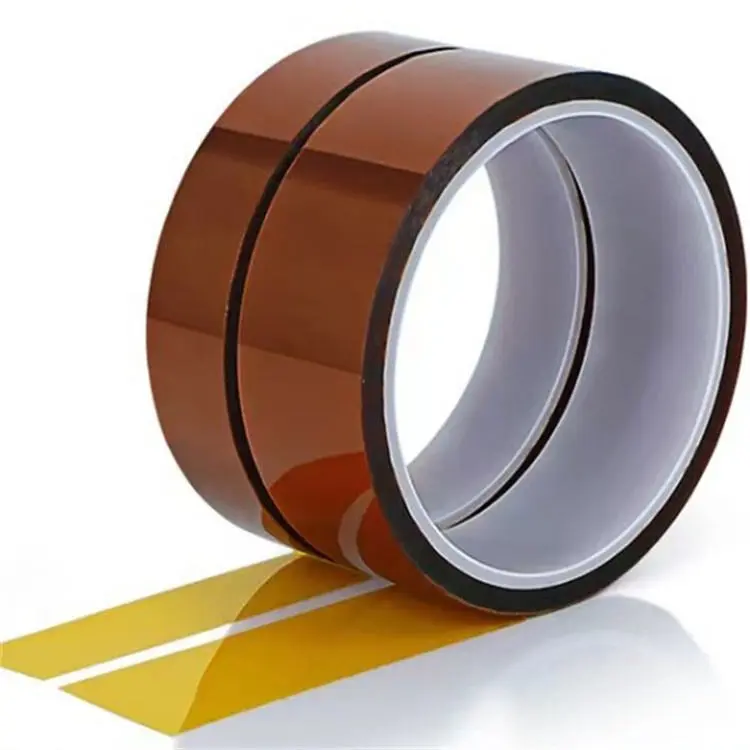

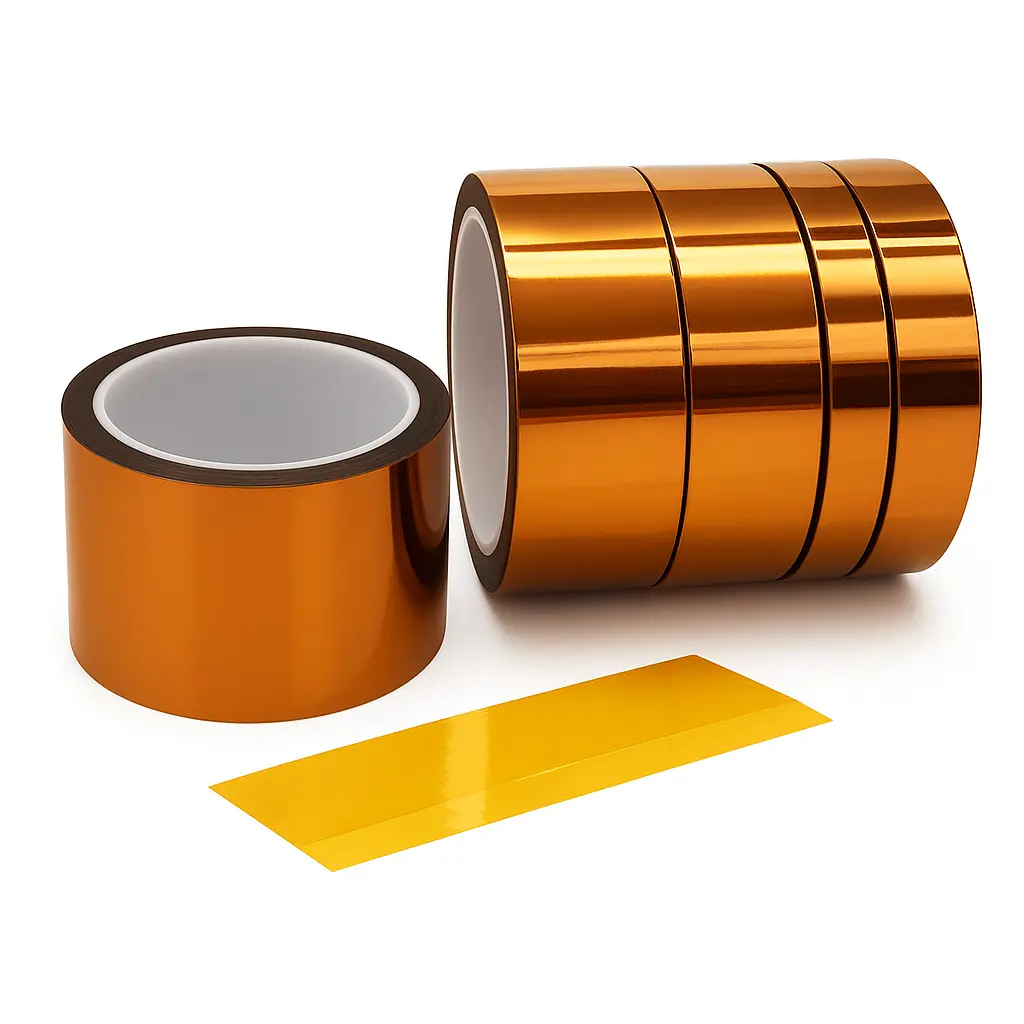

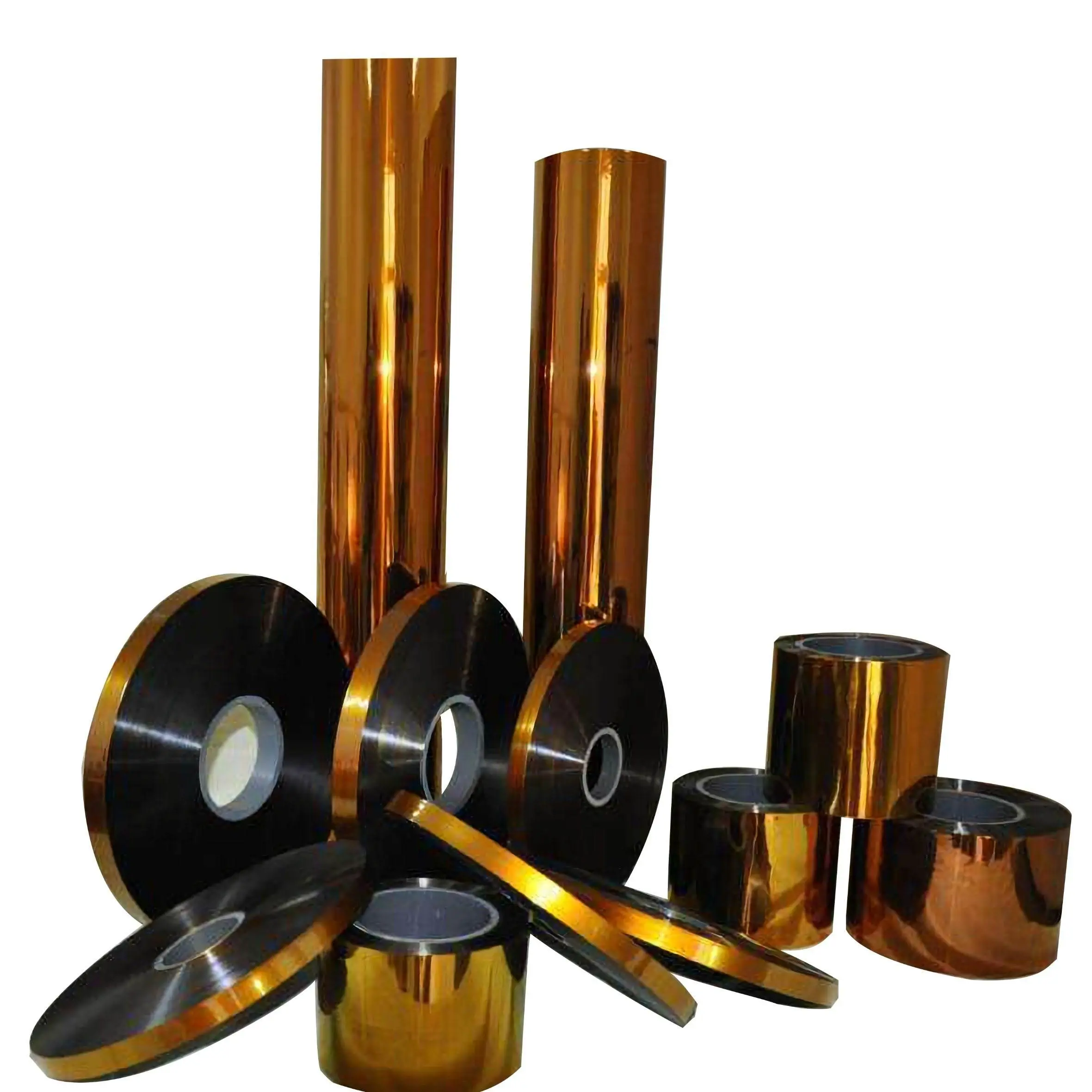

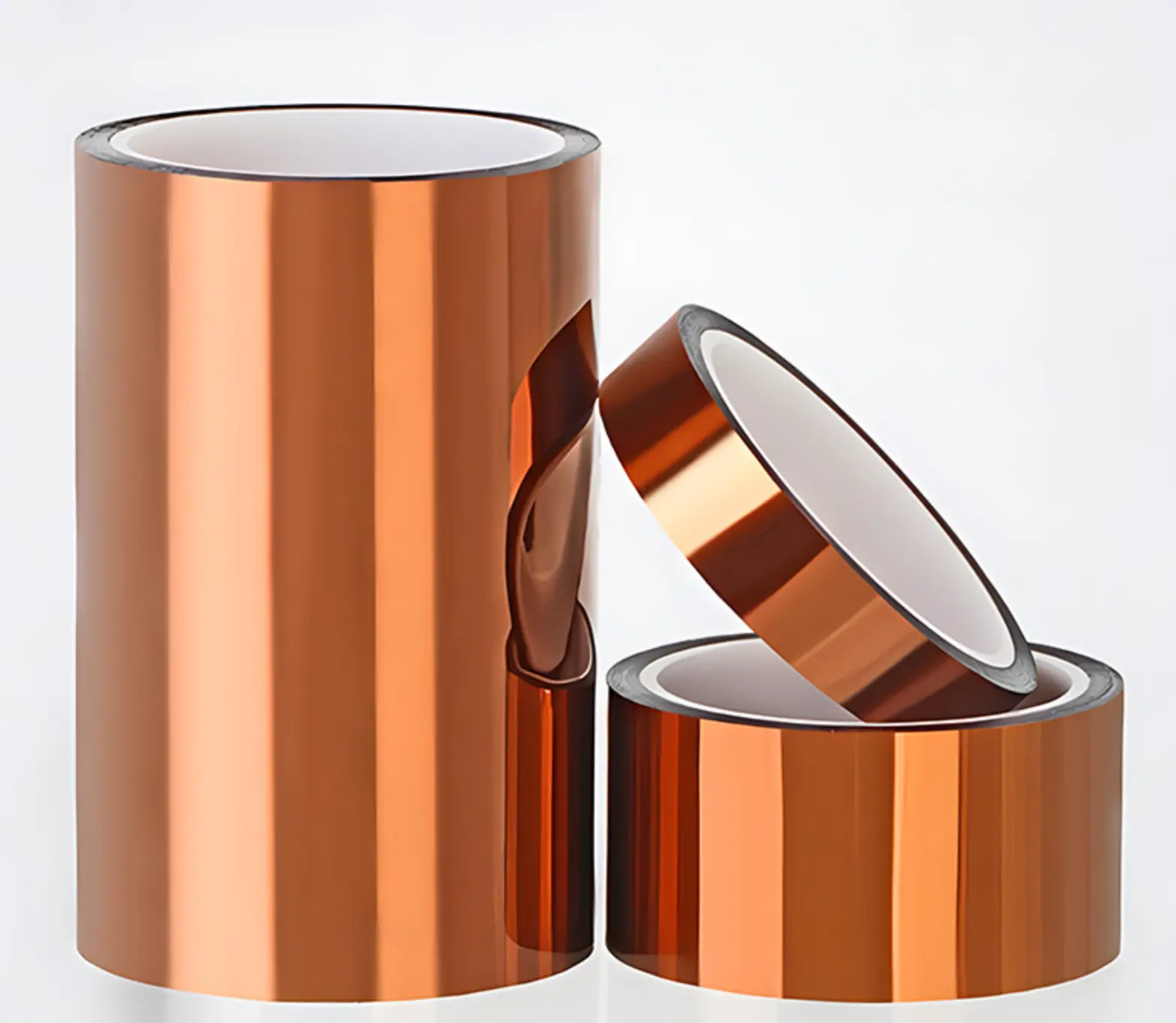

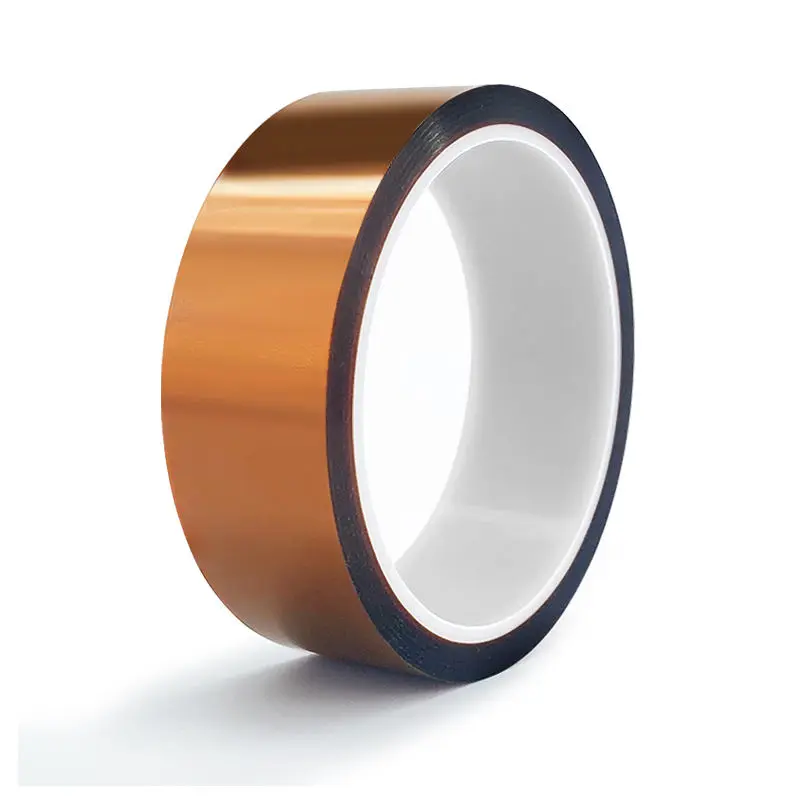

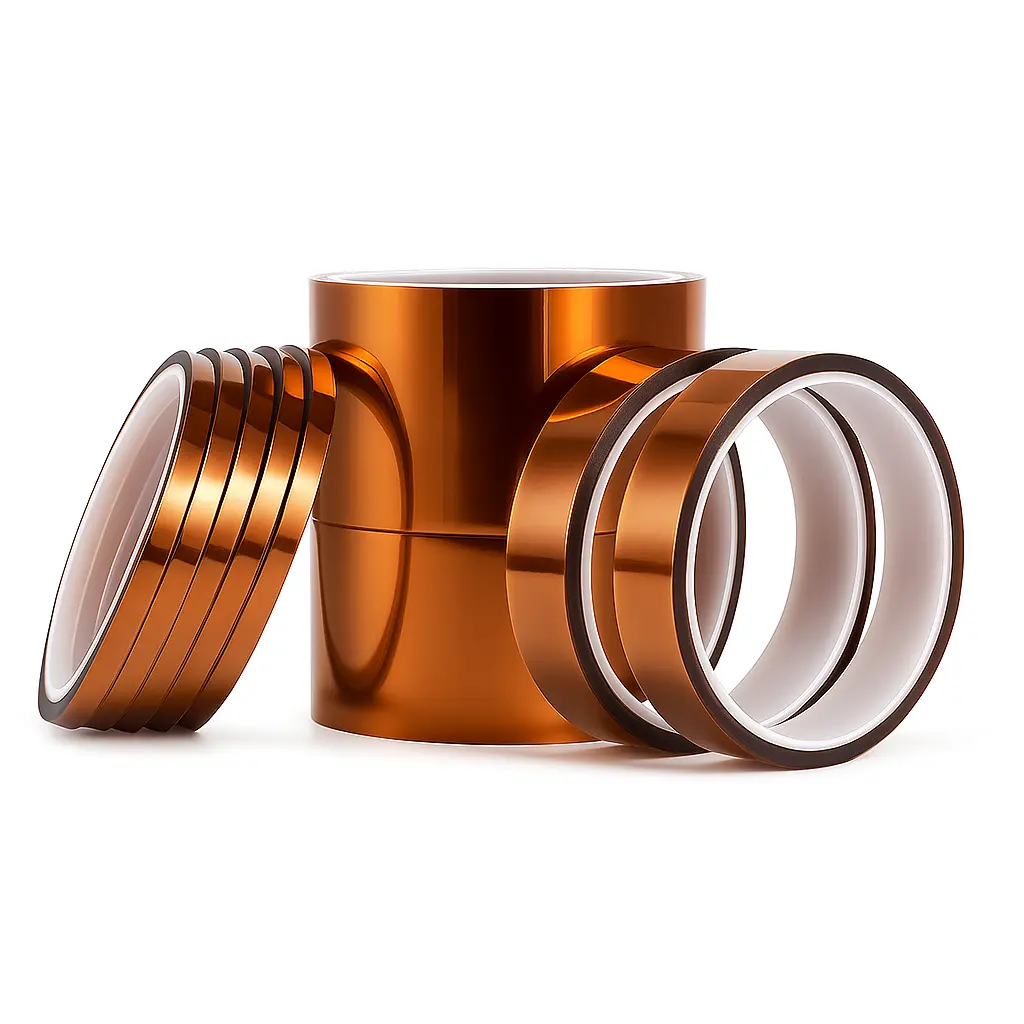

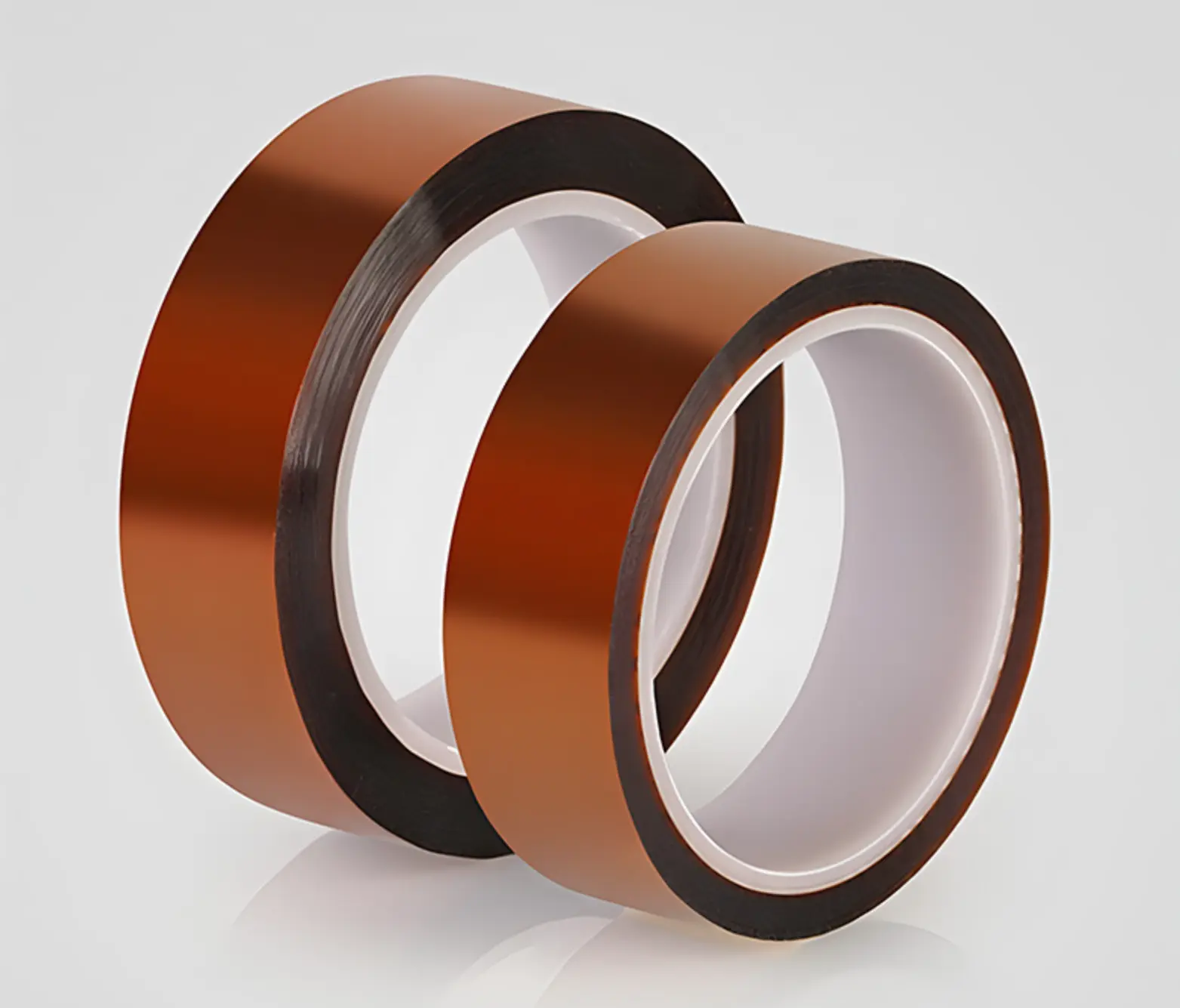

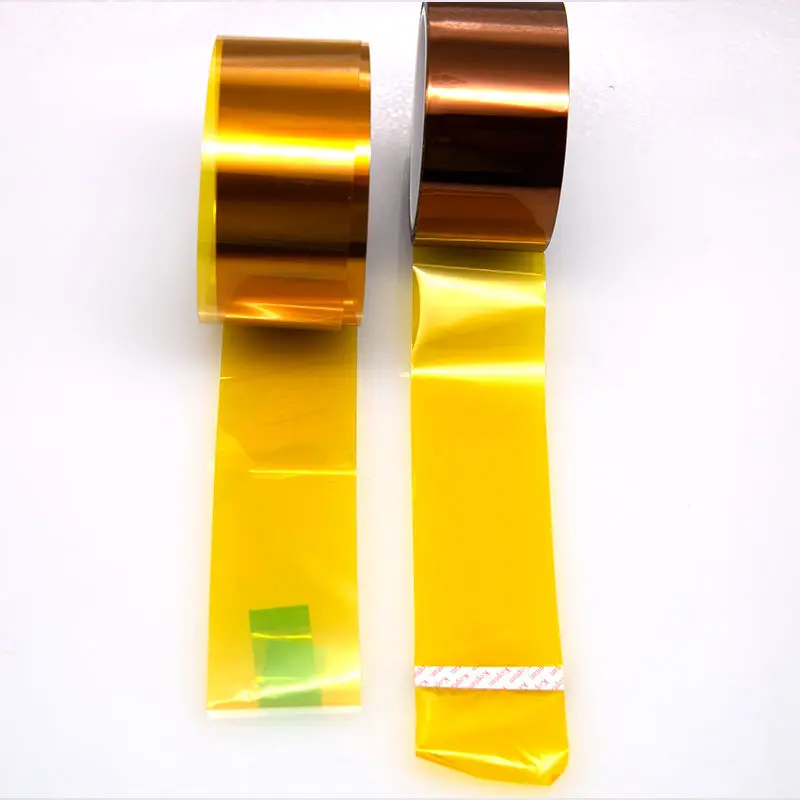

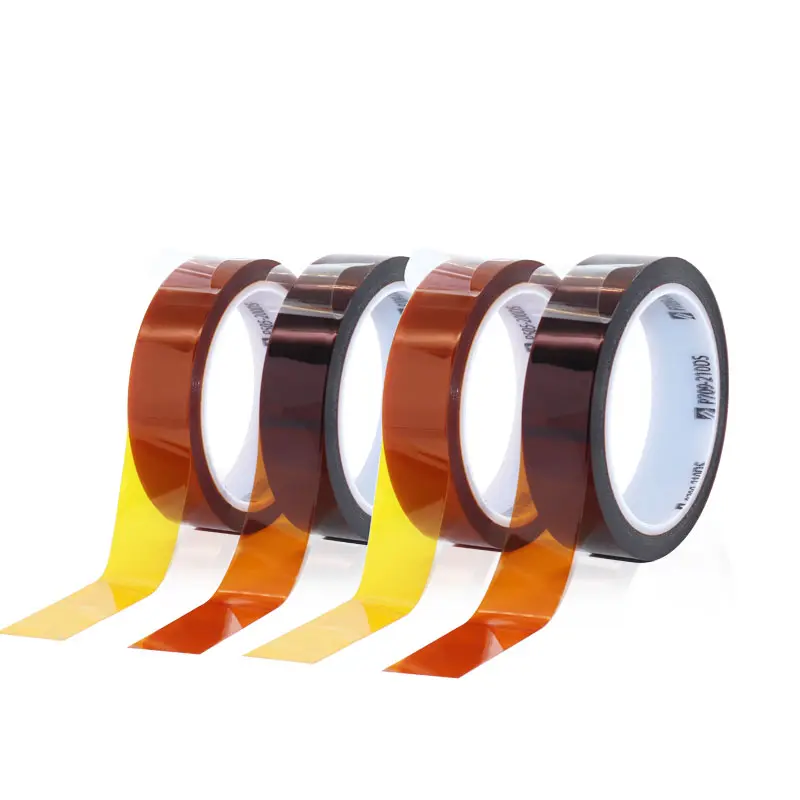

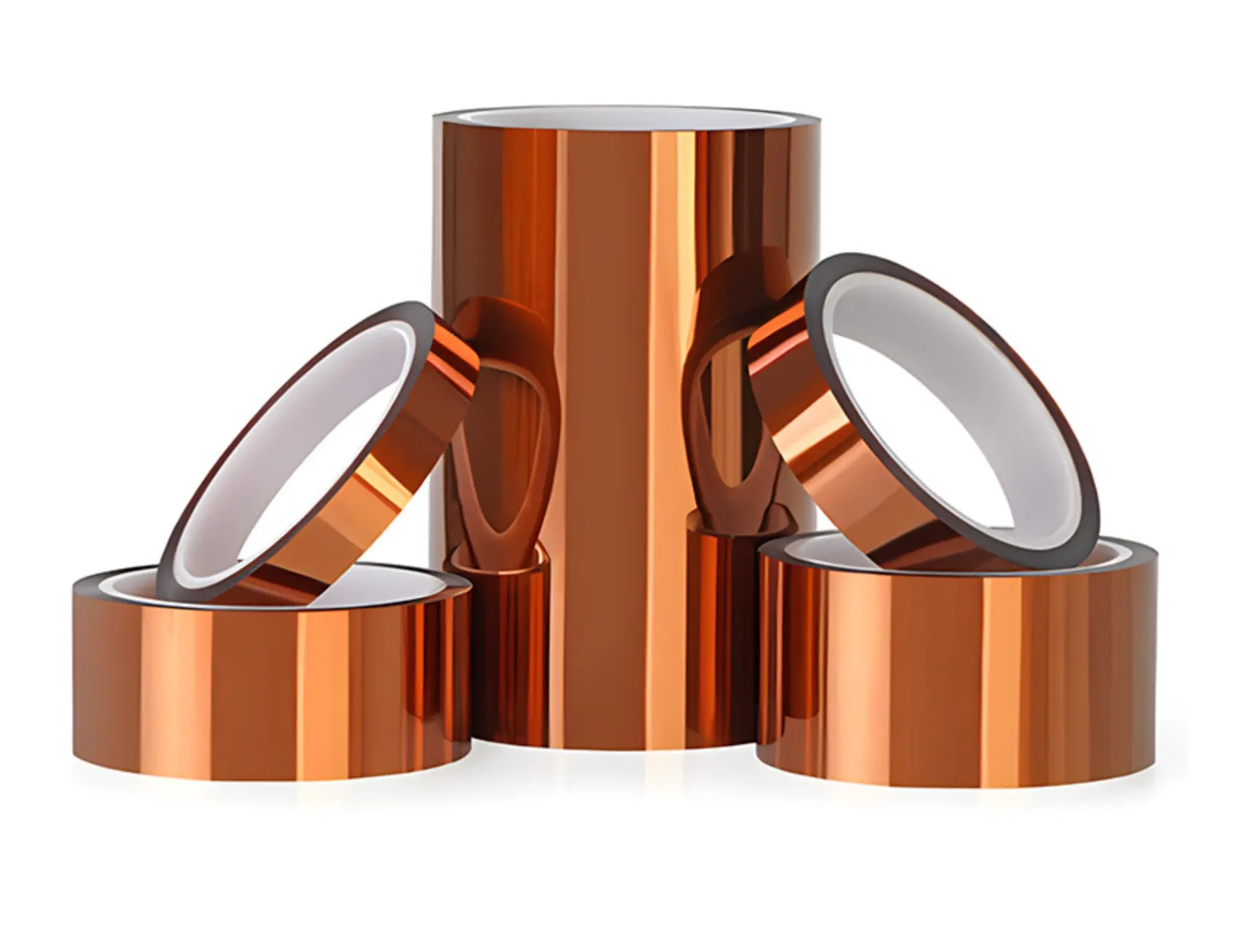

Kapton Tape Double Sided is a high-performance adhesive tape made from polyimide film coated with silicone adhesive on both sides. It is designed for applications requiring strong bonding, excellent heat resistance, and reliable electrical insulation in extreme environments.

Color: Amber、Black、Red、Green、Transparent
Thickness: 0.05mm to 0.2mm
Backing: Polyimide
Adhesive:Silicone
Width: 3mm to 500mm
Length: 33m | 36yd
Temperature resistance(℃): 3From -73 to 280
Core: 3in or 1.5in
Cutting: Any width
Samples: Free sample
Notice: Not for retail sale

Free sampling

Kapton double-sided tape Data Sheet

Technical Parameters	P120-50DS	P205-75DS	P205-100DS	P705-150DS	P505-200DS	P709-200DS
Color	Amber, Black, Red, Green, Transparent
Total Thickness [mm]	0.05	0.075	0.1	0.15	0.2	0.2
Total Thickness (μm)	50	75	100	150	200	200
Backing Thickness [mm]	0.012	0.025	0.025	0.075	0.05	0.075
Backing	PI	PI	PI	PI	PI	PI
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
180° Peel Strength [N/inch]	A≥6.5，B≥6	A≥6.5，B≥6	A≥10，B≥9	A≥10，B≥9	A≥11，B≥10	A≥11，B≥8
Tensile Strength [kg/25mm]	10	10	10	28	20	28
Elongation at Break [%]	30	45	45	60	60	60
Breakdown Voltage [KV]	2.5	5	5	9	5	9
Long-Term Temperature Resistance [°C]	260	260	260	260	260	260
Short-Term Temperature Resistance [°C]	280	280	280	280	280	280
Temperature resistance[°C]	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260

Silicone Adhesive Polyimide Film Silicone Adhesive

Double-sided polyimide tape Features

High temperature resists 280℃.
H-class insulation.
Strong tensile strength.
High-Temperature Resist, solvent resistant, stable and reliable.
Easy peel-off no glue residue.
Suitable for masking, protection, fixing, bonding, and insulation of products such as PCB and electronic manufacturing, FPC and flexible electronics, semiconductors and microelectronics.
Heat-resistant silicone adhesive polyimide tape
Offer sheet or roll material or die-cut processing.

Double-sided polyimide tape Applications

PCB gold finger masking & protection.
SMT component fixing before soldering.
Reflow & wave soldering temporary bonding.
FPC & Flexible Electronics stiffener bonding.
Semiconductor & Microelectronics bonding insulation.
Wafer handling & temporary bonding.
Chip packaging insulation.
Motor, Transformer & Electrical Insulation.
Tab fixing and terminal protection.

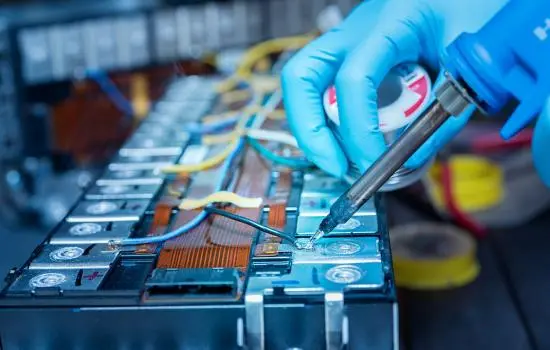

EV battery module assembly.
Automotive Electronics ECU module insulation.
Sensor and control unit bonding.

Kapton Tape TDS

Download

Coating jumbo rolls
Slitting or cutting to small rolls
Rewinding liner
Cutting width required by the customers
Die-cutting to the drawings of the customers
Laminate other materials
Free samples based on freight collect

High Temperature Polyimide Tape

Heat Resistant Masking Tape

Wave Soldering Protection，Provides excellent adhesion under molten solder exposure, preventing solder bridging and contamination on protected areas.

Polyimide Protection Tape

Gold Finger Masking Offers precise edge definition and clean removal, leaving no residue on PCB edge connectors after plating or soldering.

Polyimide Double Coated Tape

SMT Component Fixing Maintains stable holding strength at high temperatures, keeping small components in place during automated soldering.

Double Coated Polyimide Tape

FPC Reinforcement Enhances mechanical strength in bending areas while maintaining flexibility and heat resistance for dynamic circuits.

Polyimide Double Sided Tape

FPC Stiffener Bonding Ensures reliable bonding between polyimide stiffeners and flexible circuits during lamination and thermal processing.

Polyimide Adhesive Tape

Lithium Battery Insulation Provides high dielectric strength and thermal stability, protecting battery tabs and cells from short circuits and heat damage.

Thermal Resistant PI Tape

Thermal Resistant PI Tape offers consistent performance under high thermal stress, withstanding temperatures up to 260°C. It is used for thermal insulation, electrical protection, and high-temperature masking.

Kapton Equivalent Polyimide Tape

Motor and Transformer Insulation，Delivers excellent electrical insulation and thermal endurance for coil wrapping and slot liner fixing.

Electronic Grade Polyimide Tape

Electronic Grade Polyimide Tape is designed for precision electronics applications, offering high dielectric strength, low outgassing, and heat resistance up to 260°C. It is used for PCB assembly and electronic component protection.

Dielectric Polyimide Tape

Dielectric Polyimide Tape delivers strong electrical insulation with high dielectric strength and thermal resistance up to 260°C. It is suitable for insulating conductive components in electronic systems.

Silicone Adhesive Polyimide Tape

Silicone Adhesive Polyimide Tape combines polyimide film with silicone adhesive, allowing stable performance from -50°C to 260°C and clean removal after high-temperature exposure. It is ideal for electronics and soldering applications.

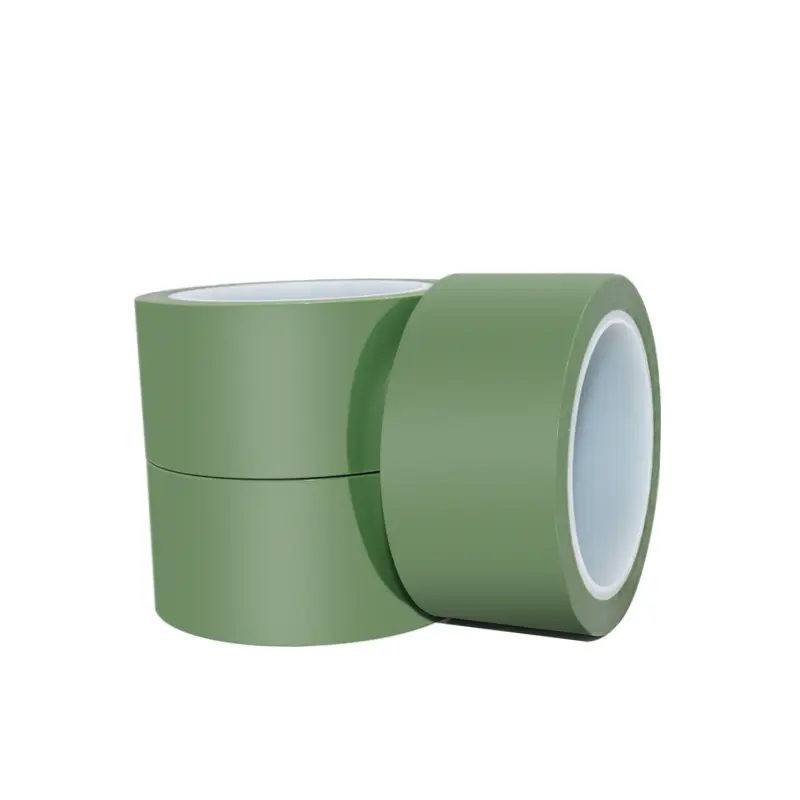

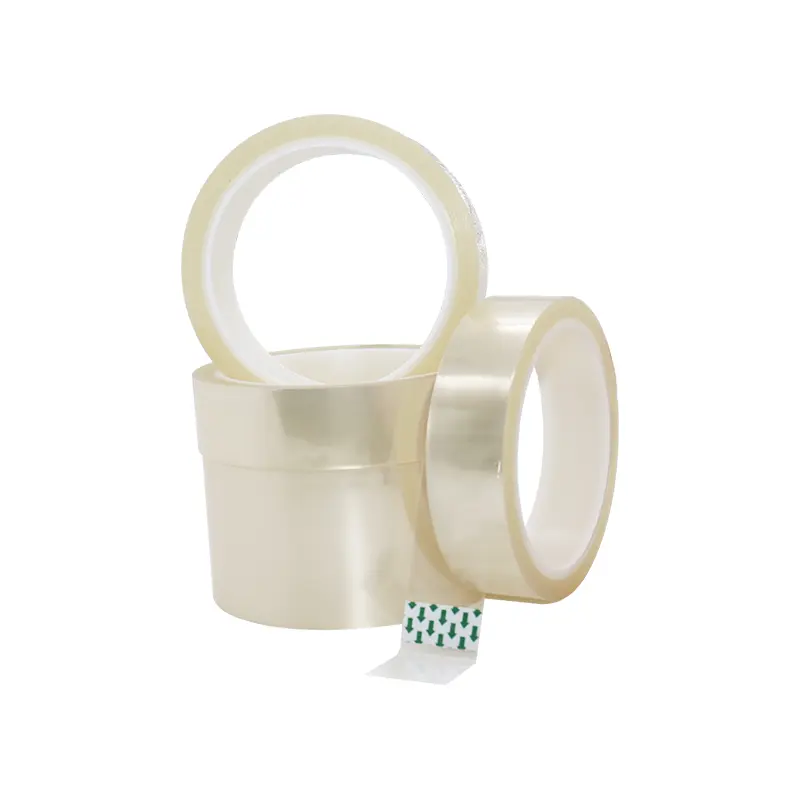

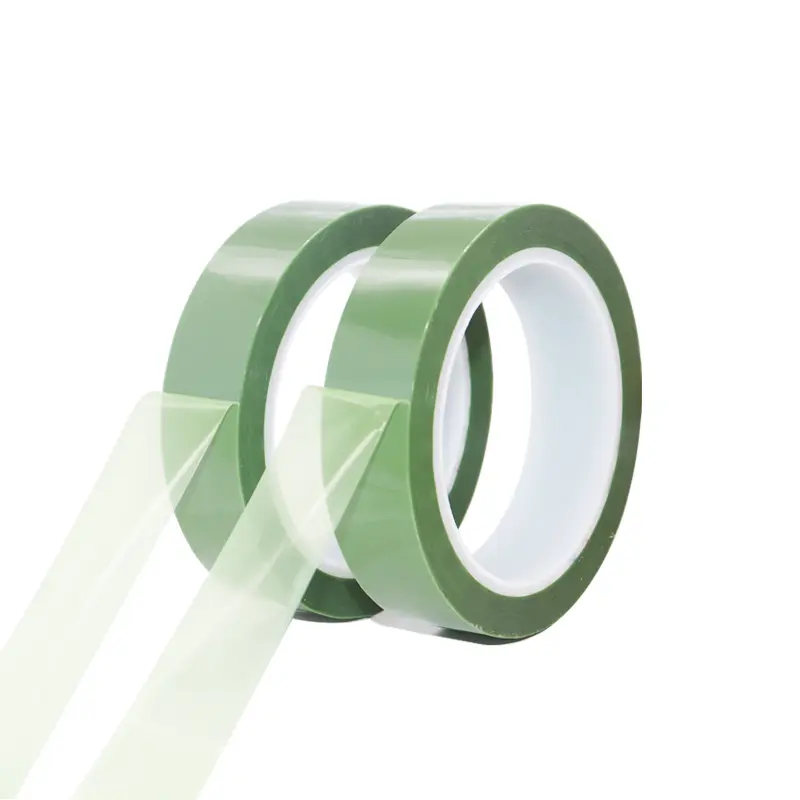

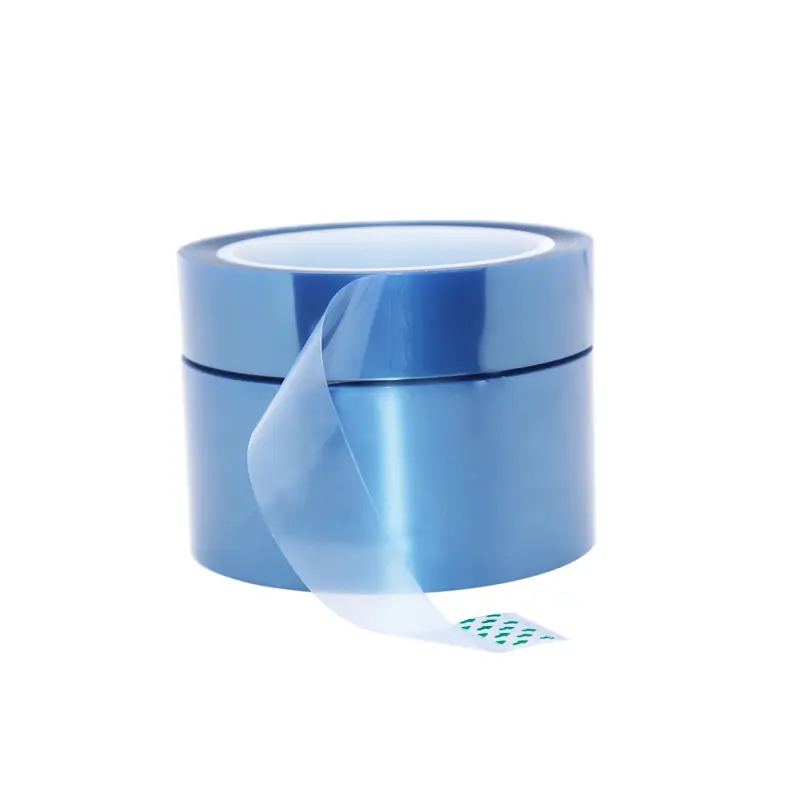

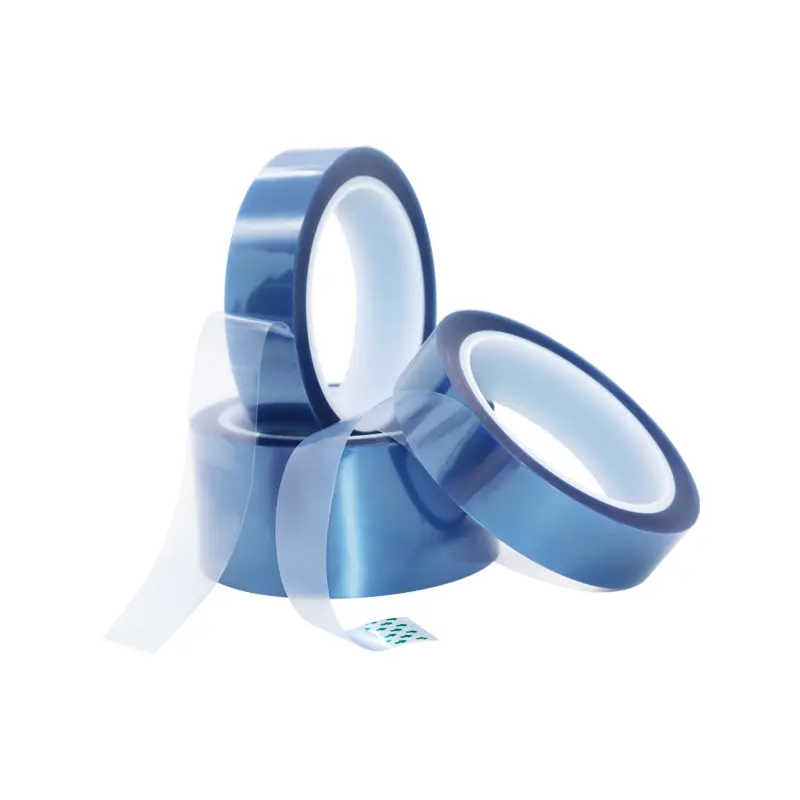

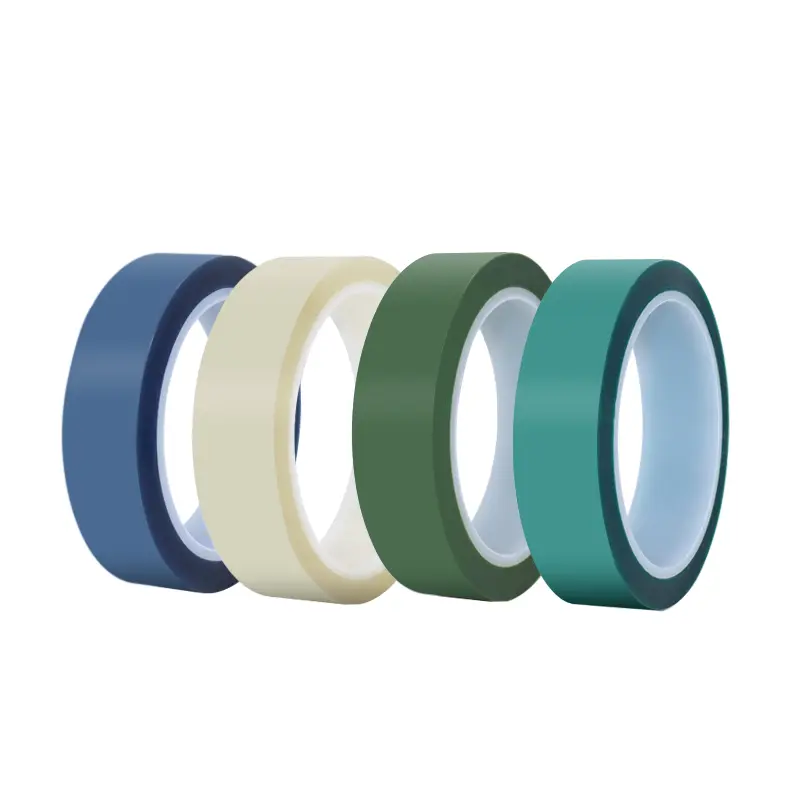

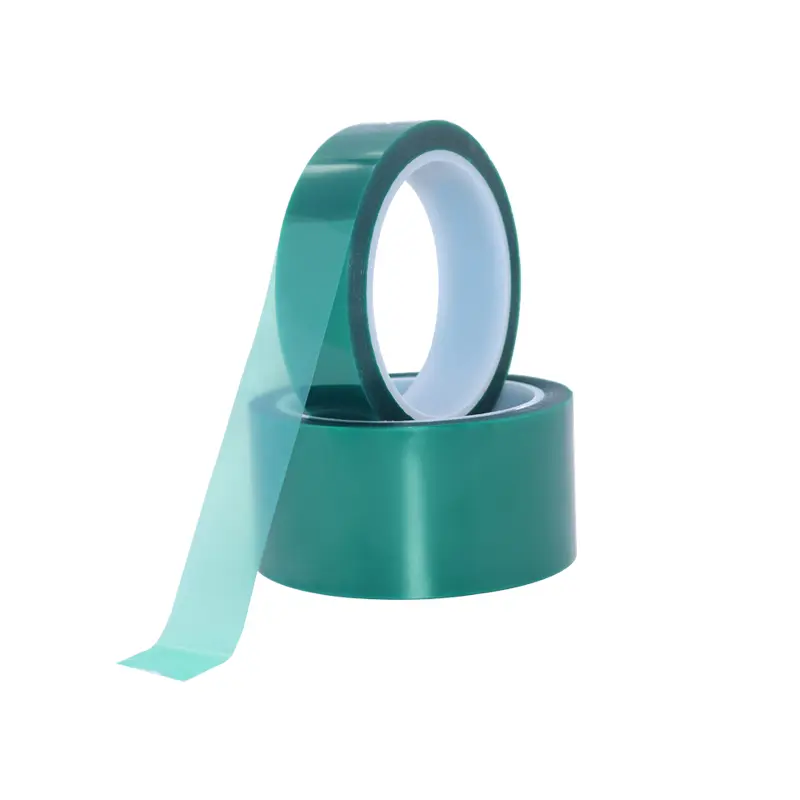

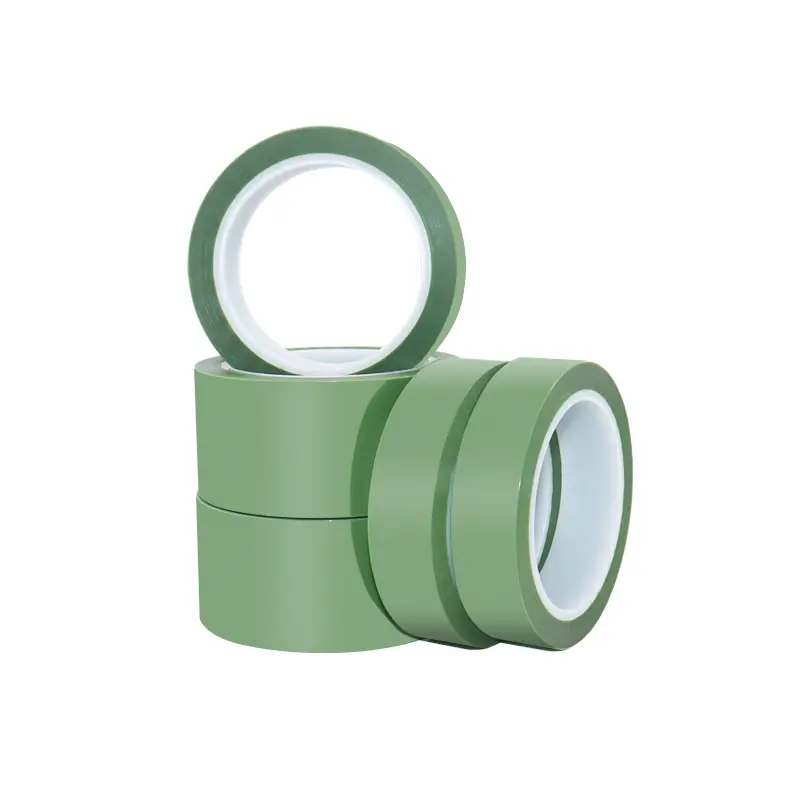

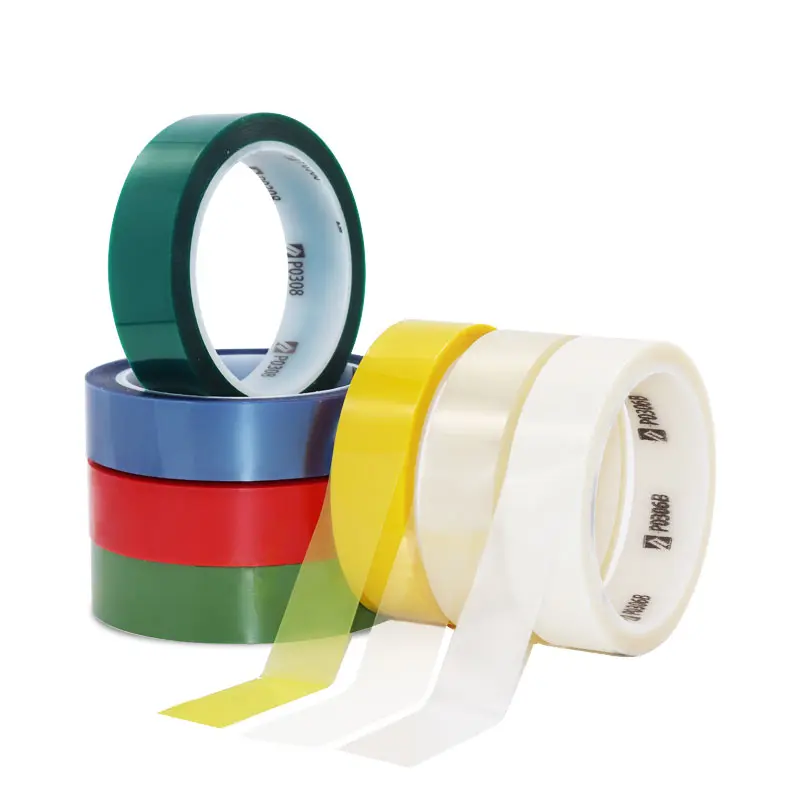

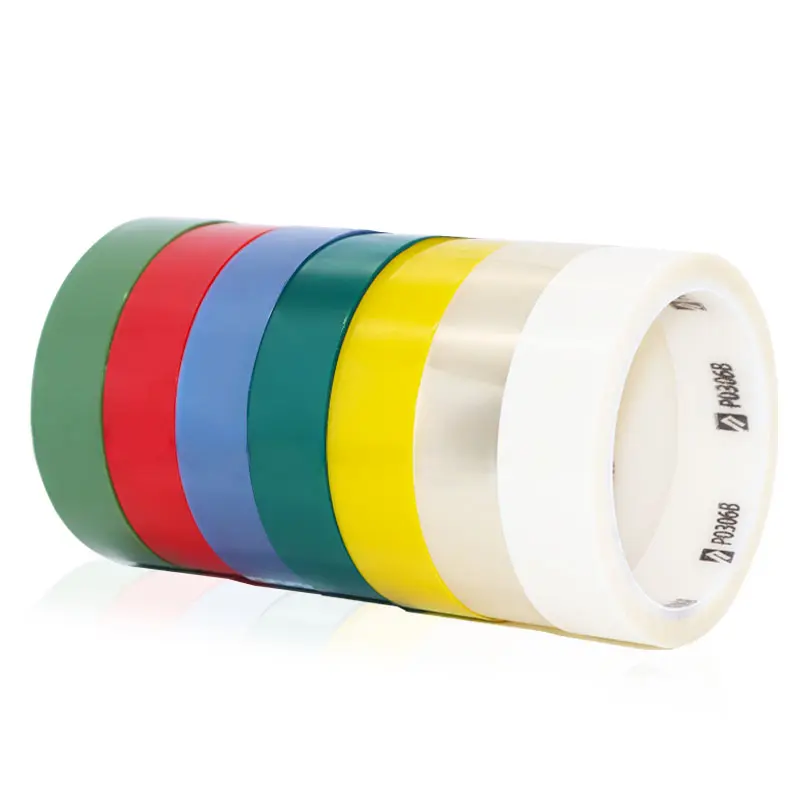

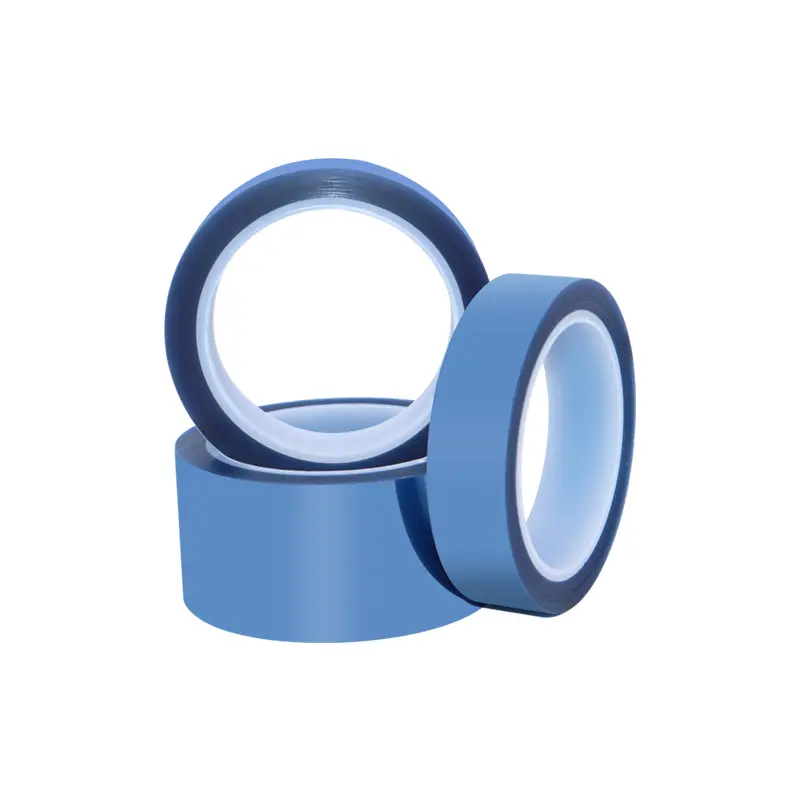

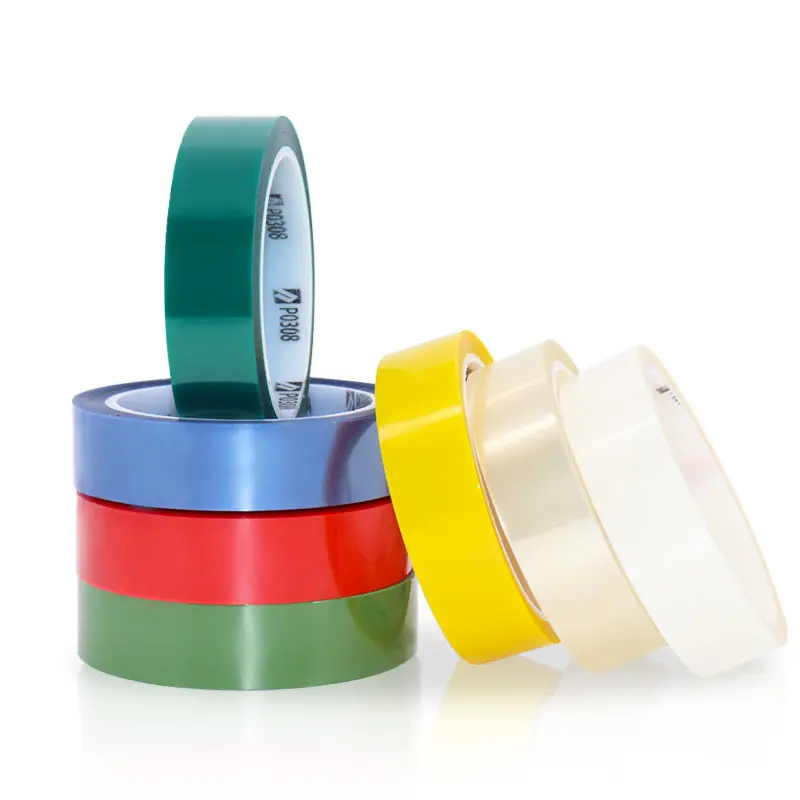

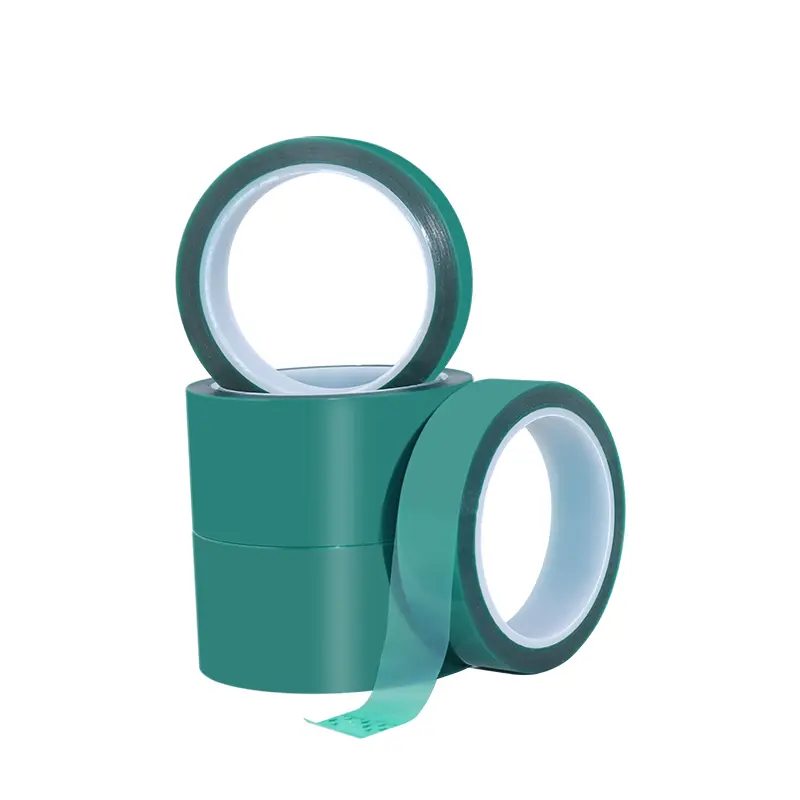

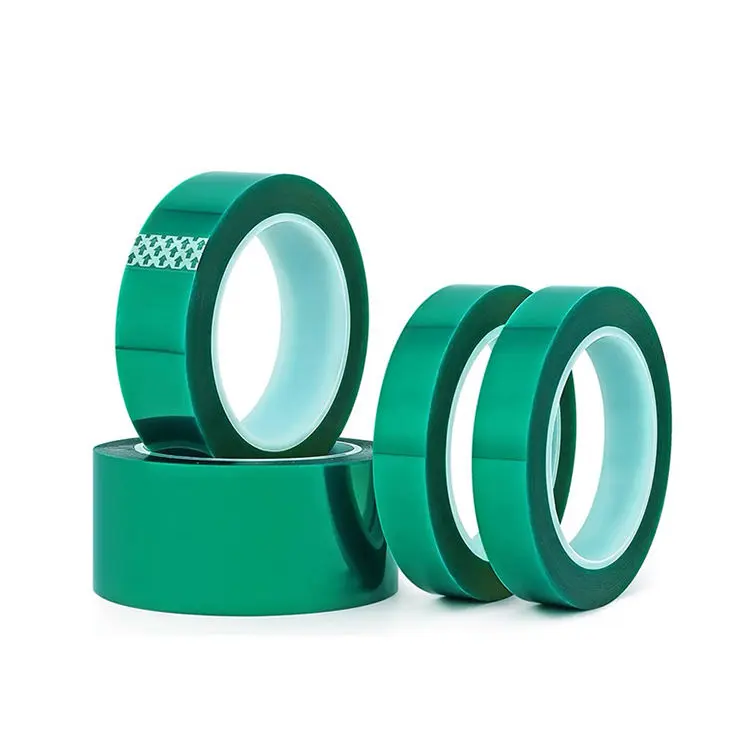

PET high temperature tape has the characteristics of high temperature resistance, not easy to break when connecting, high adhesion, soft and appropriate, no glue residue after tearing off, acid and alkali resistance, corrosion resistance, and leakage prevention.

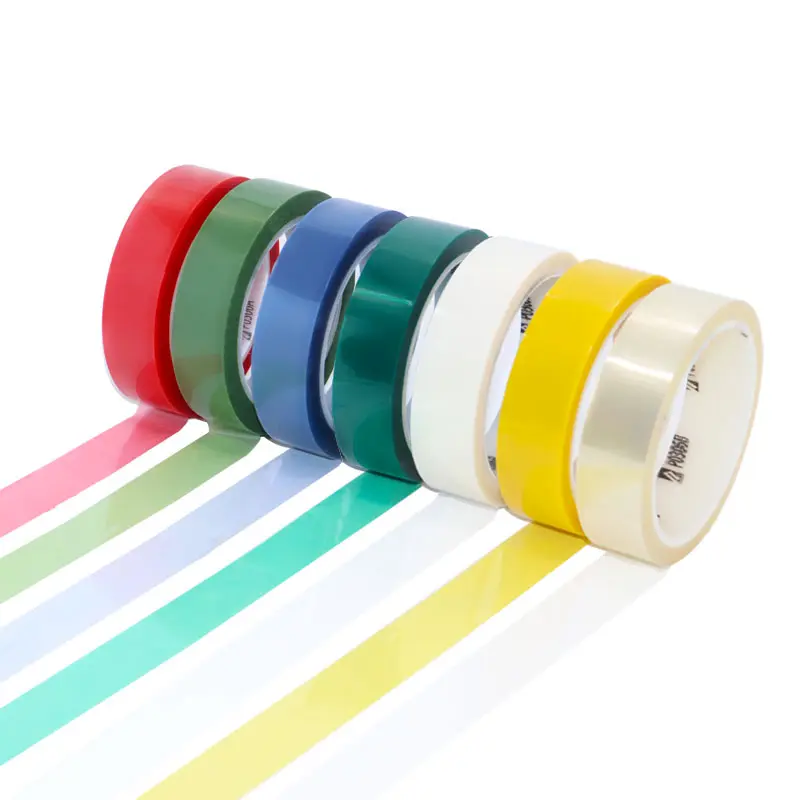

Color: Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue
Thickness: From 0.06mm to 0.1mm
Backing: PET
Adhesive: Silicone
Width: 3mm to 500mm
Length: 33m | 36yd
Core: 3in or 1.5in
Cutting: Any width
Temperature resistance(℃): From -73 to 200
Samples: Free
Notice: Not for retail sale

Free sampling

PET high temperature tape Data Sheet

Technical Parameters	P0306	P0306A	P0306B	P0307	P0308	P0309	P03095	P0312	P0315	P0306E	P0310GDS
Color	Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue (Customizable)
Total Thickness [mm]	0.06	0.055	0.06	0.07	0.08	0.09	0.95	0.12	0.15	0.06	0.1
Total Thickness (μm)	60	55	60	70	80	90	95	120	150	60	100
Backing Thickness [mm]	0.025	0.038	0.038	0.025	0.05	0.05	0.025	0.075	0.1	0.025	0.025
Backing	PET	PET	PET	PET	PET	PET	PET	PET	PET	PET	PET
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
180° Peel Strength [N/inch]	8	8	8	8	7.5	10	8	11	10	6	A>1000 B>1100
Tensile Strength[N/inch]	135	150	150	150	150	150	150	175	200	135	135
Elongation at Break [%]	70	70	70	70	70	70	70	70	70	70	70
Long-Term Temperature Resistance [°C]	180	180	180	180	180	180	180	180	180	180	180
Short-Term Temperature Resistance [°C]	200	200	200	200	200	200	200	200	200	200	200
Temperature resistance[°C]	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200	-50/200

Silicone pressure-sensitive adhesive Priming coat PET

PET High Temperature Tape Features

Excellent High Temperature Resistance typically withstanding continuous exposure up to 180°C and short-term peaks at even higher temperatures.
Clean Removal without Residue，Designed for easy and clean removal after thermal processing, leaving no adhesive residue or surface contamination on metals, glass, or electronic substrates.
Superior Dimensional Stability PET film backing exhibits low thermal shrinkage, ensuring the tape does not curl, deform, or lift during high-temperature operations.
Low Outgassing and Low Ionic Content，The silicone adhesive system features low volatility and minimal outgassing, making it suitable for sensitive electronic, optical, and solar manufacturing processes.
Stable Adhesion at Elevated Temperatures，Provides consistent adhesion during heating cycles without excessive bonding, allowing reliable fixation while maintaining removability.
Excellent Electrical Insulation Properties，PET film offers strong dielectric strength, supporting applications requiring electrical insulation in high-temperature environments.
High Mechanical Strength and Tear Resistance，The polyester backing ensures durability during handling, automated processing, and die-cutting operations.
Wide Substrate Compatibility，Adheres well to metals, glass, ceramics, and smooth plastic surfaces commonly used in electronics and industrial manufacturing.

PET High Temperature Tape Applications

SMT reflow soldering processes.

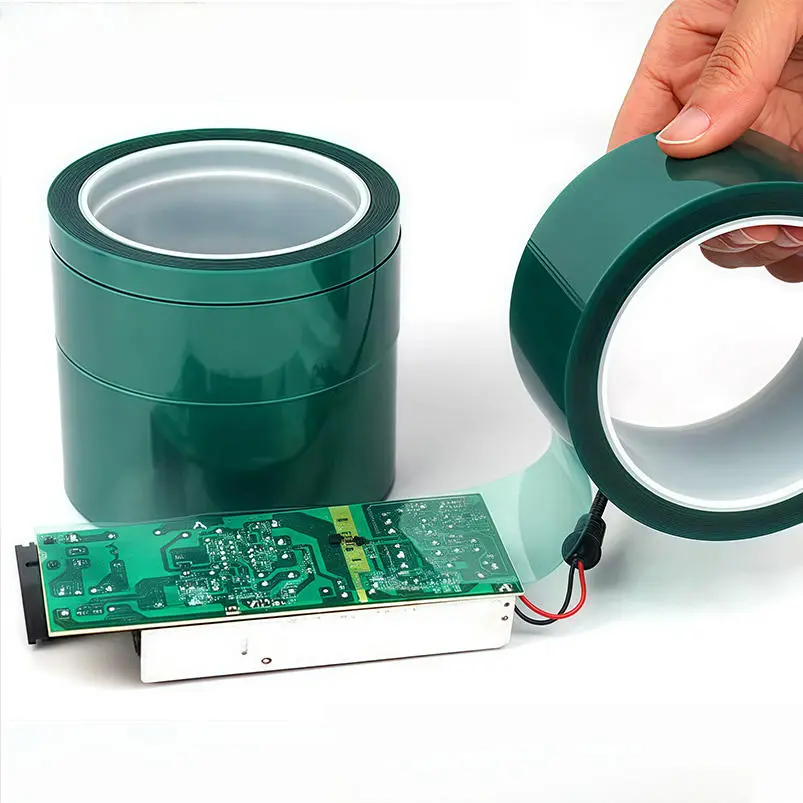

PCB and component masking.
Powder coating and plating masking.
Solar module and battery manufacturing.
High-temperature industrial processing.

Icon PET High Temperature Tape TDS

Download

Coating jumbo rolls
Slitting or cutting to small rolls
Rewinding liner
Cutting width required by the customers
Die-cutting to the drawings of the customers
Laminate other materials
Free samples based on freight collect

PET High Temperature Tape

PET High Temperature Tape is designed for demanding industrial and electronic applications, offering excellent heat resistance, dimensional stability, and reliable adhesion under elevated temperatures.

High Temperature PET Tape

High Temperature PET Tape provides stable performance during high-heat processes such as SMT reflow and industrial masking, ensuring clean removal without residue or surface contamination.

Polyester High Temperature Tape

Polyester High Temperature Tape uses PET film as the backing material, combining thermal resistance, mechanical strength, and consistent quality for mass production environments.

Heat Resistant PET Tape

Heat Resistant PET Tape is suitable for applications requiring controlled adhesion at high temperatures, maintaining bonding strength while preventing deformation or adhesive transfer.

High Heat Resistant Polyester Tape

High Heat Resistant Polyester Tape is engineered for continuous exposure to elevated temperatures, making it ideal for electronics manufacturing, insulation, and precision masking operations.

Industrial High Temperature PET Tape

Industrial High Temperature PET Tape is developed for heavy-duty manufacturing processes, offering reliable performance, low shrinkage, and compatibility with automated production lines.

Electronic Grade PET Tape

Electronic Grade PET Tape meets the stringent requirements of electronic assembly, featuring low outgassing, stable adhesion, and excellent performance during soldering and reflow processes.

PET Tape for High Temperature Applications

PET Tape for High Temperature Applications is widely used in electronics, automotive, and industrial sectors where thermal resistance and surface protection are critical.

PET Insulation Tape High Temperature

PET Insulation Tape High Temperature provides effective electrical insulation and thermal stability, making it suitable for motors, transformers, and electronic component protection.

High Temperature Masking PET Tape

High Temperature Masking PET Tape is ideal for protecting surfaces during high-heat processes such as powder coating, plating, and wave soldering, with clean and residue-free removal.

PET Tape for SMT Reflow

PET Tape for SMT Reflow is designed to withstand short-term high temperatures during reflow soldering, ensuring components remain secure without adhesive failure or contamination.

PET Tape for PCB Masking

PET Tape for PCB Masking offers precise masking performance, protecting sensitive areas during soldering and assembly while maintaining excellent heat resistance and dimensional stability.

PET Tape for Powder Coating Masking

PET Tape for Powder Coating Masking delivers reliable adhesion and clean removal under high curing temperatures, ensuring sharp masking lines and consistent coating quality.

PET Tape for Solar Module Manufacturing

PET Tape for Solar Module Manufacturing is used for positioning and temporary fixation during module assembly, offering thermal stability, low residue, and compatibility with lamination processes.

PET Tape with Silicone Adhesive

PET Tape with Silicone Adhesive provides superior high-temperature resistance and clean release, making it suitable for applications requiring easy removal after thermal processing.

PET Tape with Acrylic Adhesive

PET Tape with Acrylic Adhesive offers balanced adhesion strength, cost efficiency, and thermal performance, ideal for long-term industrial use and high-volume manufacturing applications.

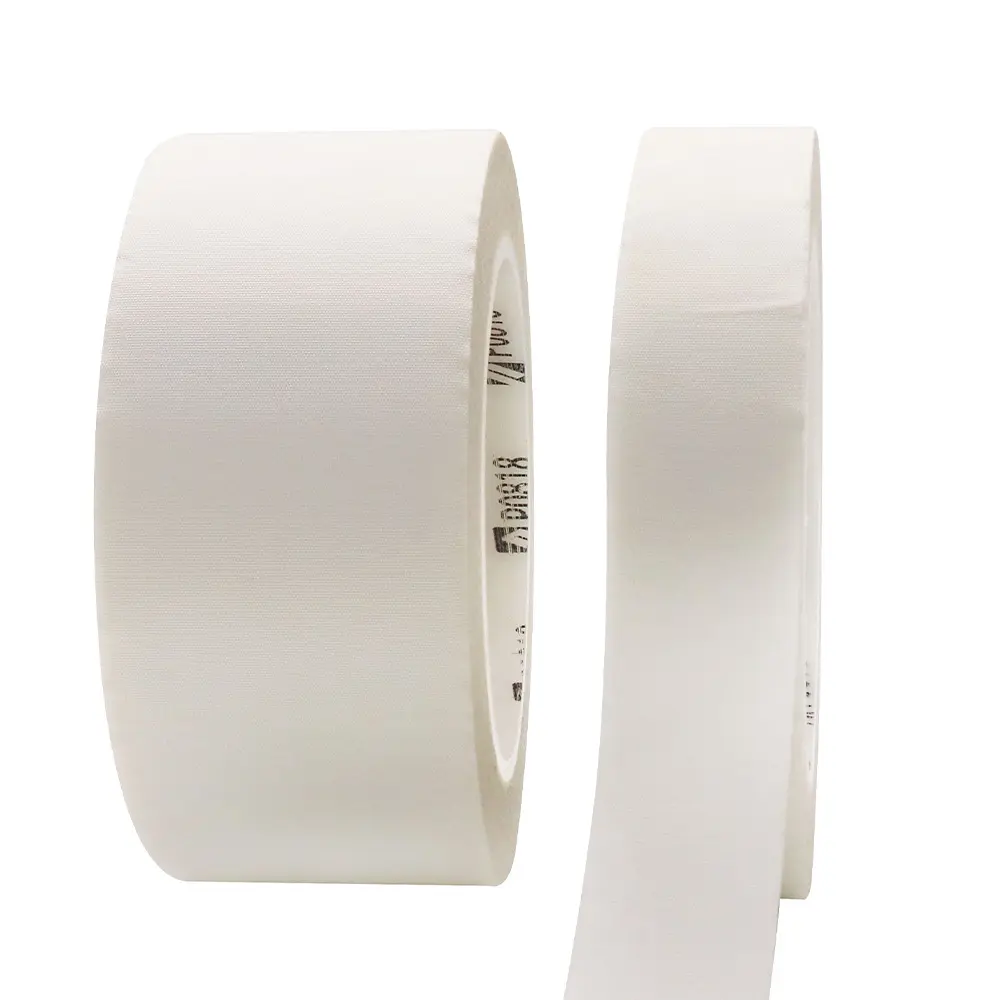

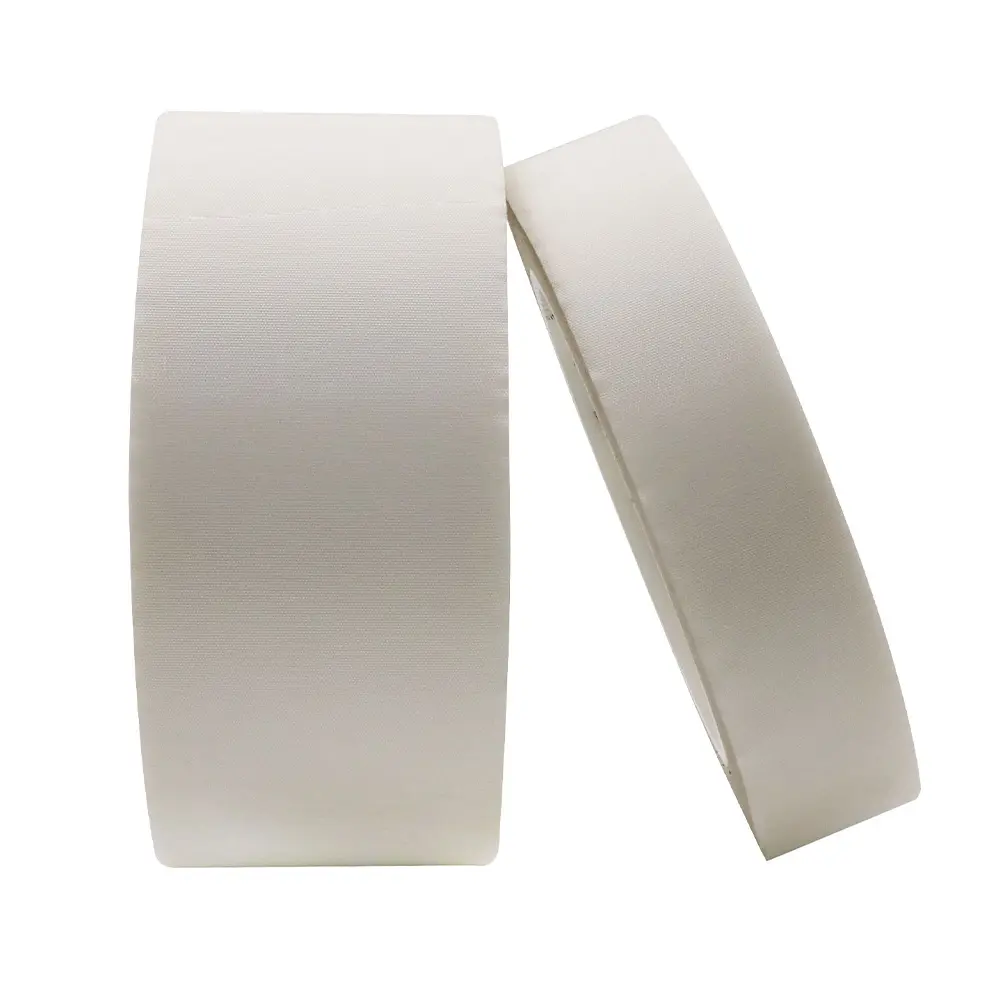

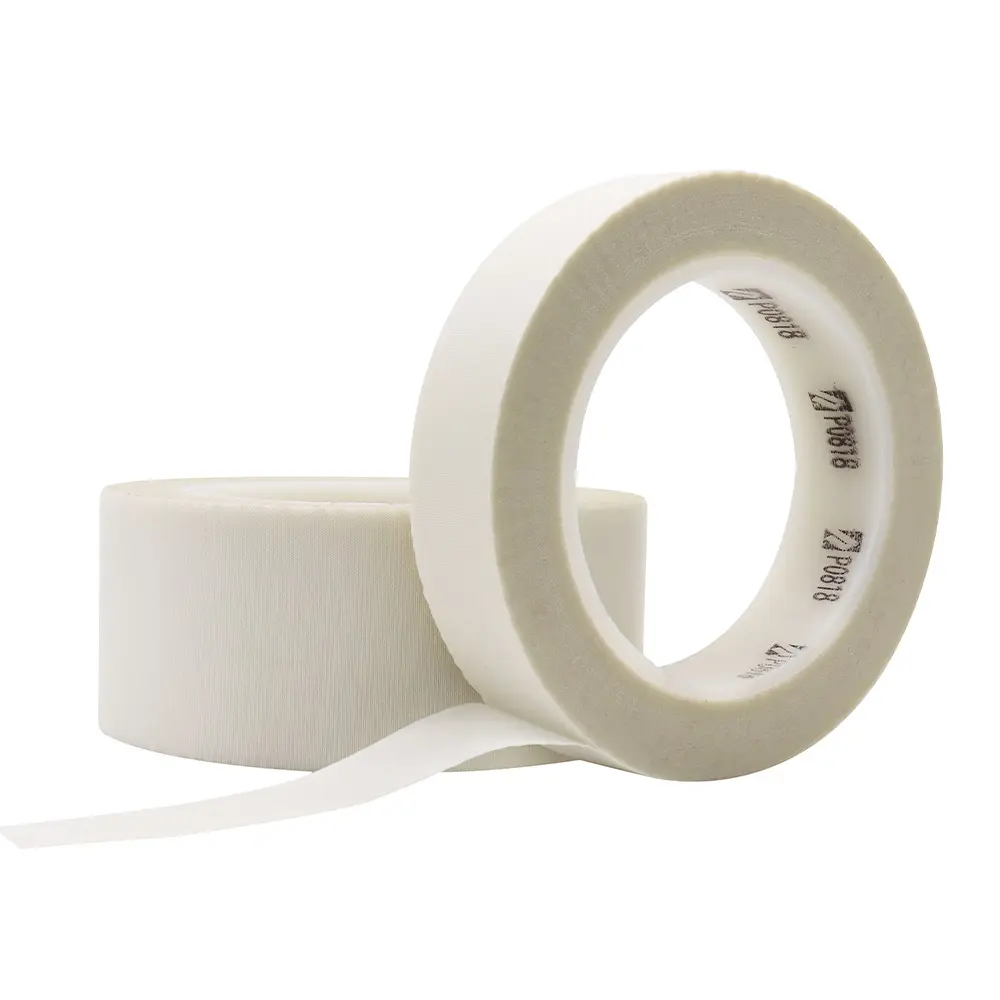

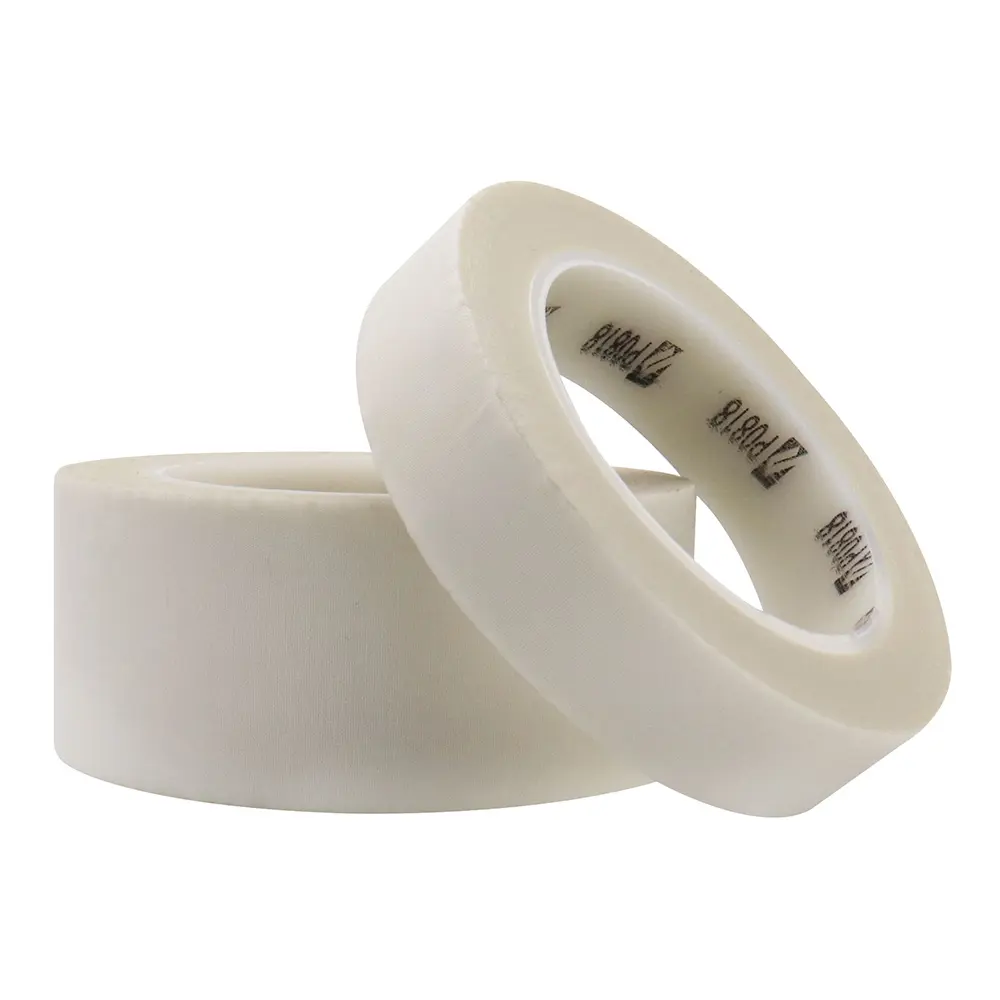

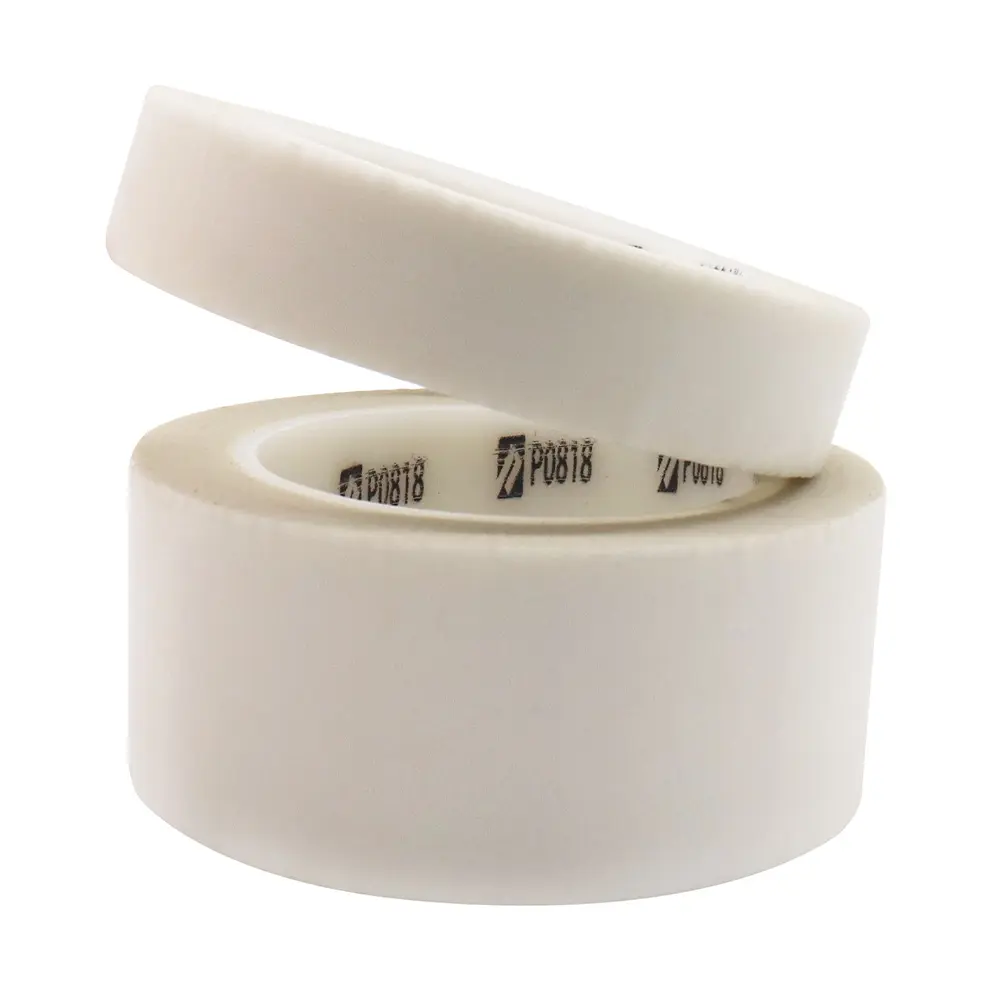

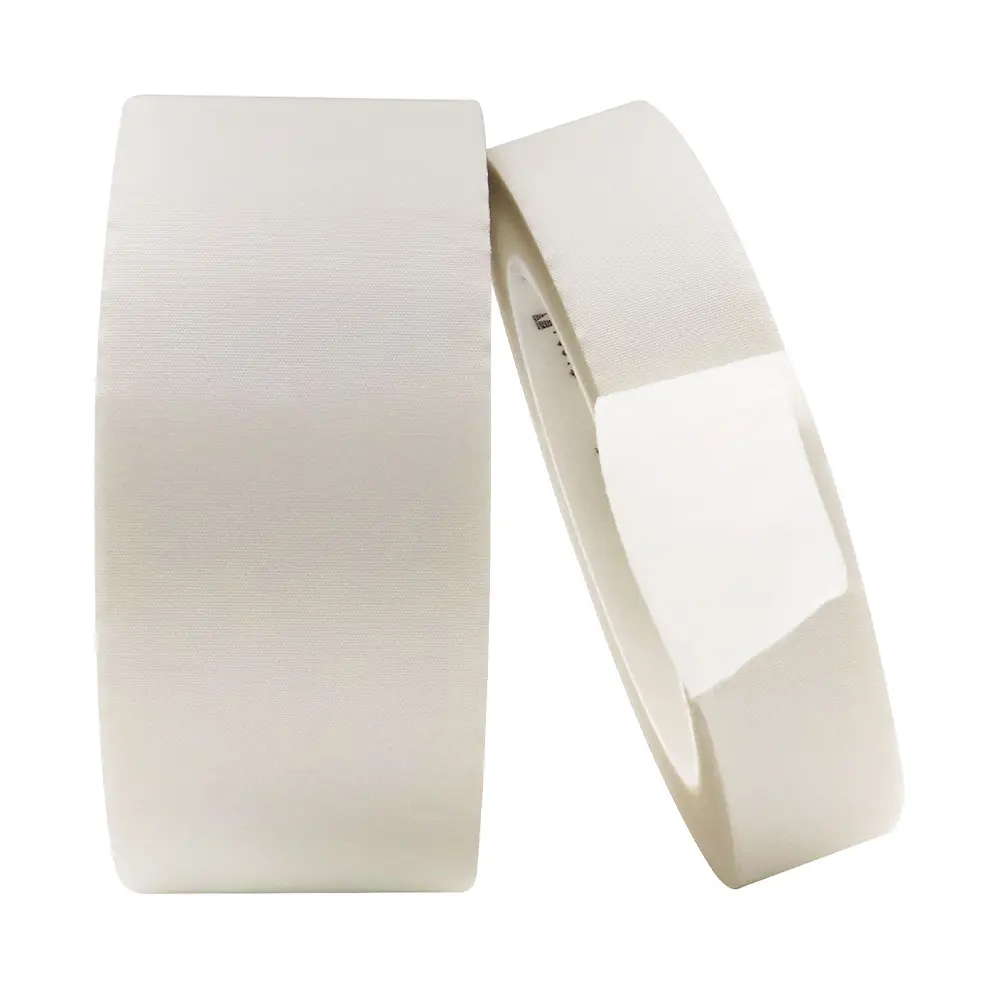

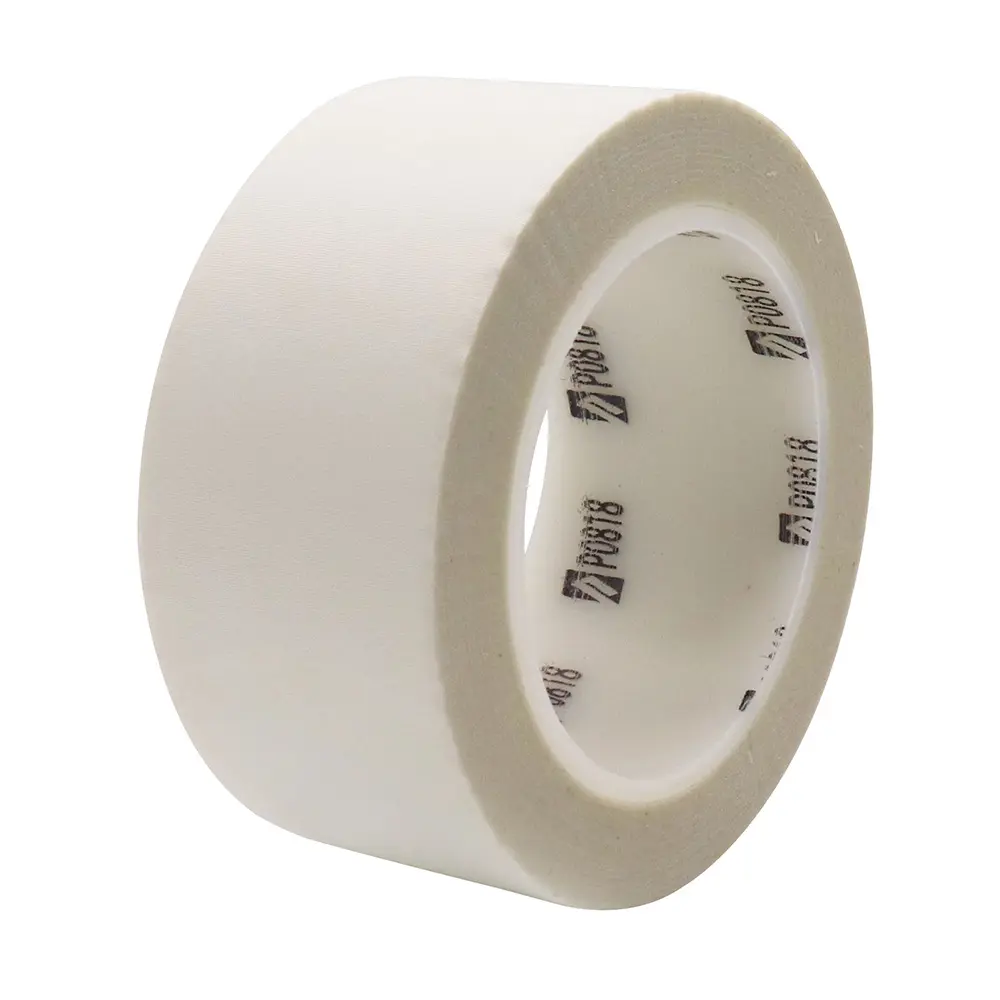

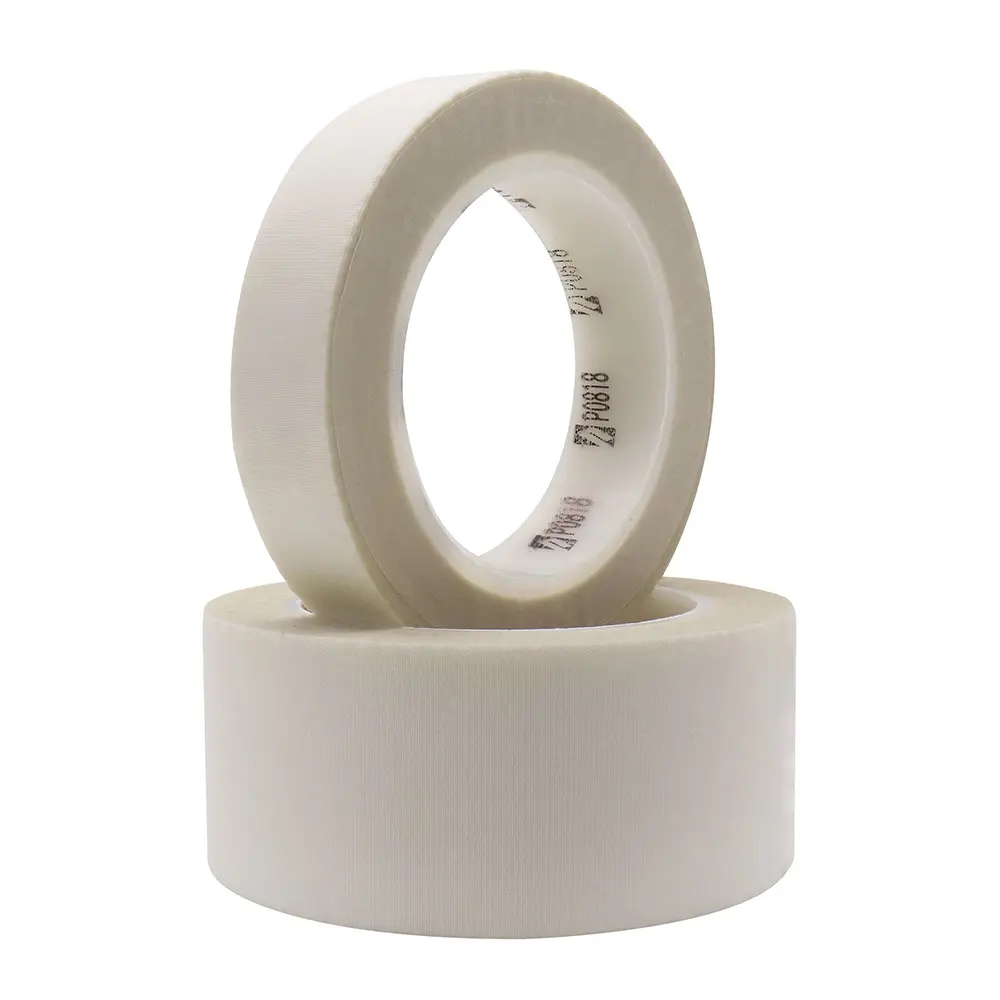

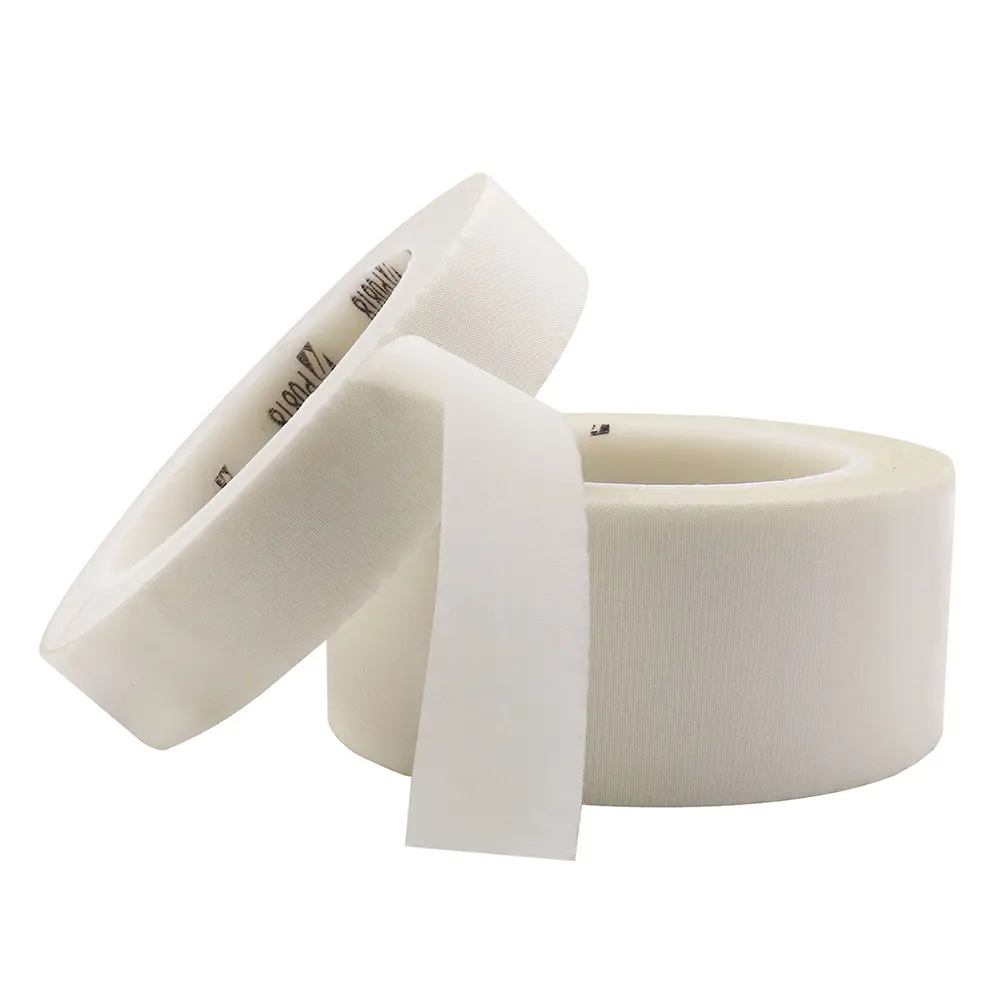

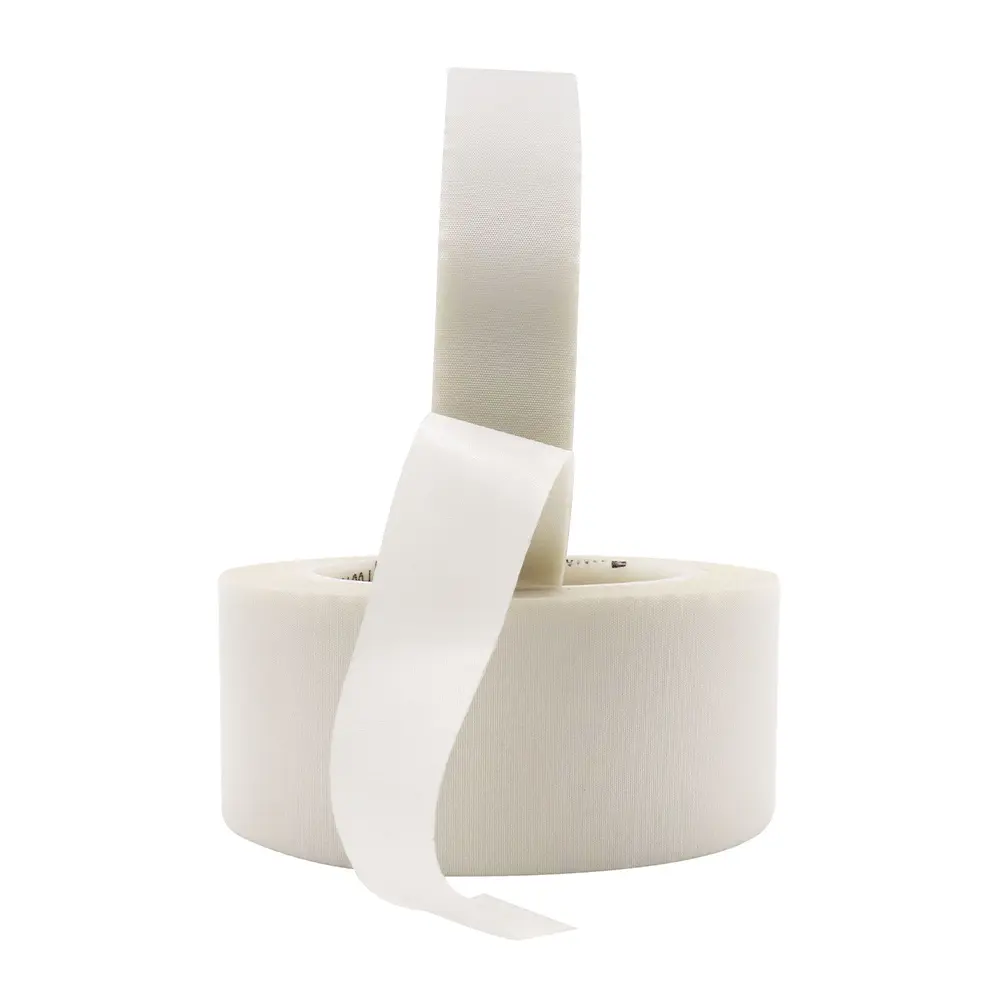

Glass Cloth Tape, also known as Fiberglass Cloth Tape, is manufactured from high-strength woven fiberglass cloth coated with a high-performance adhesive such as silicone, acrylic, or rubber adhesive.It offers excellent heat resistance, electrical insulation, flame retardancy, and mechanical strength, making it an ideal solution for demanding industrial and electrical applications.

Color: White
Thickness: From 0.18mm to 0.28mm
Backing: Fiberglass cloth
Adhesive: Silicone、Acrylic
Cutting: Any width
Temperature resistance(℃): 260
Samples: Free
Notice: Not for retail sale

Free sampling

Glass Cloth Tape Data Sheet

Technical Parameters	P0801	P0802	P0818	P0820	P0823	P0828
Color	White
Total Thickness [mm]	0.18	0.18	0.18	0.2	0.23	0.28
Total Thickness (μm)	180	180	180	200	230	280
Backing Thickness [mm]	0.13	0.13	0.13	0.13	0.13	0.13
Backing	Fiberglass cloth	Fiberglass cloth	Fiberglass cloth	Fiberglass cloth	Fiberglass cloth	Fiberglass cloth
Adhesive	Silicone	Acrylic	Silicone	Silicone	Silicone	Silicone
180° Peel Strength [N/inch]	9	5	6	5.5	A：10 B：10	A：11 B：3
Tensile Strength[kg/25mm]	380	250	300	280	400	340
Elongation At Break[%]	5	5	5.7	4	7	4
Breakdown Voltage[KV]	3	2	3	3	3	3
Insulation Resistance[Ω]	>1×1012	>1×1012	>1×1012	>1×1012	>1×1012	>1×1012
Long-Term Temperature Resistance [°C]	200	200	200	200	200	200
Short-Term Temperature Resistance [°C]	260	260	260	260	260	260

Silicone Adhesive Fiberglass cloth

Fiberglass Cloth Tape Features

Excellent Heat Resistance:Designed for continuous use in high-temperature environments and thermal cycling conditions.
Superior Electrical Insulation:High dielectric strength, suitable for electrical and electronic insulation applications.
High Mechanical Strength:Woven fiberglass cloth provides strong tensile strength, tear resistance, and dimensional stability.
Flame Retardant & Chemical Resistant:Naturally flame resistant and resistant to aging, moisture, and most chemicals.
Reliable Adhesion:Available with different adhesive systems to ensure stable bonding on various surfaces under harsh conditions.

Fiberglass Cloth Tape Applications

Electrical & Electronics:Motor and transformer insulation, wire harness wrapping, PCB and component fixing.
Industrial Manufacturing:High-temperature equipment protection, thermal insulation, mechanical reinforcement.
Automotive & New Energy:EV battery insulation, automotive wire harness protection, heat management systems.
Aerospace & High-End Industries:Applications requiring heat resistance, flame retardancy, and structural reinforcement.

Icon Fiberglass Cloth Tape TDS

Download

Coating jumbo rolls
Slitting or cutting to small rolls
Rewinding liner
Cutting width required by the customers
Die-cutting to the drawings of the customers
Laminate other materials
Free samples based on freight collect

Fiberglass Cloth Tape

Fiberglass Cloth Tape is made from woven fiberglass cloth with heat-resistant adhesive, offering excellent mechanical strength, electrical insulation, and thermal stability. It can withstand continuous temperatures up to 260°C, making it suitable for electrical insulation, reinforcement, and protection in industrial environments.

Glass Cloth Tape

Glass Cloth Tape features a high-strength glass fabric backing with flame-retardant and heat-resistant properties. It provides reliable insulation and surface protection under temperatures up to 260°C, and is commonly used in motors, transformers, and high-temperature equipment.

Silicone Glass Cloth Tape

Silicone Glass Cloth Tape uses a silicone adhesive combined with fiberglass cloth, allowing stable performance from -50°C to 260°C, with short-term exposure up to 300°C. It offers excellent flexibility, heat resistance, and electrical insulation, ideal for electronics, aerospace, and high-temperature applications.

Acrylic Glass Cloth Tape

Acrylic Glass Cloth Tape is coated with acrylic adhesive, providing strong adhesion, good aging resistance, and stable insulation performance at temperatures up to 180°C. It is widely used for general electrical insulation, component fixing, and industrial protection.

High Temperature Fiberglass Tape

High Temperature Fiberglass Tape is designed for thermal protection and insulation in extreme heat conditions, withstanding continuous temperatures up to 260°C. It offers low thermal conductivity, high tensile strength, and flame resistance for use on hot surfaces and heating equipment.

Heat Resistant Glass Cloth Tape

Heat Resistant Glass Cloth Tape delivers durable performance under prolonged heat exposure up to 260°C, combining flame retardancy and mechanical stability. It is used for heat shielding, insulation, and protection in high-temperature industrial and electrical environments.

Electrical Grade Fiberglass Tape

Electrical Grade Fiberglass Tape provides high dielectric strength and stable insulation performance at operating temperatures between 200–260°C. It is specifically developed for electrical applications such as motor winding, transformer insulation, and coil wrapping.

Industrial Fiberglass Tape

Industrial Fiberglass Tape offers high strength, abrasion resistance, and chemical stability for demanding industrial conditions. With heat resistance up to 260°C, it is used for reinforcement, insulation, and protection of machinery, equipment, and pipelines.

Thermal Insulation Fiberglass Tape

Thermal Insulation Fiberglass Tape is designed to reduce heat transfer and protect components in high-temperature environments up to 260°C. It provides effective thermal insulation, flame resistance, and structural stability for insulation systems and hot pipelines.

Flame Retardant Fiberglass Tape

Flame Retardant Fiberglass Tape is manufactured from non-combustible fiberglass cloth, offering self-extinguishing properties and heat resistance up to 260°C. It is suitable for fire protection, electrical safety, and applications requiring enhanced flame resistance.

Electrical Insulation Fiberglass Tape

Electrical Insulation Fiberglass Tape delivers excellent dielectric performance and heat resistance up to 260°C, ensuring reliable insulation and protection for wires, cables, motors, and transformers in electrical systems.

Fire Resistant Glass Cloth Tape

Fire Resistant Glass Cloth Tape provides reliable protection against flame and heat exposure, maintaining structural integrity at temperatures up to 260°C. It is commonly used in fire barriers, electrical insulation, and high-risk thermal protection areas.

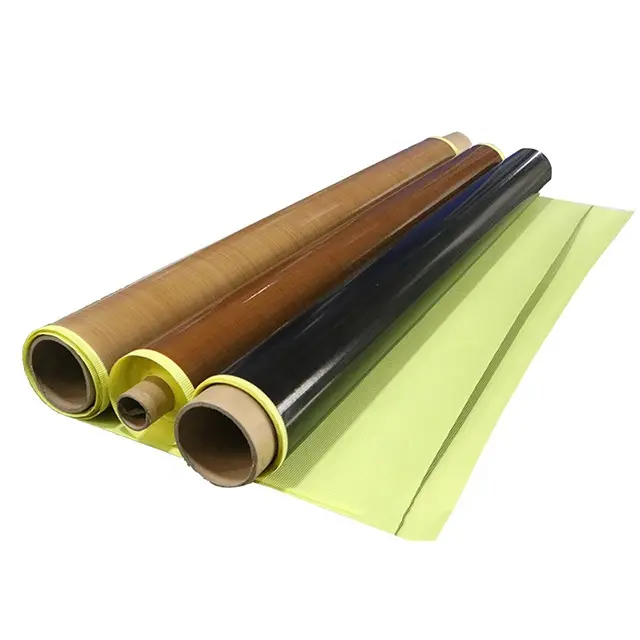

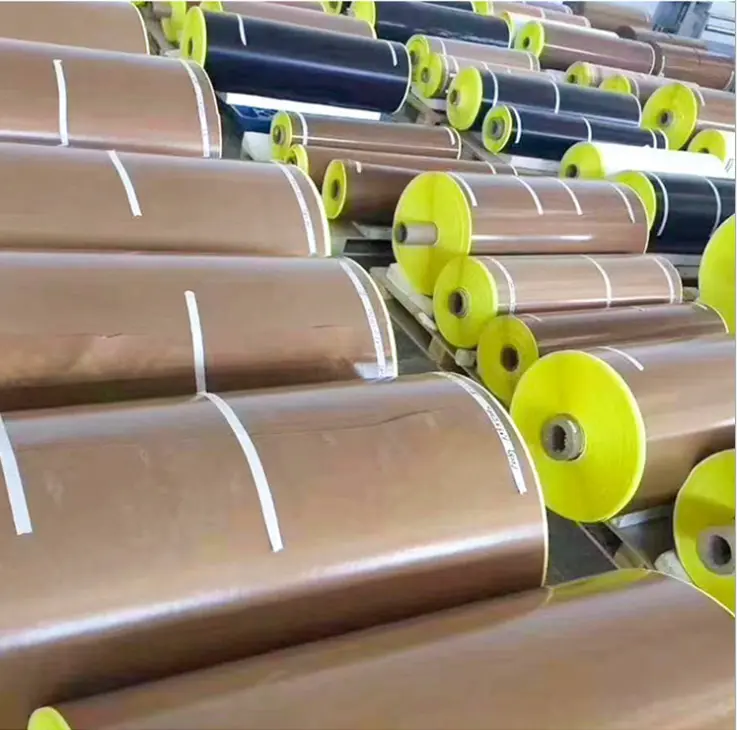

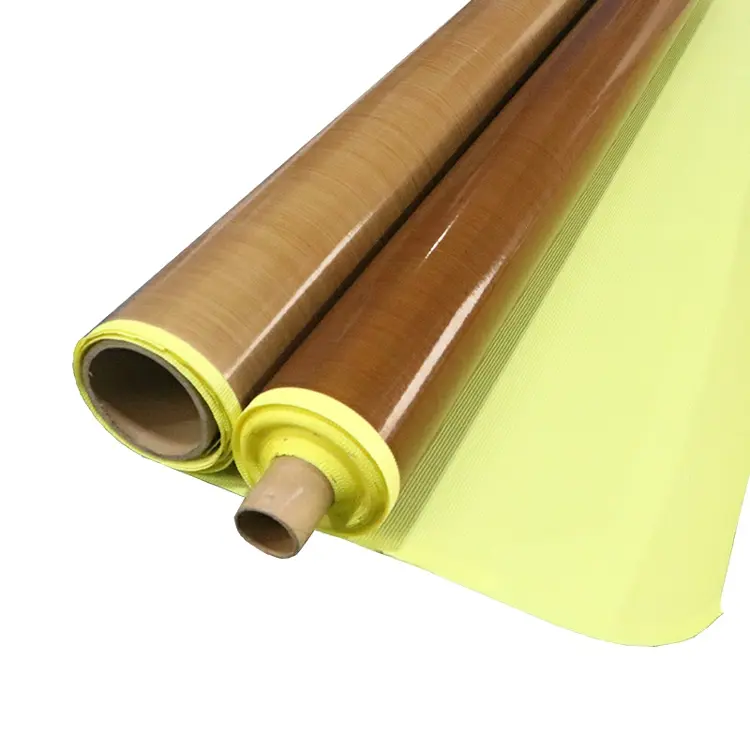

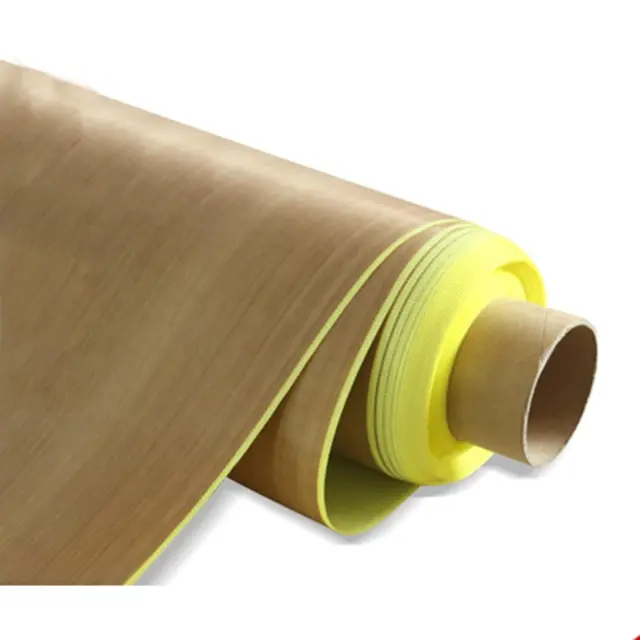

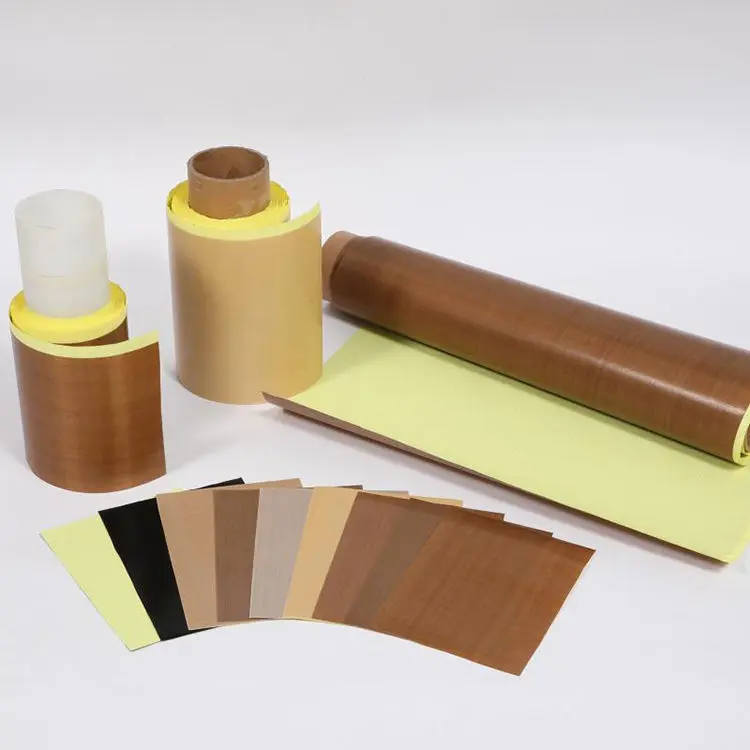

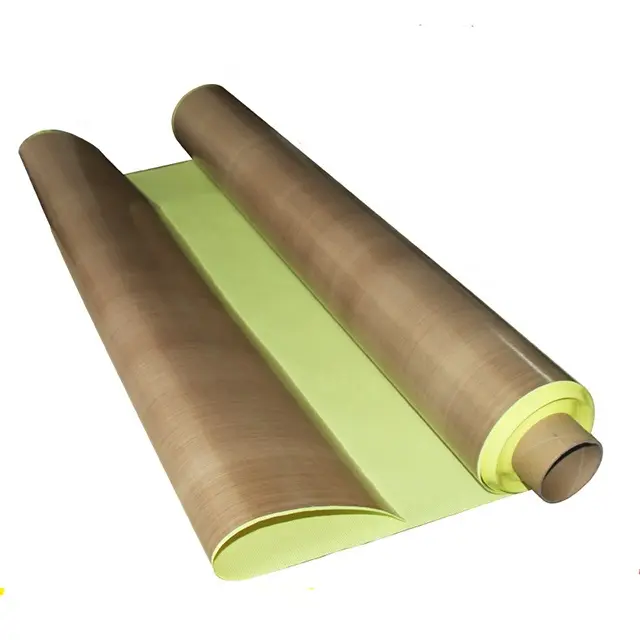

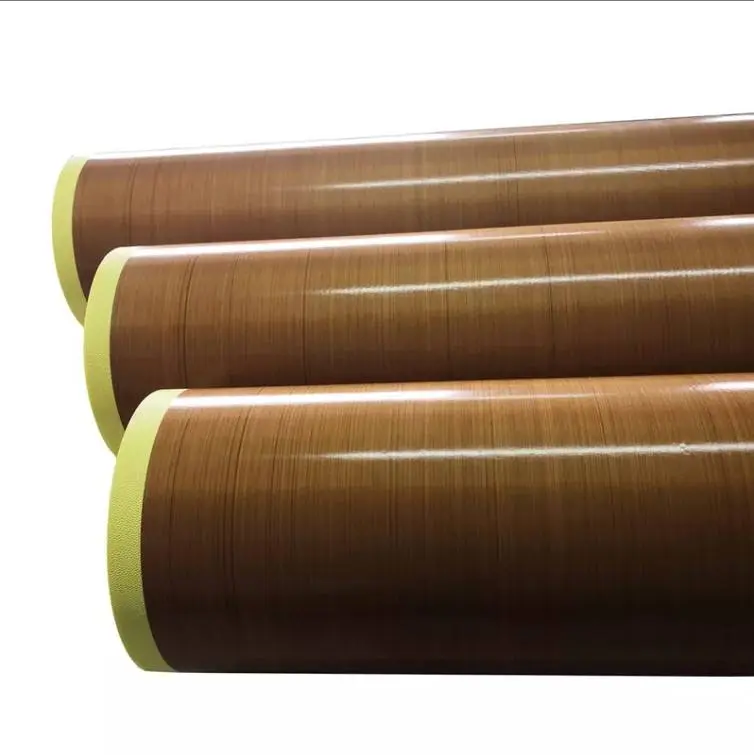

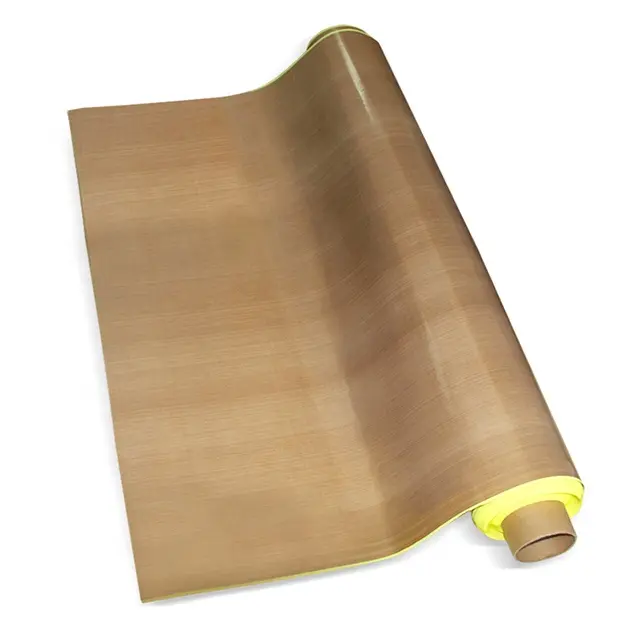

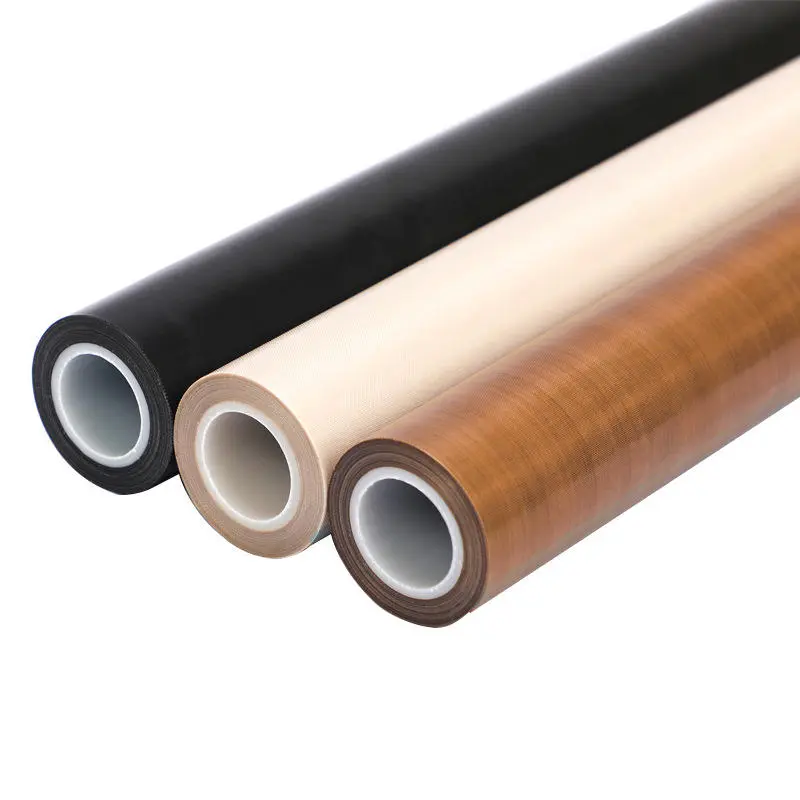

PTFE Tape is manufactured from polytetrafluoroethylene film with adhesive backing, offering excellent heat resistance up to 260°C, non-stick surface performance, and low friction characteristics. It provides outstanding chemical resistance, electrical insulation, and dimensional stability, even under harsh industrial conditions. PTFE Tape is widely used for surface protection, release applications, insulation, and wear reduction in machinery, electronics, and high-temperature processing environments.

Color: Brown/Black/creamy-white
Thickness: From 0.13mm to 0.25mm
Backing: Teflon Fiberglass Cloth,PTFE Film
Adhesive: Silicone
Cutting: Any width
Temperature resistance(℃): From -70 to 300
Samples: Free
Notice: Not for retail sale

Free sampling

High Temperature PTFE Tape Data Sheet

Technical Parameters	P0213	P0218	P0225	P0230	P0208P	P0213P	P0218P	P0225P
Color	Brown, Black, creamy-white,Grey
Total Thickness [mm]	0.13	0.18	0.25	0.3	0.08	0.13	0.18	0.25
Backing Thickness [mm]	0.08	0.13	0.18	0.25	0.05	0.08	0.13	0.18
Backing	PTFE Fiberglass Cloth	PTFE Fiberglass Cloth	PTFE Fiberglass Cloth	PTFE Fiberglass Cloth	PTFE Film	PTFE Film	PTFE Film	PTFE Film
Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
180° Peel Strength [N/inch]	21	22	24	24	23	24	24	24
Tensile Strength [kg/25mm]	900	1300	1950	2250	900	1250	1650	2350
Long-Term Temperature Resistance [°C]	260	260	260	260	260	260	260	260
Short-Term Temperature Resistance [°C]	300	300	300	300	300	300	300	300
Temperature resistance[°C]	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260	-73/260

Silicone Adhesive PTFE Film or PTFE Fiberglass Cloth

Heat Resistant PTFE Tape Features

High Temperature Resistance,Maintains stable performance under continuous temperatures up to 260°C, suitable for high-heat industrial environments.
Excellent Non-Stick Surface,Low surface energy prevents materials from adhering during heat sealing, molding, and processing.
Low Friction & Wear Resistance,Reduces friction and mechanical wear on moving or contact surfaces.
Outstanding Chemical Resistance,Resistant to most chemicals, solvents, and acids, ensuring durability in harsh conditions.
Good Electrical Insulation,Provides reliable dielectric properties for electrical and electronic applications.
Dimensional Stability,Retains shape and performance under thermal cycling and prolonged heat exposure.

PTFE Film Tape Applications

Coating of various high-temperature rollers, heating rehabilitative, demoulding work.
Heat sealing of food, medicine and plastic bags.
It can be used for padding of chute, hopper, aviation mold, etc. It can also be applied to the drum of sizing machine, thermoplastic mold release and other industries. It can be used repeatedly and is easy to replace.
Suitable for other surface treatments that require anti-sticking, corrosion resistance and high temperature resistance.
Used in packaging, thermoplastic, composite, sealing heat sealing, electronic and electrical industries.

Icon PTFE Film Tape TDS

Download

Color: Amber
Thickness: From 0.02mm to 0.2mm
Backing: Polyimide
Adhesive: Silicone
Width: 3mm to 500mm
Length: 33m | 36yd
Core: 3in or 1.5in
Cutting: Any width
Temperature resistance(℃): From -73 to 280
Samples: Free

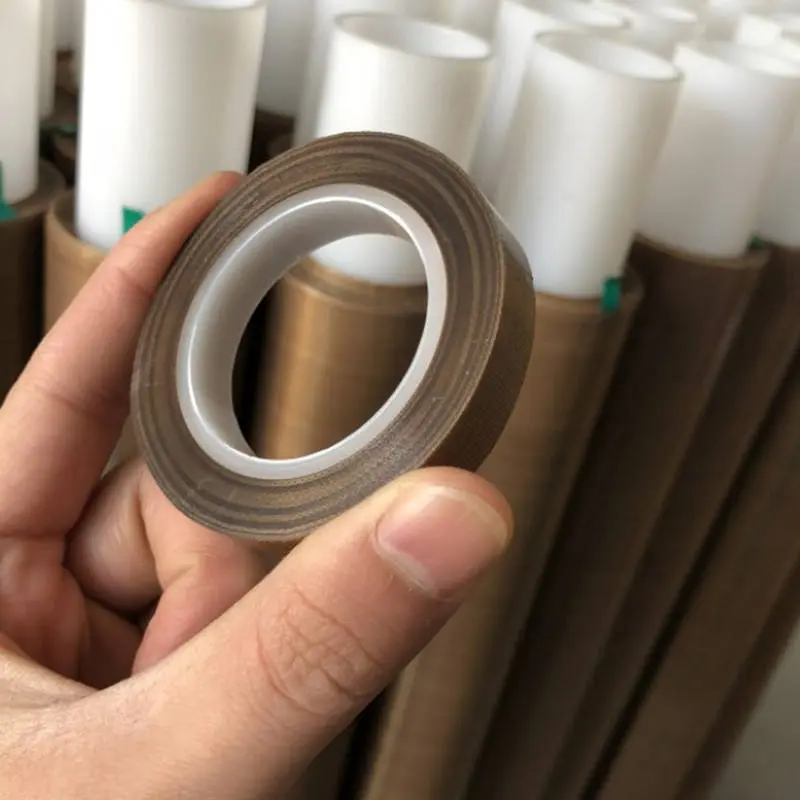

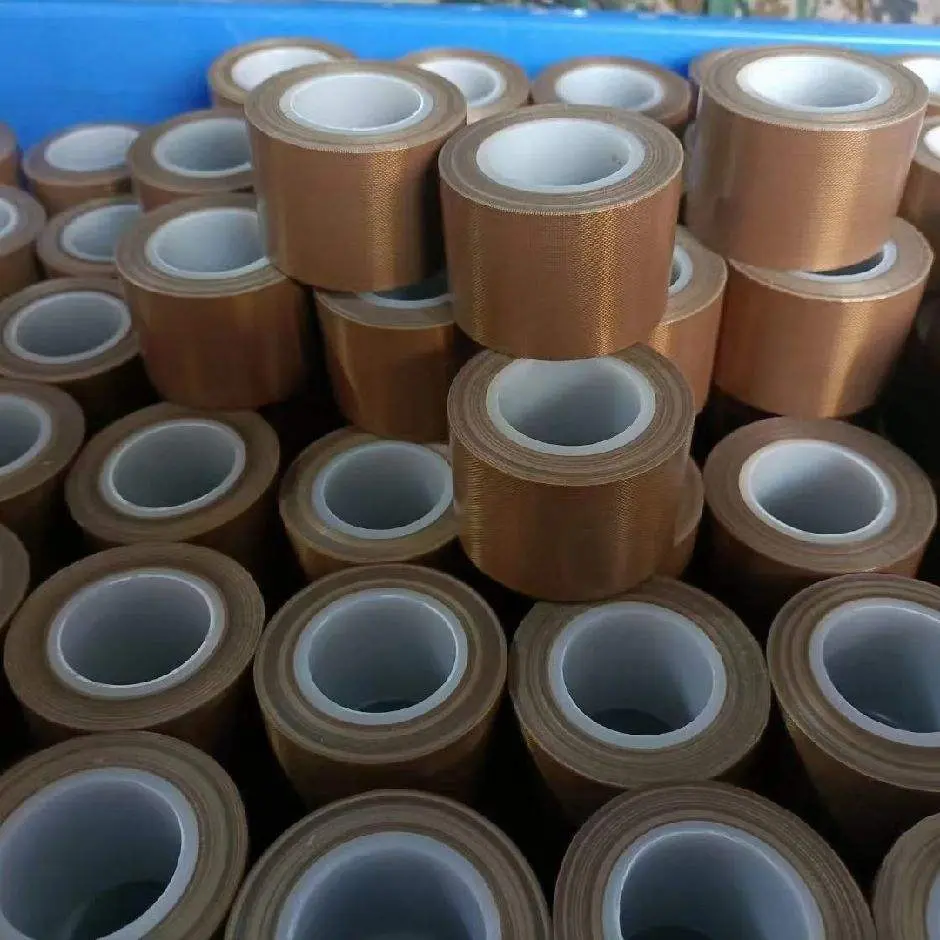

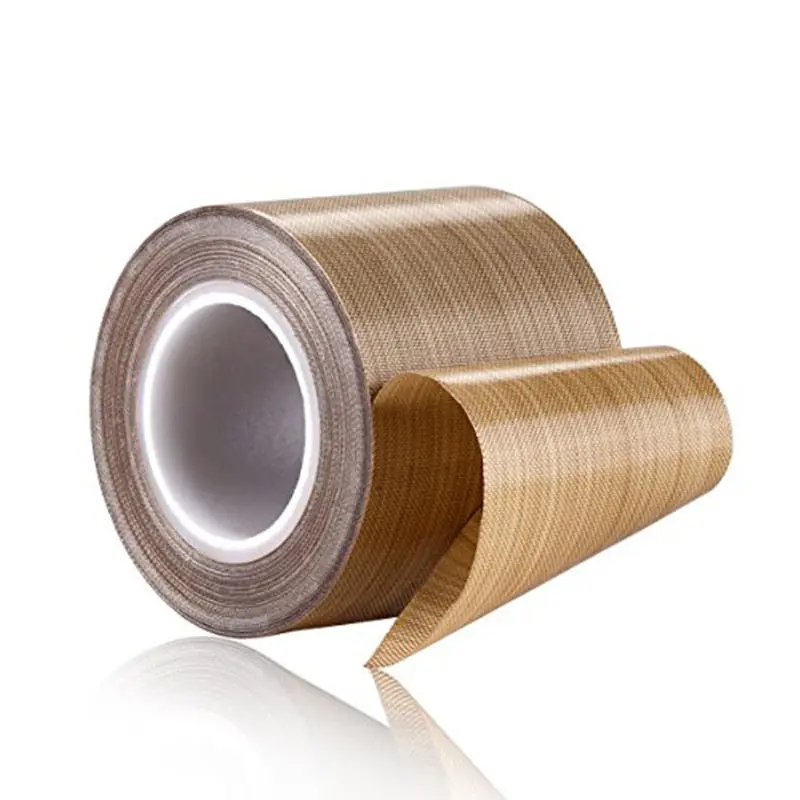

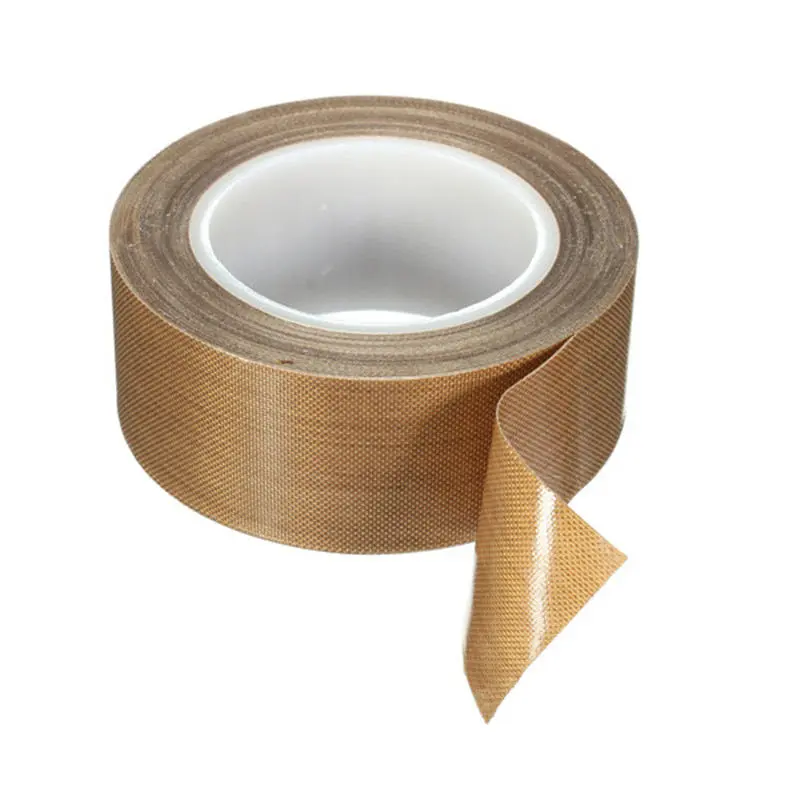

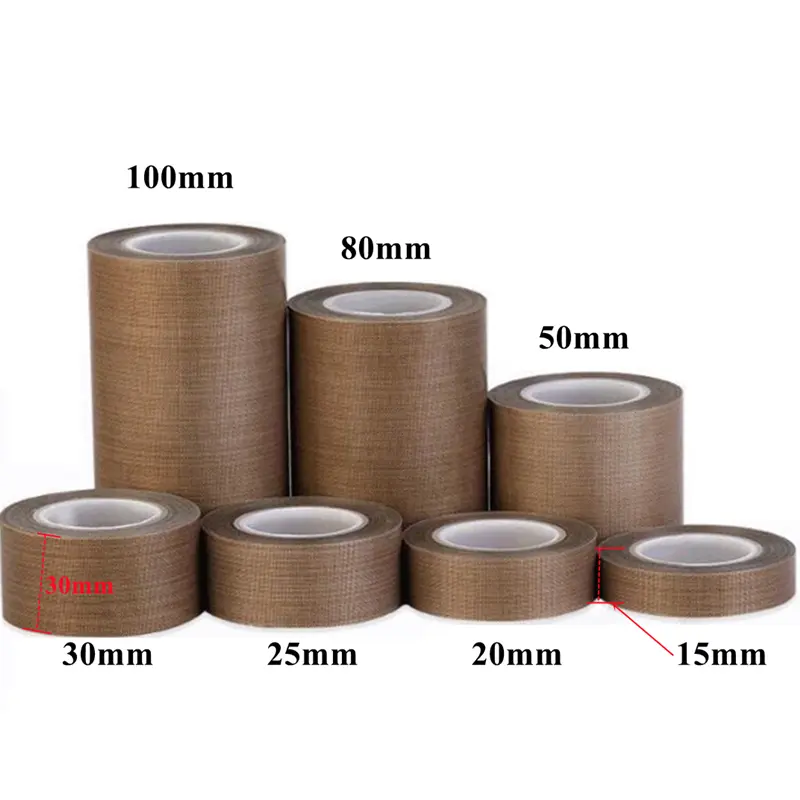

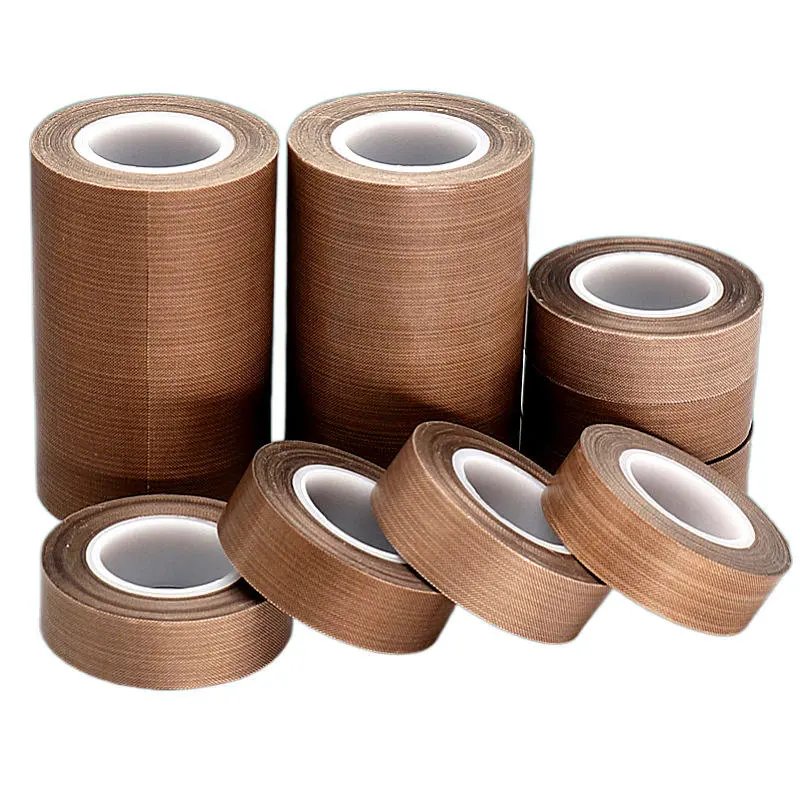

PTFE Tape

PTFE Tape is made from polytetrafluoroethylene film with adhesive backing, offering excellent heat resistance up to 260°C, low friction, and strong chemical resistance. It is used for surface protection, insulation, and release applications in industrial and mechanical environments.

Teflon Tape

Teflon Tape provides non-stick surface performance, thermal stability up to 260°C, and resistance to chemicals and wear. It is widely applied for machinery protection, heat processing, and industrial release applications.

High Temperature PTFE Tape

High Temperature PTFE Tape is designed for continuous operation in high-heat environments up to 260°C, maintaining dimensional stability and non-stick performance. It is used for heat sealing, molding, and thermal processing equipment.

Heat Resistant PTFE Tape

Heat Resistant PTFE Tape delivers reliable performance under prolonged heat exposure up to 260°C, providing surface protection, insulation, and release properties for industrial machinery and processing lines.

Non Stick PTFE Tape

Non Stick PTFE Tape features a low surface energy PTFE coating that prevents material adhesion at temperatures up to 260°C. It is commonly used on sealing jaws, rollers, and heat press equipment.

Low Friction PTFE Tape

Low Friction PTFE Tape reduces surface friction and wear, offering smooth sliding performance and heat resistance up to 260°C. It is suitable for moving parts, conveyors, and mechanical components.

Chemical Resistant PTFE Tape

Chemical Resistant PTFE Tape withstands exposure to most acids, solvents, and chemicals while maintaining performance up to 260°C. It is used in harsh industrial environments requiring chemical protection and durability.

Anti Adhesive PTFE Tape

Anti Adhesive PTFE Tape provides excellent release performance, preventing sticking during high-temperature processing up to 260°C. It is ideal for molding, laminating, and composite manufacturing applications.

PTFE Coated Adhesive Tape

PTFE Coated Adhesive Tape combines a PTFE-coated surface with pressure-sensitive adhesive, offering non-stick properties, heat resistance up to 260°C, and easy installation for industrial equipment protection.

Silicone Adhesive PTFE Tape

Silicone Adhesive PTFE Tape uses a silicone adhesive for high-temperature stability from -60°C to 260°C, allowing clean removal and consistent adhesion. It is commonly used in electronics, heat sealing, and release applications.

Electrical Grade PTFE Tape

Electrical Grade PTFE Tape provides excellent dielectric strength and electrical insulation while withstanding temperatures up to 260°C. It is suitable for electrical insulation, cable wrapping, and electronic component protection.

Industrial PTFE Tape

Industrial PTFE Tape is engineered for demanding industrial environments, offering heat resistance up to 260°C, abrasion resistance, and chemical stability. It is used for machinery protection, insulation, and surface treatment.

Die-cutting customer cases

For over 30 years, yousantape.com has been a trusted supplier of high-temperature and antistatic tape solutions. We specialize in custom die-cut polyimide tape parts, including dots, rings, strips, frames, and complex shapes. From micro-sized components to large-format insulation parts, YOUSAN maintains tight tolerances and clean edges to meet automation and high-precision assembly requirements.

send inquiry

Kapton Tape – Die-Cut Insulation Parts

Kapton Tape is die-cut into round dots and rectangular pieces for PCB insulation. Sizes range from 5mm dots to 50mm custom shapes, widely used to protect solder joints and heat-sensitive areas during reflow soldering.

Gold Finger Tape – Precision Die-Cut Masks

Gold Finger Tape is die-cut into narrow strips and edge masks for PCB gold fingers. Custom dimensions ensure precise coverage during electroplating, commonly used in graphics cards and memory modules.

Gold-Finger Masking Tape – Custom Die-Cut Shapes

This tape is die-cut into U-shapes and stepped profiles to fit complex gold finger layouts. It prevents oxidation and contamination in selective soldering processes for high-density PCBs.

Polyimide Tape – Die-Cut Battery Insulation

Polyimide Tape is die-cut into insulating pads and rings for lithium battery packs. Various thicknesses and sizes provide electrical insulation and heat resistance in power tools and EV batteries.

Polyimide Film Tape – FPC Reinforcement Die Cuts

Polyimide Film Tape is die-cut into thin strips and frames for flexible printed circuits. Ultra-precise cutting supports bending areas and connectors in smartphones and wearable devices.

PI Tape – Die-Cut Motor Insulation Components

PI Tape is die-cut into washers and slot liners for motors and transformers. Large-format and custom shapes ensure thermal stability in industrial electrical equipment.

Gold Finger Polyimide Film Tape – High-Accuracy Die Cuts

This tape is die-cut into micro-tolerance masks for fine-pitch gold fingers. It improves plating accuracy and yield in networking and communication PCBs.

High Temperature Polyimide Tape – Die-Cut Heat-Resistant Labels

High Temperature Polyimide Tape is die-cut into labels and covers used in powder coating and high-heat manufacturing environments, maintaining adhesion and shape under extreme temperatures.

Kapton Polyimide Film Tape – Die-Cut Aerospace Parts

Kapton Polyimide Film Tape is die-cut into complex insulation components for aerospace and automotive electronics, offering reliable performance under vibration and high-temperature conditions.

High Temperature Polyimide Tape Manufacture

get to know
us better

Shenzhen Yousan Technology Co., Ltd. was established in 1997. It is an innovative enterprise integrating R&D, production and sales. We have a professional R&D team for adhesives and precision coating technology, covering polymer synthesis, polymer rheology technology, high-performance film research, precision coating and high-precision die-cutting manufacturing, etc., providing customers with full-process adhesive tape application solutions.Yousan holds ISO 9001, IATF 16949, ISO 14001, and UL certifications, ensuring consistent quality, environmental compliance, and product safety. The company is headquartered in Shenzhen Special Economic Zone, the innovation capital of mainland China, with six major production bases. Today, our products are sold to more than 120 countries in Asia, Europe, America, Africa and Australia.

send inquiry

YOUSAN Tape Manufacturer

Years fo Experience

YouSan has 28 years of experience in tapes, films and die-cutting, and is an innovative enterprise integrating R&D, production and sales.

6 production bases

We have 6 factory production bases in Shenzhen, Huizhou, Xiamen and Zhejiang.

60,000

Factory Sqm

︎︎Operates in a 60,000+ square meter factory, equipped with 200+ coater production lines.

120

country

Exported to more than 120 countries around the world.

YOUSAN

Industries Served

YOUSAN delivers innovative application-enhancing solutions across a diverse array of industries, including appliance, automotive, electronics, building supply, signage, printing, transportation, moving and storage, medical, aerospace, and distribution.

Send inquiry

automotive industry

YOUSAN provides the automotive industry with double-sided tape solutions for exterior and interior trim, parts fixing, electronic and functional parts bonding, and sound insulation and vibration reduction applications.

building materials&construction

Double-sided tape is mainly used in construction for fixing glass curtain walls and decorative panels, interior decoration installation, sealing and fixing doors and windows, pasting sound insulation and heat insulation materials, and temporary construction applications.

Appliance Industry

YOUSAN Double-sided tape is used in home appliances to provide solutions for fixing exterior parts, positioning internal components, sound insulation and shock absorption, sealing and protection, etc.

Consumer Electronics

YOUSAN double-sided tape is mainly used in consumer electronics to provide solutions for screen bonding, module fixing, battery installation, heat dissipation and conductivity, waterproof sealing, etc.

Smart Healthcare

In the disinfection and packaging of medical devices and tools, comprehensivesolutions have been developed to meet the multi-faceted needs of customers.

New Energy Batteries

Applied in the manufacturing process of power batteries to improve productionprocesses, enhance safety, and ensure product reliability; compatible with robot-assisted automated processes, providing high-shear performance products fordirect bonding between battery cells, as well as bonding of mica sheets, aerogels,silicone pads,etc., between cells.

High Temperature Protection Tape Manufacturer

So what separates YOUSAN from everyone else?

At YOUSAN, We hold ISO 9001, IATF 16949, ISO 14001, and UL certifications, demonstrating our commitment to quality management, environmental responsibility, and industry compliance.we focus on delivering reliable high temperature tape and polyimide die-cut solutions for demanding industrial applications. Compared with standard tape suppliers, YOUSAN provides more precision, more customization, and more consistency.Material You Can Rely On、Precision Die-Cutting Expertise、Application-Oriented Solutions、Flexible Customization & Fast Response.Whether for prototypes or high-volume orders, we offer fast sampling, stable lead times, and flexible production capacity、Stable Quality, Professional Service. YOUSAN — Your Trusted Partner for High Temperature Tape Solutions.

Send inquiry

Why choose YOUSAN Tape

We strive for perfection, continuously improving product quality and efficiency, ensuring that we remain at the forefront of intense market competition.

High Quality

Experienced technical team and strict qualitycontrol system ensure top-notch products.

Customization

Support OEM ODM and product customization in various sizes and substrates.

Wide Product Range

Offers a wide range of double-sided adhesive tapes, single-sided adhesive tapes, and foam double-sided tapes for a variety of applications.

Global Presence

Products sold in over 120 countries spanning Asia, Europe, America, and Africa.

Competitive Pricing

Manufactured in the original factory, the product has a huge price advantage.

Advanced Equipment

Equipped with a variety of production equipment for coating, rolls, die-cutting, etc. for efficient production.

Reliable Partner

Dedicated to providing high quality products and service to foster long-term partnerships.

One-Stop Solution

Provide one-stop service from R&D, design, samples, to product production.

Factory service

YOUSAN has extensive processing capabilities and rich processing knowledge, focusing on providing high-quality tape ODM and OEM services for all walks of life, ensuring that your tape production is efficient and convenient. We have rich production experience and advanced technical equipment to produce a variety of tape products according to customers' specific needs and specifications, If you need to accurately cut materials that meet strict tolerances, YOUSAN is your ideal tape partner.

Production Line

Multiple coating, slitting and rewinding production lines, integrating adhesive making, semi-finished product coating, finished tape slitting and packaging, with high-quality production capacity and an annual production capacity of more than 100 million square meters

Equipment

The company has a complete tape production line, coating machines, slitting machines, rewinding machines, slitting machines, automatic cutting tables and other advanced equipment, which can achieve a closed loop from raw materials to tape production and save costs.

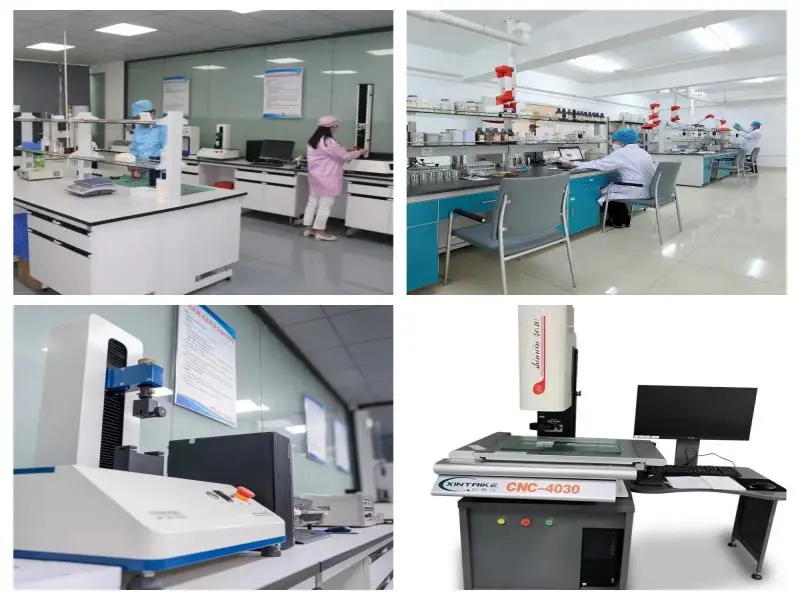

R&D-and-Quality

The company has a R&D team and a testing team. From production to finished product shipment, strict quality inspections must be carried out to protect customer interests.

Coating

YOUSAN has multiple coating lines that can produce various foam tapes with high quality and efficiency. The advanced equipment can accurately control the thickness and uniformity of the adhesive layer during the coating process.

Slitting

YOUSAN's multiple slitting capabilities across several machines produce the highest quality converted rolls for each of your diverse applications, whether you need ultra-thin 0.03" rolls or wide width rolls for laminating, we have the flexibility to slit a wide variety of materials regardless of their raw dimensions

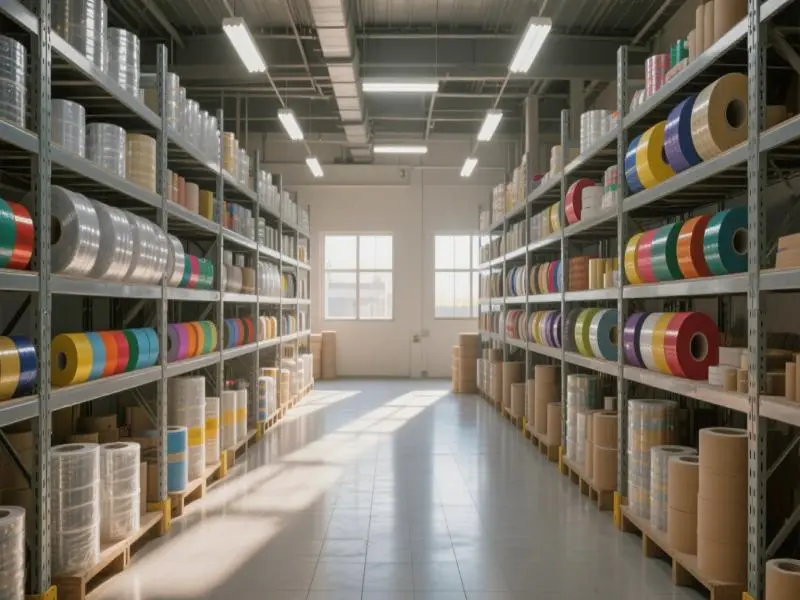

Warehouse

Proper inventory management is essential to cutting costs without compromising quality. Over or under stock can put a huge financial strain on a business. We work with our clients to provide tailored inventory solutions to meet their product needs

ISO 9001 | IATF 16949 | ISO 14001 | UL Certified

Send inquiry

For over 30 yearsYousantape.com has been a trusted supplier of high-temperature and protective tape solutions.

parters

high temperature tape products

Single-sided Kapton tape Data Sheet

Kapton polyimide tape Features

Kapton polyimide tape Applications

Kapton Tape TDS

Kapton Tape

Polyimide Tape

PI Tape

Polyimide Film Tape

Single Sided Polyimide Tape

Single Sided Kapton Tape

Gold Finger Tape

PCB Polyimide Tape

SMT Polyimide Tape

Wave Soldering Kapton Tape

Reflow Soldering Polyimide Tape

High Temp Kapton Tape

Kapton double-sided tape Data Sheet

Double-sided polyimide tape Features

Double-sided polyimide tape Applications

Kapton Tape TDS

PET high temperature tape Data Sheet

PET High Temperature Tape Features

PET High Temperature Tape Applications

Icon PET High Temperature Tape TDS

Glass Cloth Tape Data Sheet

Fiberglass Cloth Tape Features

Fiberglass Cloth Tape Applications

Icon Fiberglass Cloth Tape TDS

High Temperature PTFE Tape Data Sheet

Heat Resistant PTFE Tape Features

PTFE Film Tape Applications

Icon PTFE Film Tape TDS

Die-cutting customer cases

Kapton Tape – Die-Cut Insulation Parts

Gold Finger Tape – Precision Die-Cut Masks

Gold-Finger Masking Tape – Custom Die-Cut Shapes

Polyimide Tape – Die-Cut Battery Insulation

Polyimide Film Tape – FPC Reinforcement Die Cuts

PI Tape – Die-Cut Motor Insulation Components

Gold Finger Polyimide Film Tape – High-Accuracy Die Cuts

High Temperature Polyimide Tape – Die-Cut Heat-Resistant Labels

Kapton Polyimide Film Tape – Die-Cut Aerospace Parts

get to know us better

YOUSAN Tape Manufacturer

Years fo Experience

6 production bases

Factory Sqm

country

Industries Served

High Temperature Protection Tape Manufacturer

So what separates YOUSAN from everyone else?

Why choose YOUSAN Tape

High Quality

Customization

Wide Product Range

Global Presence

Competitive Pricing

Advanced Equipment

Reliable Partner

One-Stop Solution

Factory service

Production Line

Equipment

R&D-and-Quality

Coating

Slitting

Warehouse

For over 30 years
Yousantape.com has been a trusted supplier of high-temperature and protective tape solutions.

get to know
us better
